ZKRFM Trapezoidal Roof Tile Machine Trapezoidal Roll Forming Machine Trapezoid Roof Roll Form Machine

Short Description:

Weight 6000 kg

Warranty 2 years

Key Selling Points Easy to Operate

Feeding width Other

Machinery Test Report Provided

Video outgoing-inspection Provided

Marketing Type New Product 2023

Warranty of core components 1.5 years

Core ComponentsMotor, Bearing, Gear, Pump, PLC

Condition New

Use ROOF

Brand Name ZKRFM

Voltage 380V

Dimension(L*W*H) 1600*1400*1500mm

Support: Designed as requirements

Acceptance: Custormernization, OEM

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

Product descriptions from the supplier

Overview

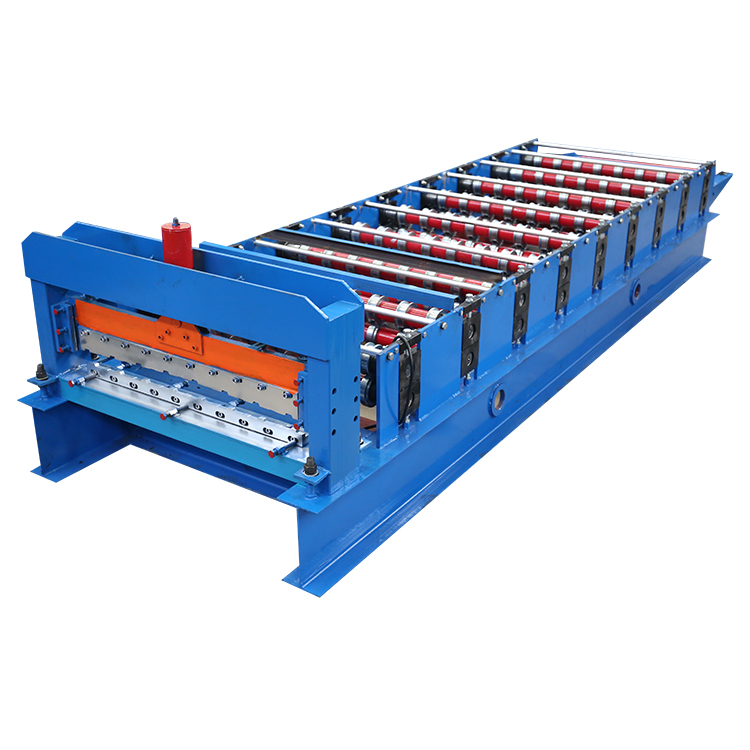

PRODUCT DESCRIPTION OF Trapezoidal Roof Tile Machine

The 910 IBR roll forming machine is a specialized equipment used for forming metal sheets into IBR (inverted box rib) profiles, commonly used in roofing and cladding applications. This machine features a series of rollers that gradually shape the metal sheets, creating the distinctive IBR pattern for optimal strength and water shedding properties. It offers efficiency and precision in producing high-quality IBR profiles with fast production speeds. The 910 IBR roll forming machine is essential for manufacturing roofing and cladding materials with consistent and precise IBR profiles, supporting the construction and architectural industries.

Formed Material	PPGI,GI,AI	Thickness:0.25-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	18rows(As your requirement)
Trapezoidal Roof Tile Machine	Diameter of shaft	70mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	one Chain transmission
	Dimension(LWH)	1600X1400X1500mm
	Weight	6T
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	5.5kw
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
Trapezoidal Roof Tile Machine	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	15 m / min	The speed depends on the shape of the tile and the thickness of the material.

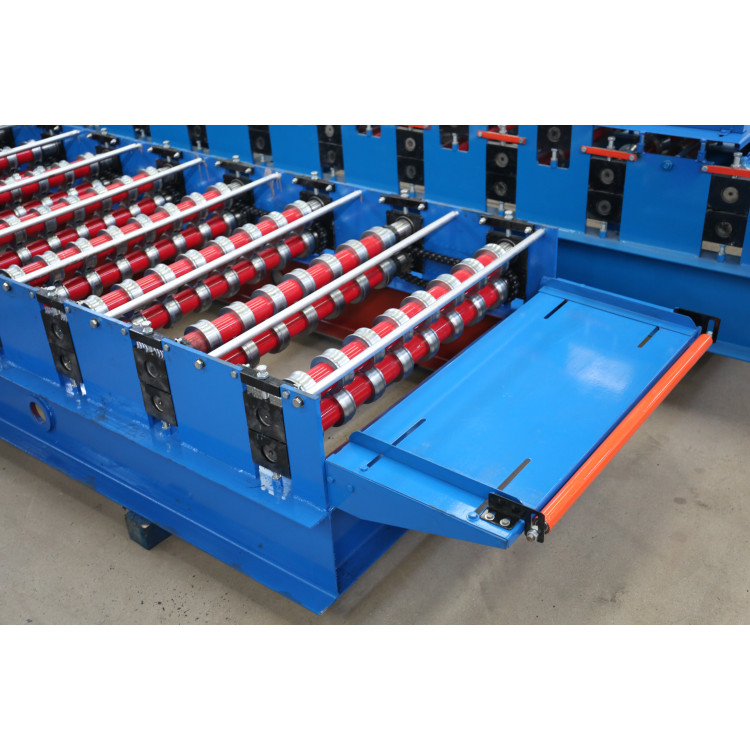

Trapezoidal Roof Tile Machine Square Tube Feed Platform

The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.

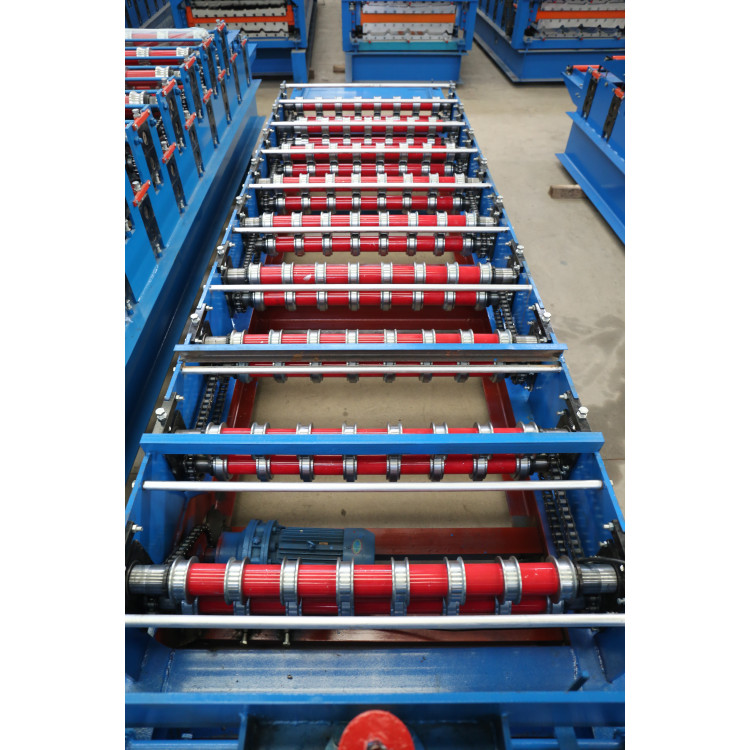

Trapezoidal Roof Tile Machine Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

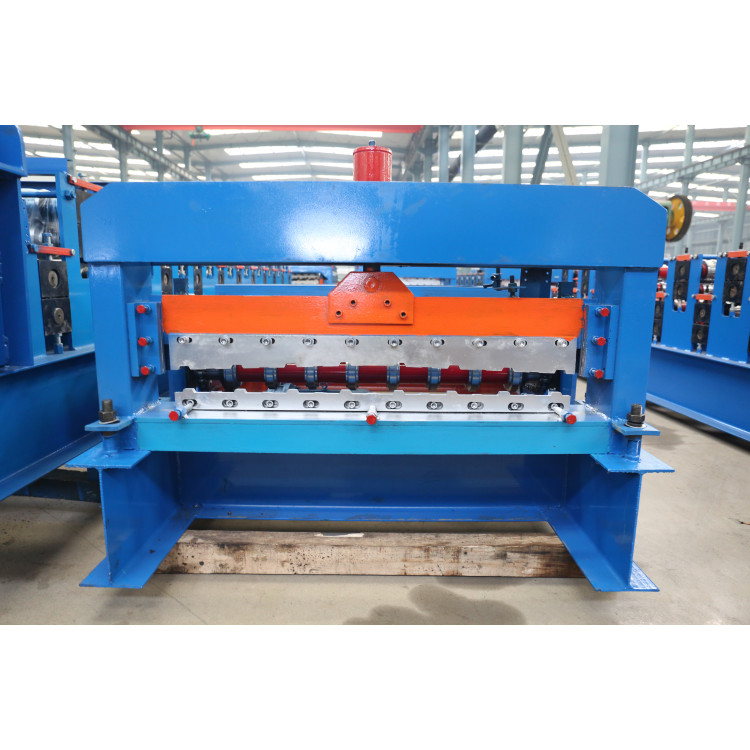

Vertical plate shear head

The Trapezoidal Roof Tile Machine Vertical Plate Shear Head is a crucial component of the roll forming machine, designed to precisely cut and trim metal sheets vertically, ensuring accurate and efficient shaping in the manufacturing process.

COMPANY INTRODUCTION

PRODUCT LINE of 700 Large Wave Glazed Tile Forming Machine

OUR CUSTOMERS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
