ZKRFM Steel Door Frame Making Machines

Short Description:

The door frame forming machine is used to process door frames, improve production efficiency, and realize automated production. It is suitable for the door and window manufacturing industry.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

PRODUCT DESCRIPTION

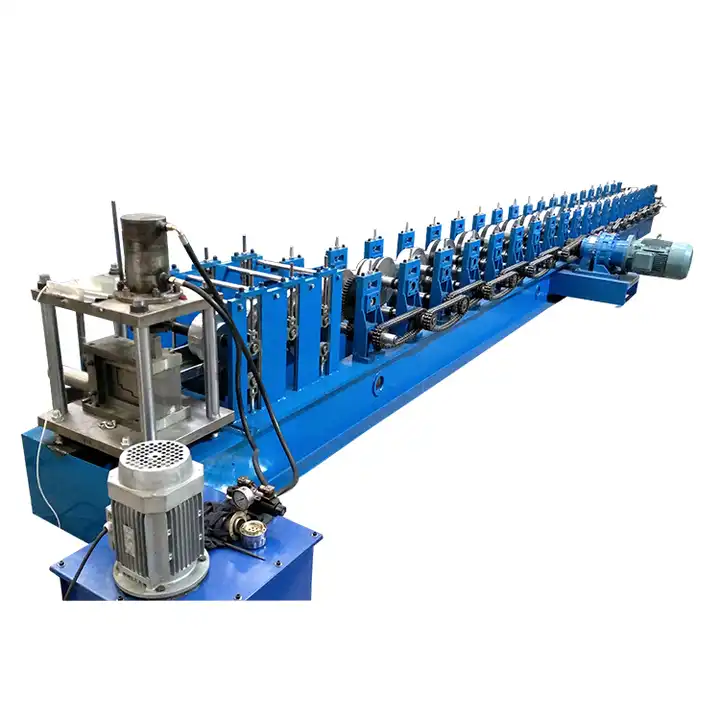

ZKRFM Steel Door Frame Making Machines (2)

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	11rows(As your requirement)
	Diameter of shaft	42mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Double Chain transmission
	Dimension(LWH)	4.5X1.2X1.3m
	Weight	3.5T
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	5.5KW
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	12-16m/min	The speed depends on the shape of the tile and the thickness of the material.

ZKRFM Steel Door Frame Making Machines (1)

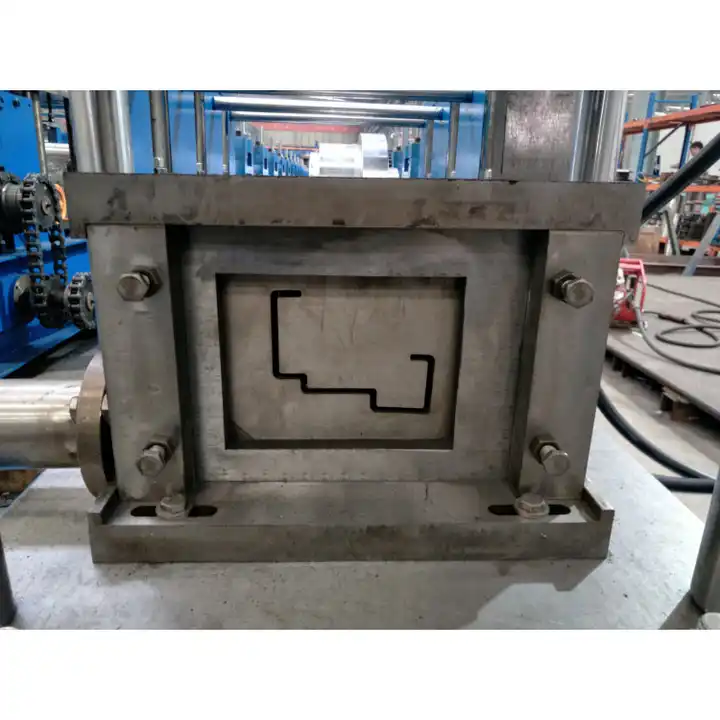

Vertical plate shear head

The Vertical Plate Shear Head is a crucial component of the roll forming machine, designed to precisely cut and trim metal sheets vertically, ensuring accurate and efficient shaping in the manufacturing process.

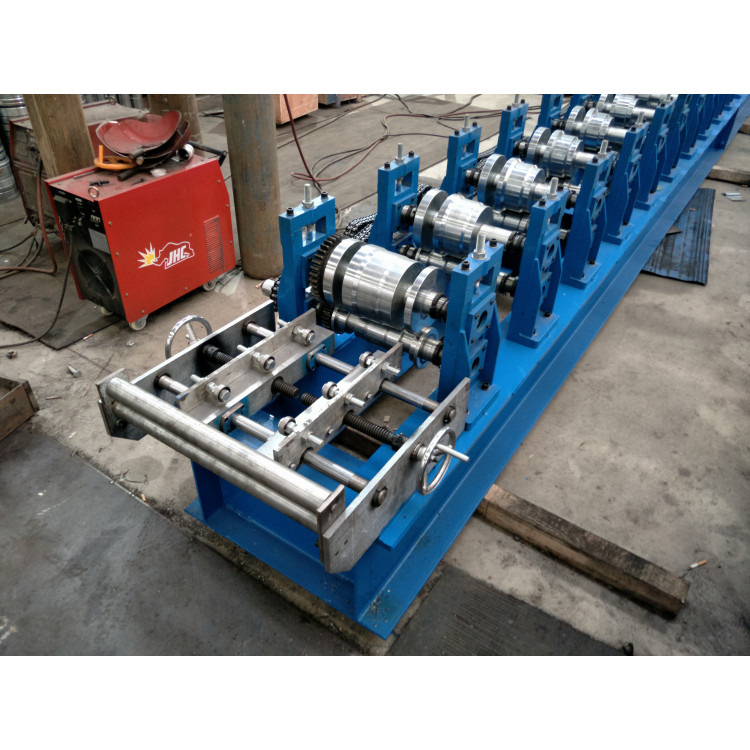

Hand wheel feed platform

The Hand Wheel Feed Platform is an essential component of our roll forming machine, allowing users precise control over material
feeding, ensuring accurate and efficient production processes.

ZKRFM Steel Door Frame Making Machines (5)

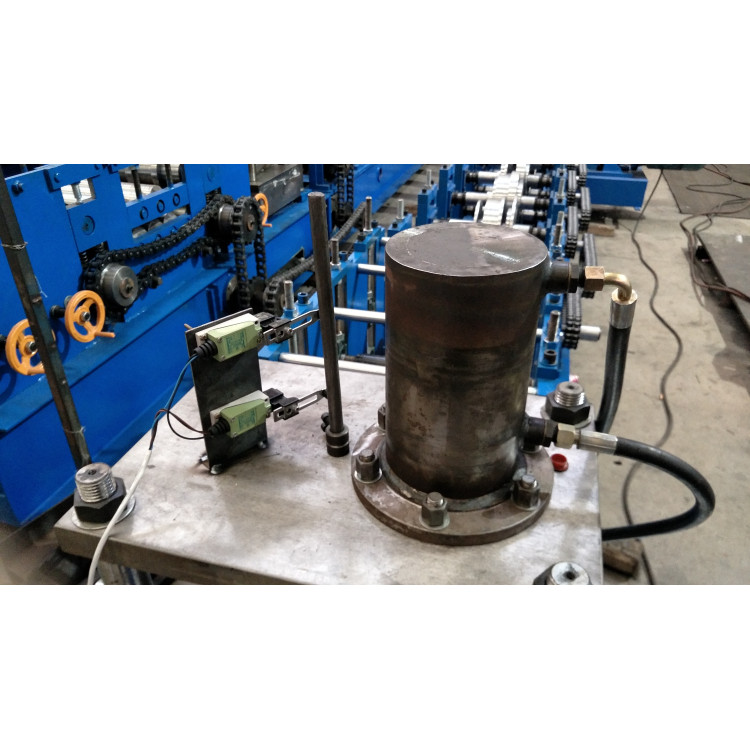

Electrohydraulic cut-off

The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.

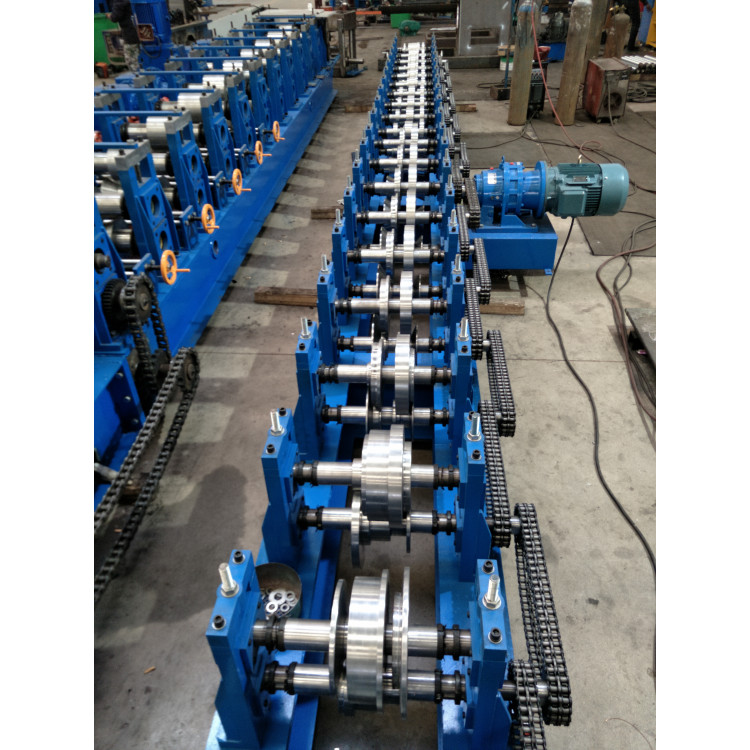

Chrome treated shaft and wheel

The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.

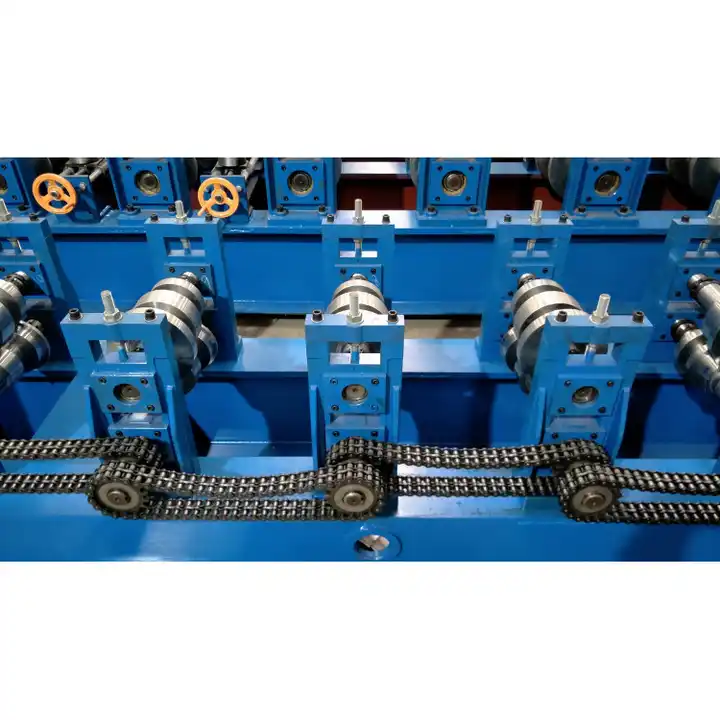

1 inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.

Travel switch

The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.
