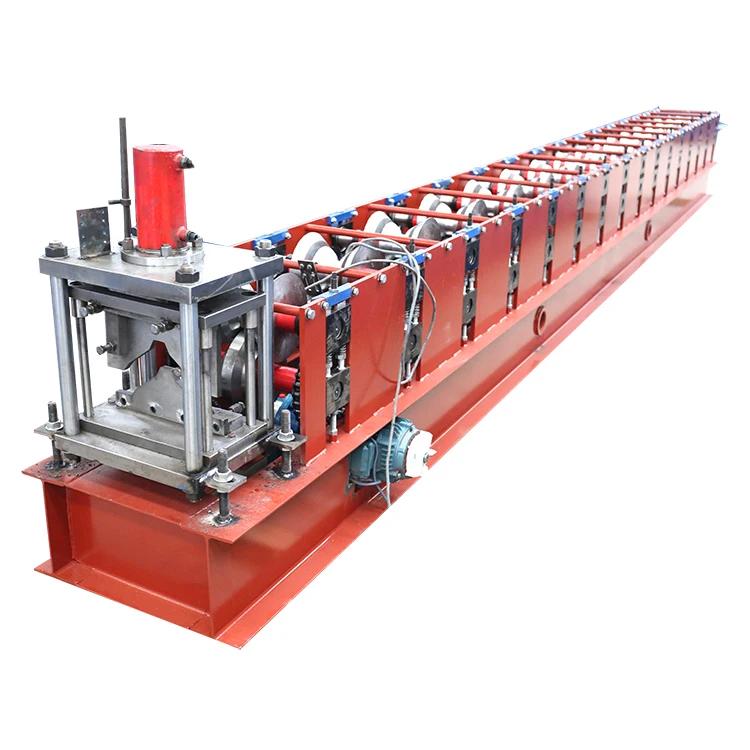

ZKRFM Roof Ridge Cap Machine Roof Ridge Cap Roll Forming Machine Ridge Cap Machine
Product descriptions from the supplier
Overview
PRODUCT DESCRIPTION
| Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm |
| Decoiler | Hydraulic decoiler | Manual decoiler(will give you as free) |
| Main body | Roller station | 13rows(As your requirement) |
| Diameter of shaft | 70mm solid shaft | |
| Material of rollers | 45# steel, hard chrome plated on the surface | |
| Machine body frame | 350 H steel | |
| Drive | Double Chain transmission | |
| Dimension(L*W*H) | 7.5*1.5*1.7 m | |
| Weight | 3T | |
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | 5.5KW |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 12-18m / min | The speed depends on the shape of the tile and the thickness of the material. |
 |
Square Tube Feed Platform
The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.
|
| Electrohydraulic cut-off
The Electrohydraulic cut-off on our roll forming machine efficiently and precisely trims metal sheets, ensuring clean and accurate cuts, enhancing production quality, and streamlining your manufacturing process.
|
 |
 |

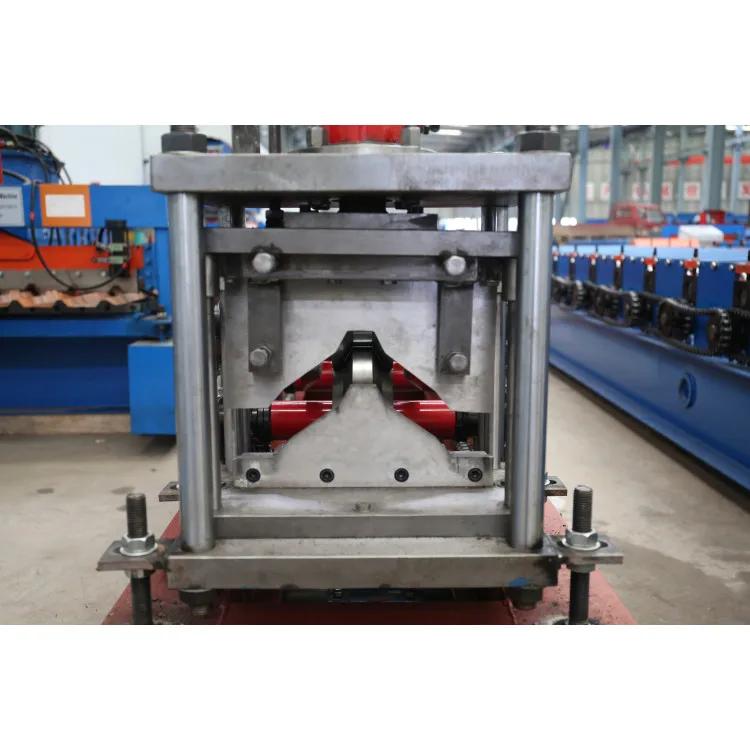

Vertical plate shear head The Vertical Plate Shear Head is a crucial component of the roll forming machine, designed to precisely cut and trim metal sheets vertically, ensuring accurate and efficient shaping in the manufacturing process.
|
COMPANY INTRODUCTION
PRODUCT LINE
OUR CUSTOMERS
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
