ZKRFM Light Steel Keel Roll Forming Machine Light Keel Roll Forming Machine Light Gauge Steel Framing Machine
Product descriptions from the supplier
Overview
PRODUCT DESCRIPTION OF light steel keel roll forming machine

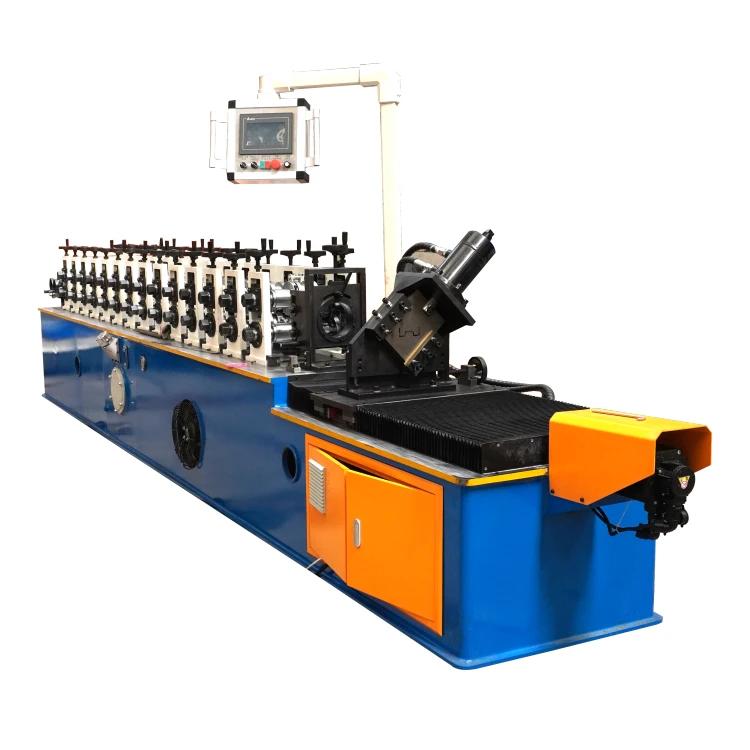

A light steel keel roll forming machine is a piece of equipment used to produce light steel keel profiles for construction and building purposes. It operates by feeding metal coils through a series of rollers that gradually shape the metal into the desired keel profile. This machine offers high precision and efficiency, enabling the production of consistent and high-quality steel keel components used in framing and support structures. The versatility of the machine allows for customization of keel profiles according to specific project requirements, making it an essential tool in the construction and manufacturing industry.
|
Material |
Raw Material | Galvanized steel |
| Thickness | 1-3 mm | |
|
Machine |

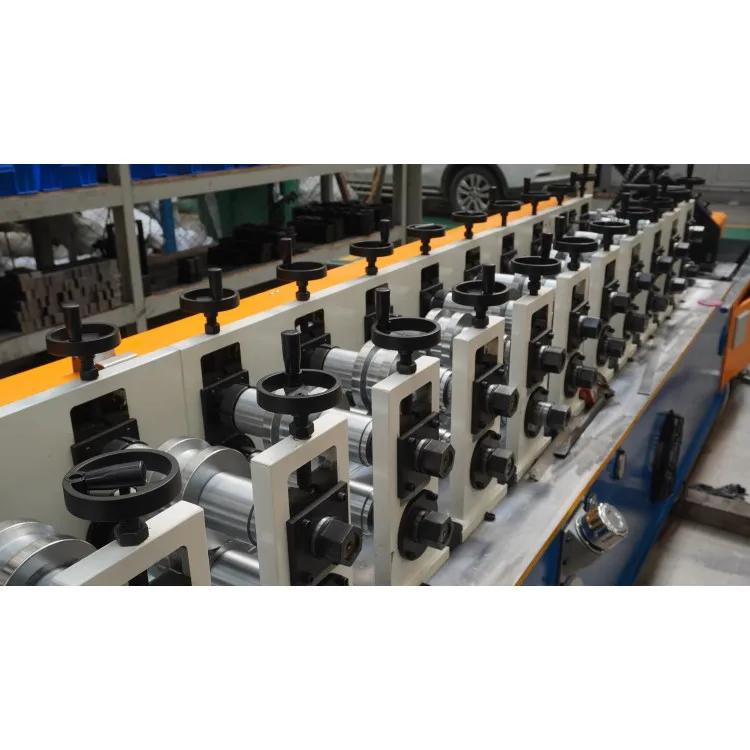

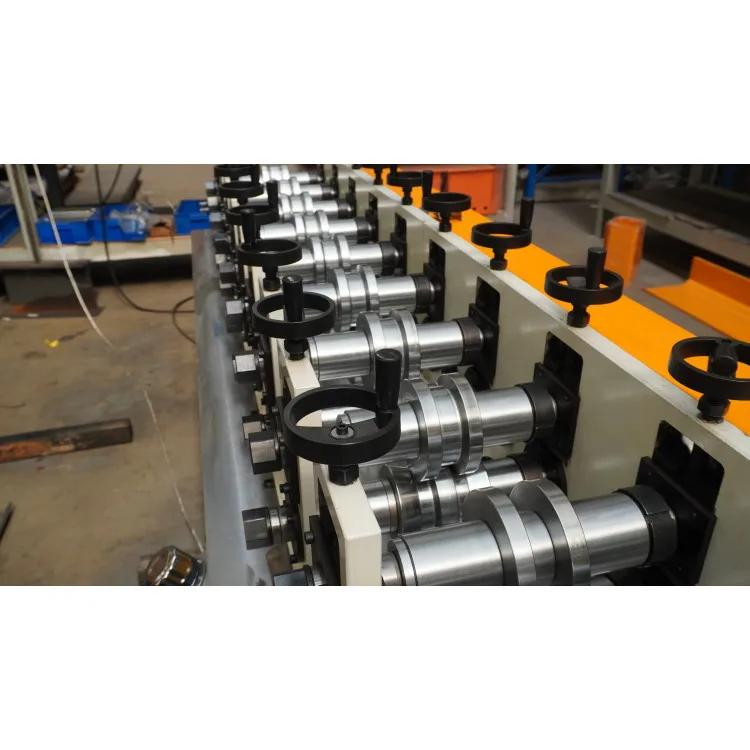

Roller Station | 9 |
| Shaft Material | 60 mm | |
| Shaft Material | 45# steel with 0.05mm chrome | |
| Roller Material | CR12 | |
| Machine Size | About 4.5*0.8*1.3m | |
| Machine Weight | About 1.8 ton | |
| Machine Color | As customer request | |
| Working Speed | 10-20 m/min | |
|

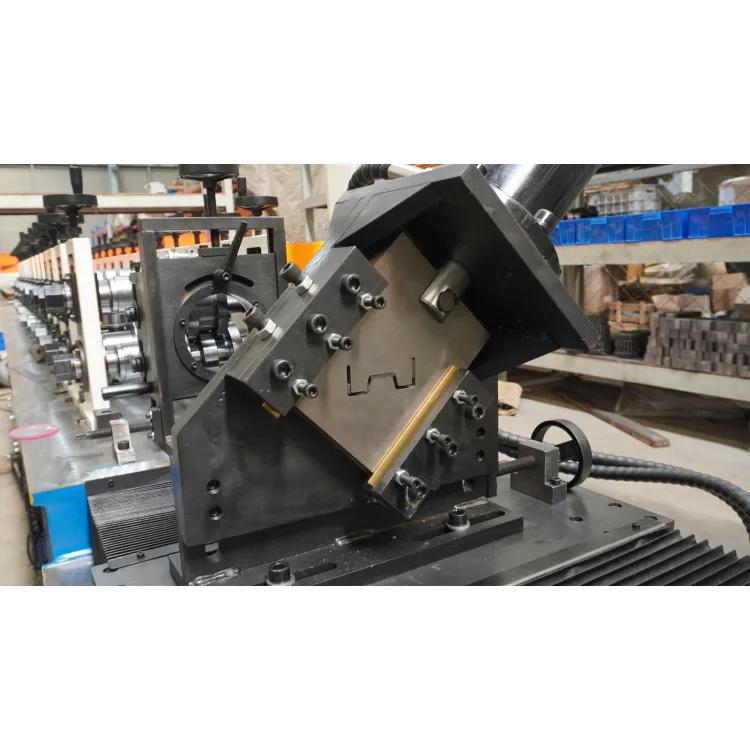

Cutter |
Hardness | 50-65 HRC |
| Cutting Tolerance | ± 1mm | |
| Material | CR12 | |
| Operate | Hydraulic cutting | |
|
Power |

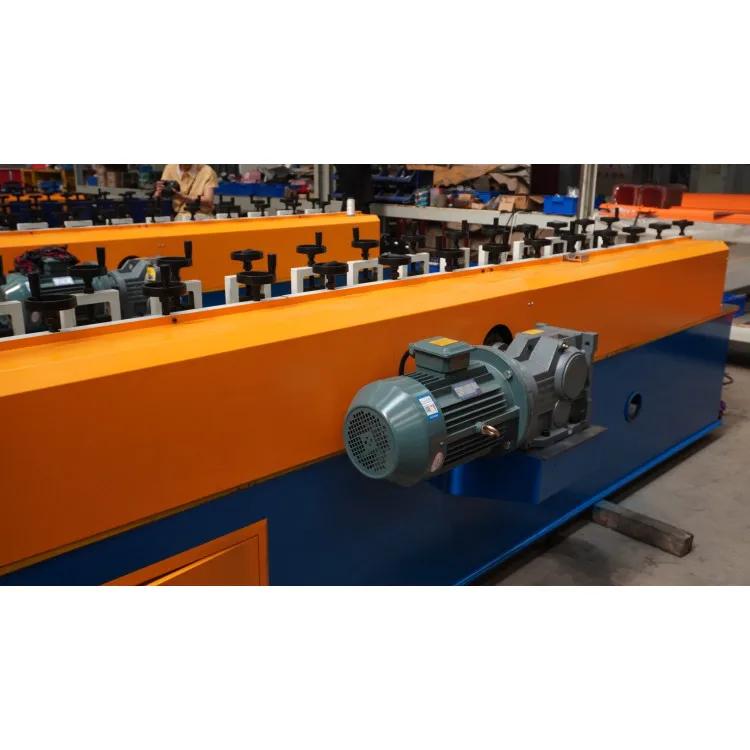

Driving Way | Chain 1 inch |
| Main Power | 5.5KW | |
| Pump Power | 4KW | |
| Voltage | 380v 50hz 3P, or Customize as Customer' request | |
|

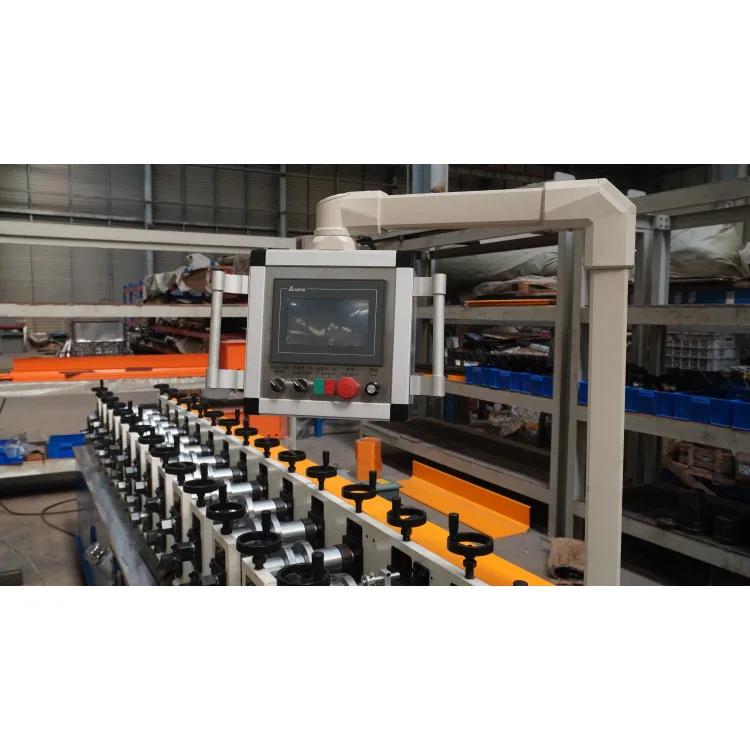

Control System |
PLC Brand | Delta made in Taiwan |
| Screen | Touchable Screen | |
| Language | Chinese, English or Add customer' need |
 |
 |
 |
 |
 |
 |
COMPANY INTRODUCTION OF light steel keel roll forming machine
PRODUCT LINE OF light steel keel roll forming machine
OUR CUSTOMERS OF light steel keel roll forming machine
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS OF light steel keel roll forming machine
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
