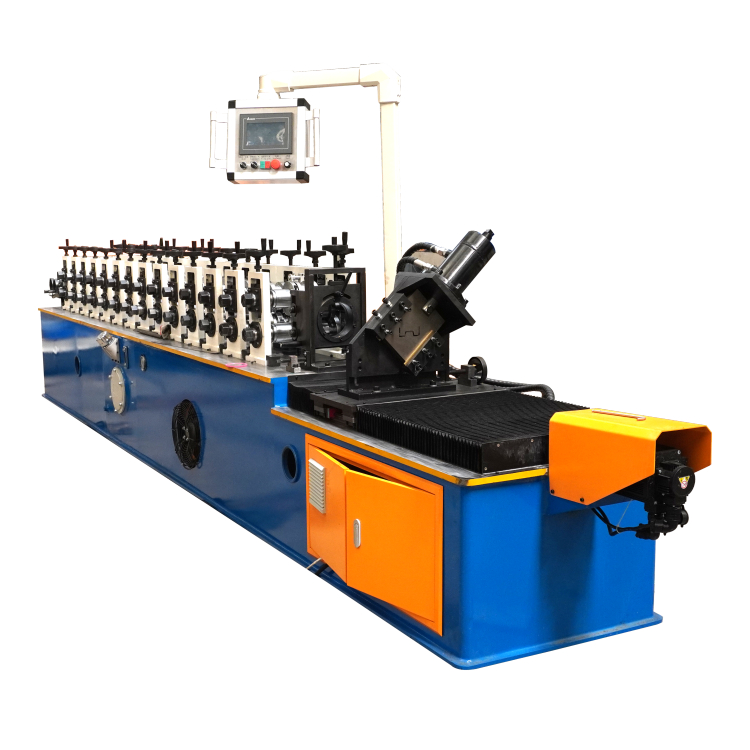

Zkrfm keel Machine Truss Roll Forming Machine Keel Roll Forming Machine

Short Description:

The keel forming machine is a piece of equipment used to process metal sheets. It is mainly used to produce building structural materials such as keels or roof trusses. The machine can quickly and accurately manufacture keel products of various shapes and sizes through automatic feeding, forming and cutting functions, and is suitable for structural support in various construction projects. Its efficient production and high-quality molding capabilities make it an indispensable and important piece of equipment in the construction industry.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

Overview

PRODUCT DESCRIPTION

Material	Raw Material	Galvanized steel
Material	Thickness	1-3 mm
Machine	Roller Station	9
	Shaft Material	60 mm
	Shaft Material	45# steel with 0.05mm chrome
	Roller Material	CR12
	Machine Size	About 4.50.81.3m
	Machine Weight	About 1.8 ton
	Machine Color	As customer request
	Working Speed	10-20 m/min
Cutter	Hardness	50-65 HRC
	Cutting Tolerance	± 1mm
	Material	CR12

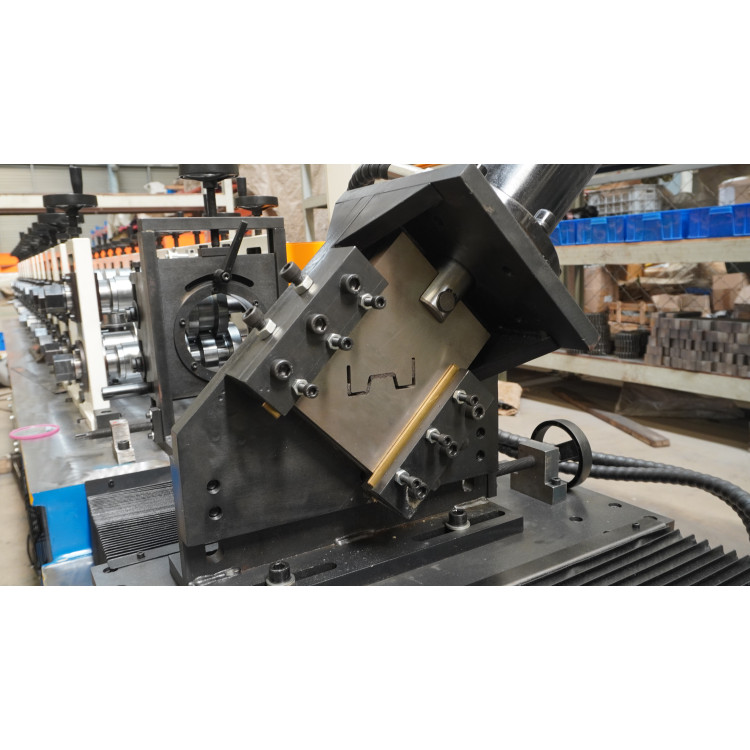

	Operate	Hydraulic cutting
Power	Driving Way	Chain 1 inch
	Main Power	5.5KW
	Pump Power	4KW
	Voltage	380v 50hz 3P, or Customize as Customer' request

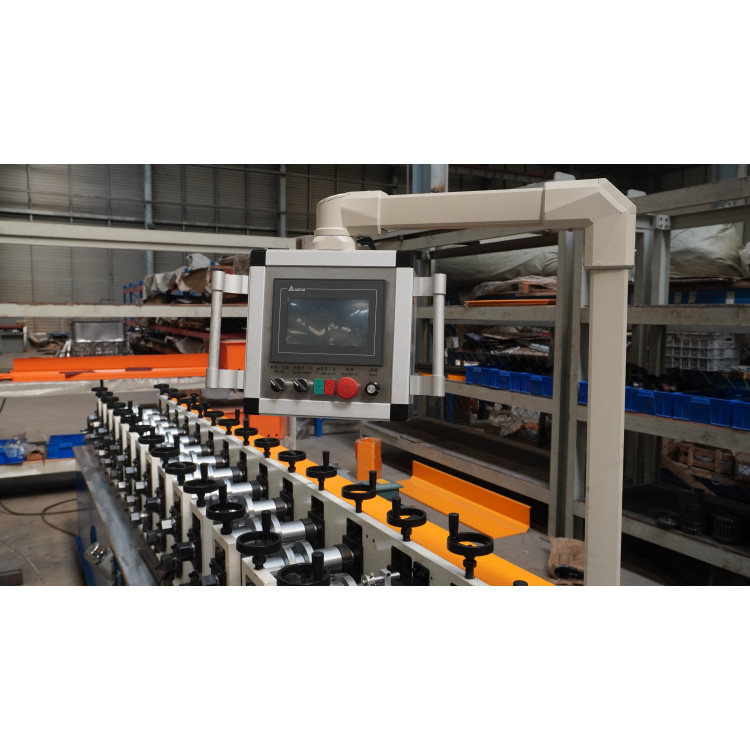

Control System	PLC Brand	Delta made in Taiwan
	Screen	Touchable Screen
	Language	Chinese, English or Add customer' need

COMPANY INTRODUCTION

PRODUCT LINE

OUR CUSTOMERS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS

FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
