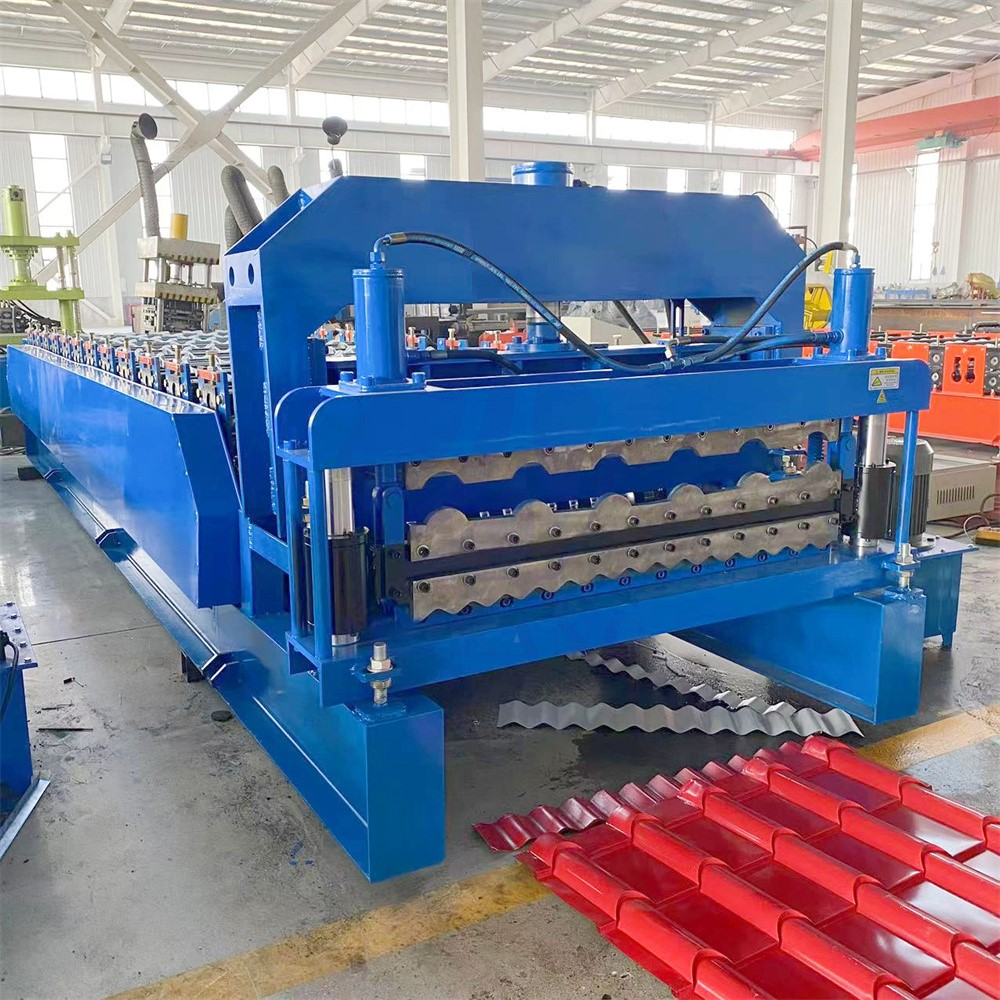

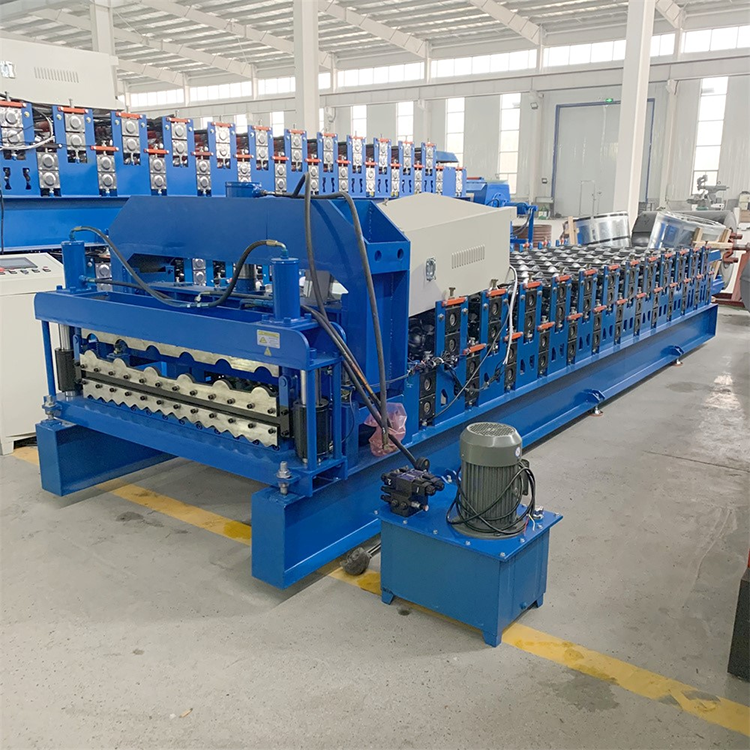

ZKRFM Double Layer Roofing Sheet Machine Glazed Tile Making Machine

Short Description:

Double-layer glazed water corrugated tile press is used for building roofs. It has good heat insulation and waterproof properties, is beautiful and durable.

Support customization

Any inquiries we are happy to reply, pls send your questions and orders

Send email to us

Product Detail

Product Tags

Product Description

Description
Applicable materials	Colored glazed steel

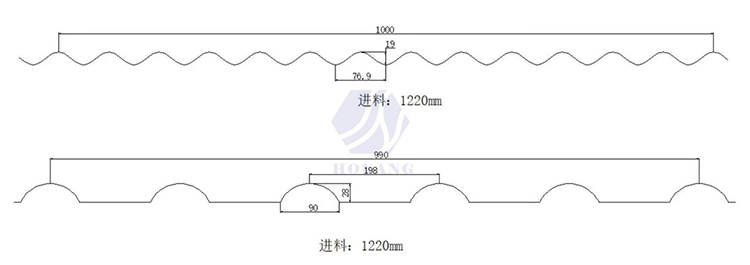

Feeding width	1000-1200mm
Effective width	800-1000mm
Material thickness	0.3-0.8mm
Number of rollers	13rows/9 roller
Frame size	350H section steel (national standard)
Middle plate thickness	16mm
Roller material	45 # steel
Roller diameter	Roller diameter
Drive servo motor	5.5KW
Oil pump power	4KW(Large box + cooling air box)
Tool material	Cr12
Voltage	380v,50hz,3 phase
Cutting accuracy	±2 mm
PLC panel	touch screen electric control cabinet
Outside dimension	LWH=6500mm1500mm150mm
Forming speed	Glazed tile 2m/min Common 10-15m/min

Cutting Blade Of Roll Forming Machine

The cutting blade of the glass tile roll forming machine can cut the formed iron plates quantitatively through the length parameters set by the PLC control system to obtain the required length.

The cutting blade is very sharp and has fast cutting speed.

At the same time, it is solid and durable, not easy to damage.

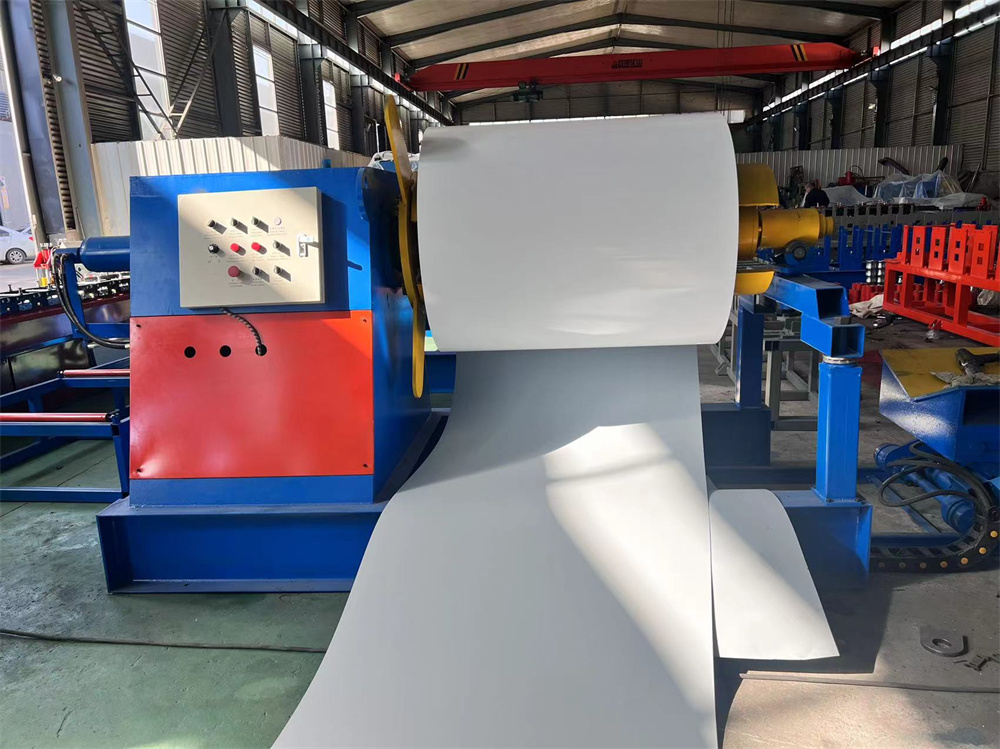

Decoiler of roll forming machine

Roof sheet make machine load parts, decoiler loading frame we can offer different type can choose. standard type are manual,also
can choose electric loading frame or hydraulic loading frame.

This loading frame decoiler also can use in other type machine,
customer can buy it alone.

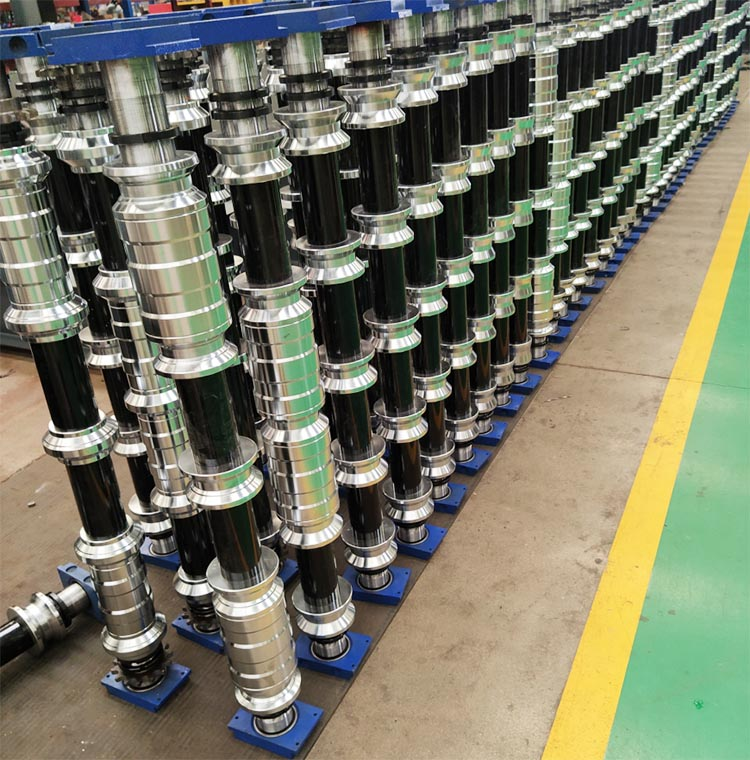

Forming Roller Of Roll Forming Machine

The roller of the glazed tile forming machine has high utilization rate, high strength, high degree of production automation, and is durable.

This model of machine adopts the 9-13 roller design, which can better press the required shape. Compared with fewer rollers, the effect of wheels will be better.

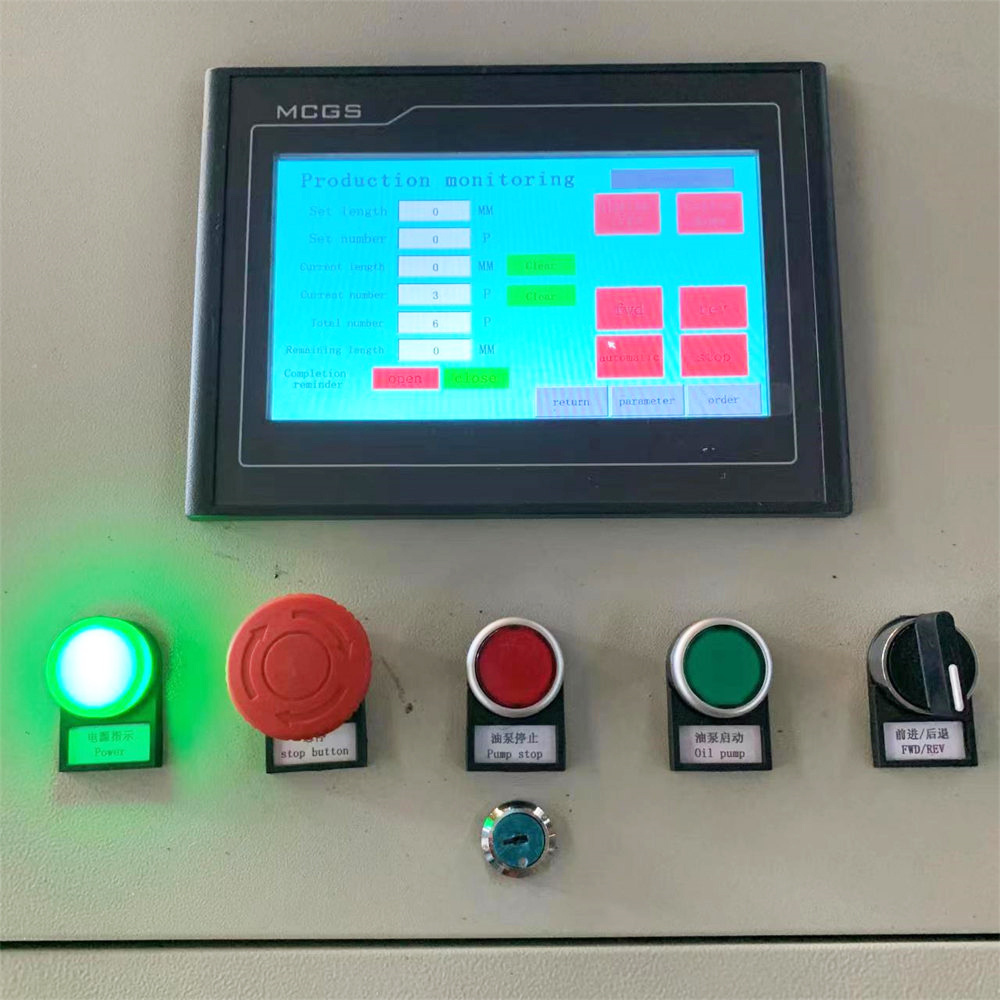

PLC Control System

The control system adopts the combination of touch screen and button to control, which is more convenient. All controls are controlled through the control panel. It is easy to touch the screen and operate simply.

At the same time, the control panel is small in size, reducing space occupation, and the independent support extension design is far away from the machine, ensuring safety.

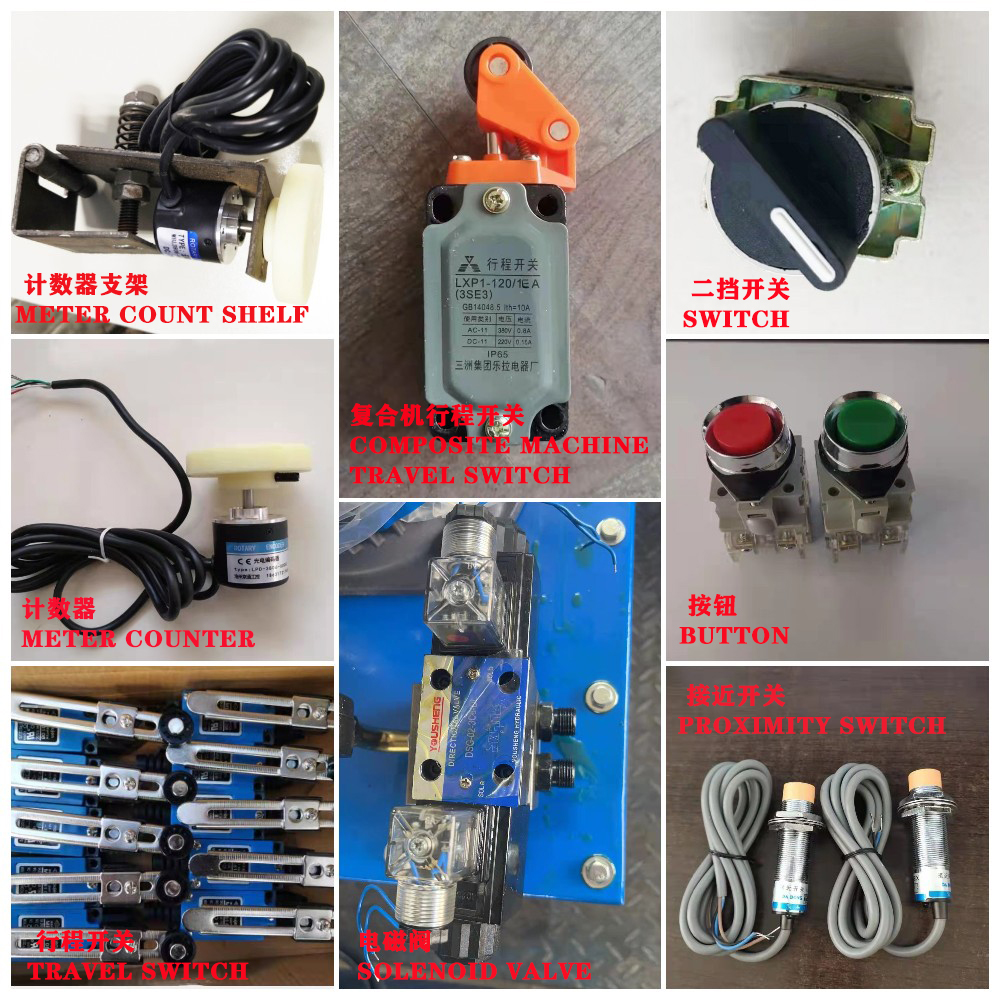

For every customer who buys our machine, we will give free parts randomly, and then contact the sales staff to have them！
