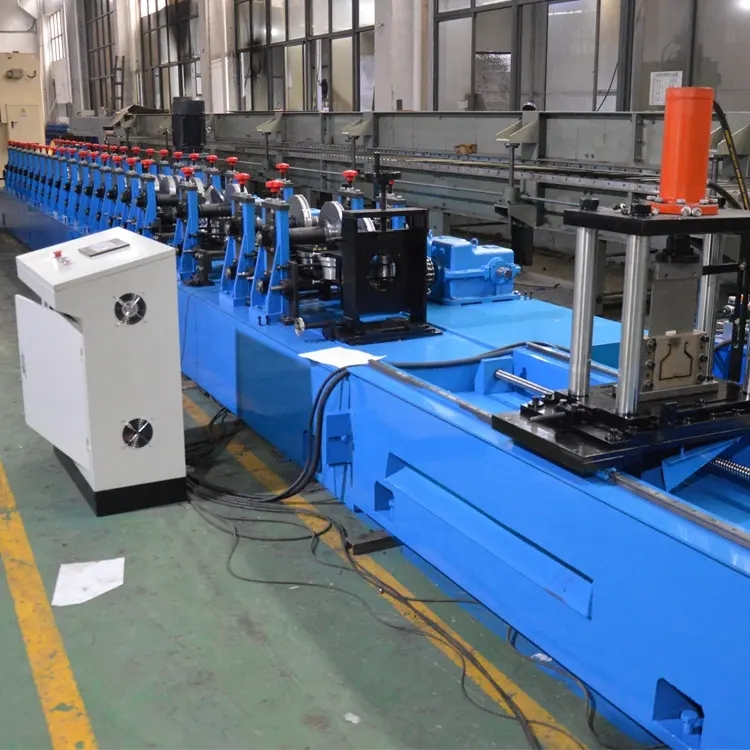

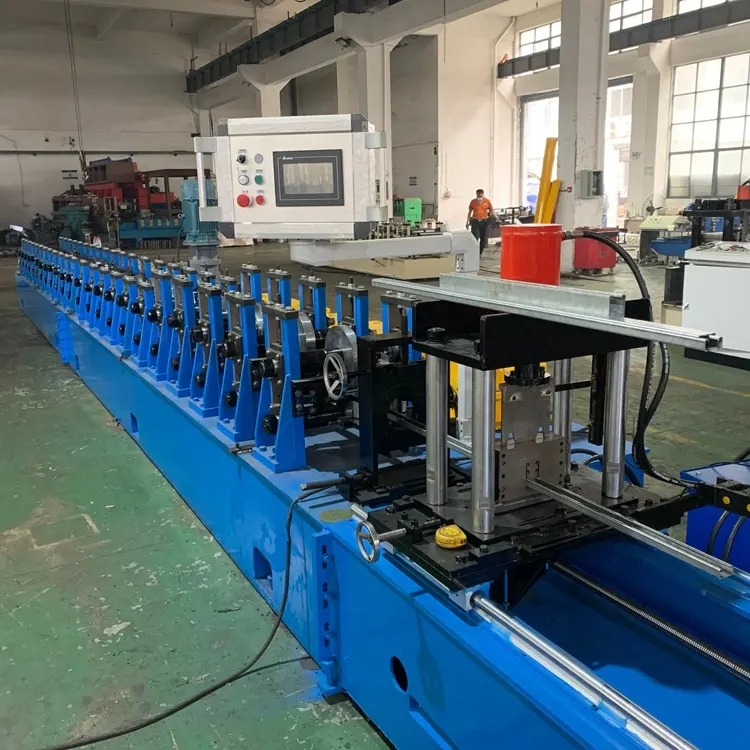

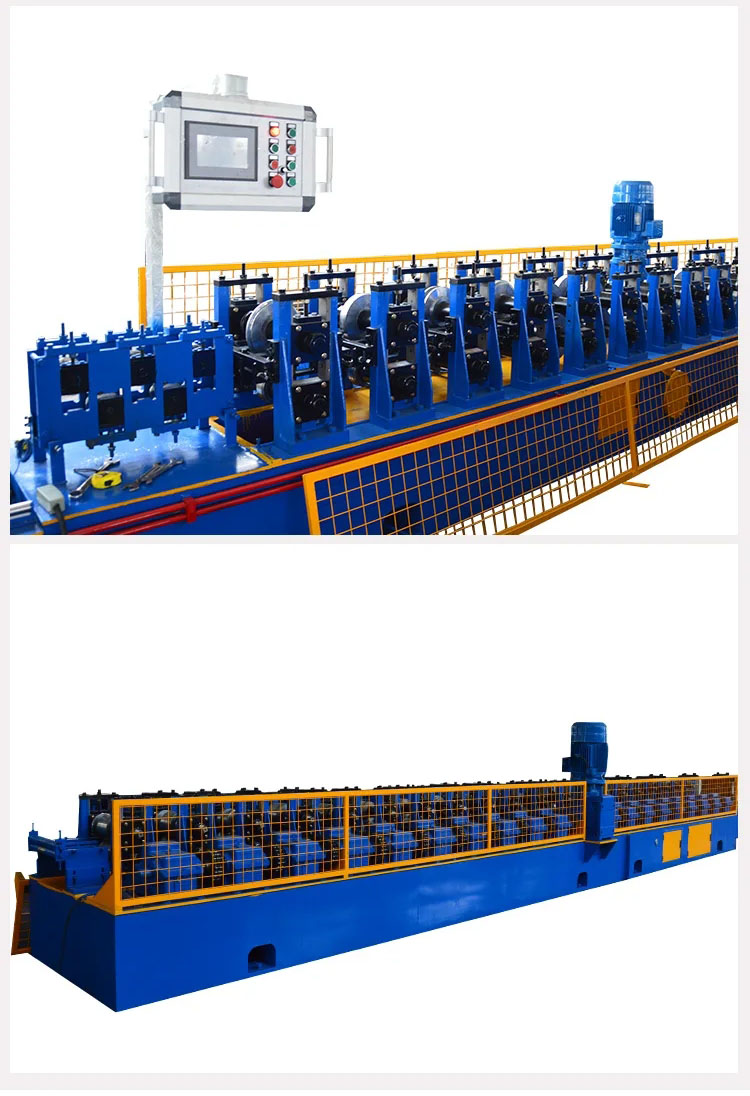

Warehouse Shelving Racking Beam Roll Forming Machine Upright Rack Roll Forming Machine
| Forming stations | About 20-22 stations or according to you profile drawings |
| Machine structure | Optional 1: wall panel structure Optional 2: cast iron strcture |
| Rollers material | GCr15,quenching treatment:HRC58-62; Cr12, SKD11（optional） |
| Way of drive | Chain drive or Gearbox drive(optional) |
| Raw material request | Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel |
| Whole line working speed | 0-25m/min |
| Length precision | 6+-1.0mm |
| Punching system | Hydraulic punching or punching press machine(option) |
| Cutting system | Non stop cutting or servo Tracking cutting |
| Inverter | Siemens,Mitsubishi, panasonic (option Brand) |
| PLC | Siemens,Mitsubishi, panasonic (option Brand) |
| Main Power with reducer | 18.5KW WH Chinese Famous |

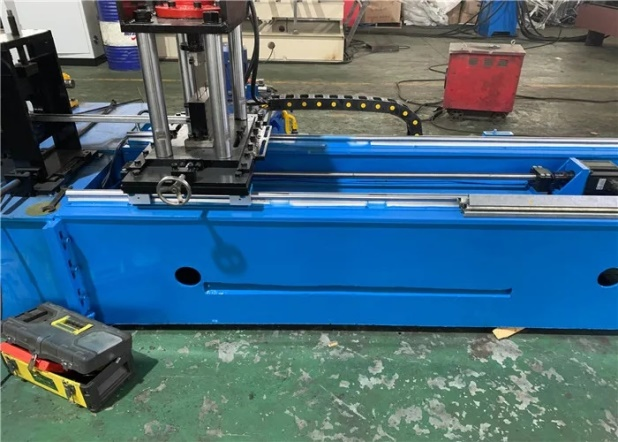

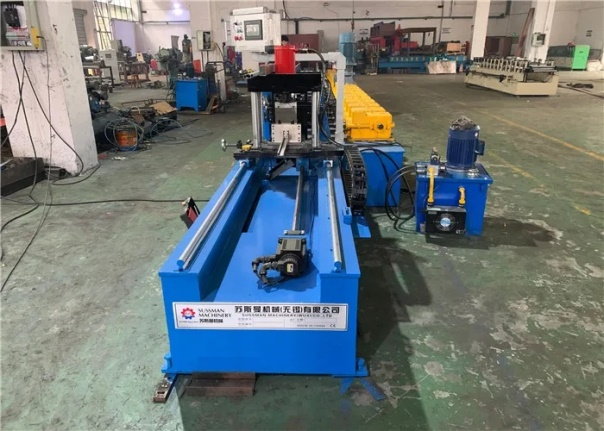

| Cutting holder | Servo following cutting |
| Motor power of hydraulic station | 5.5KW |
| Cutting type | Hydraulic drive, cut after forming |
| Material of cutting blade | Cr12Mov , quenching process |

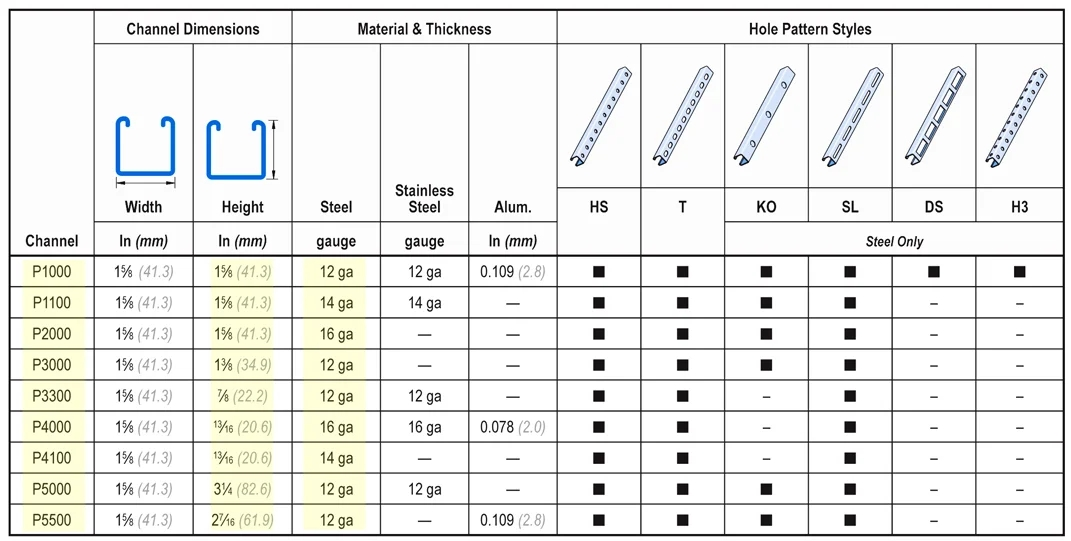

Product Line
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!

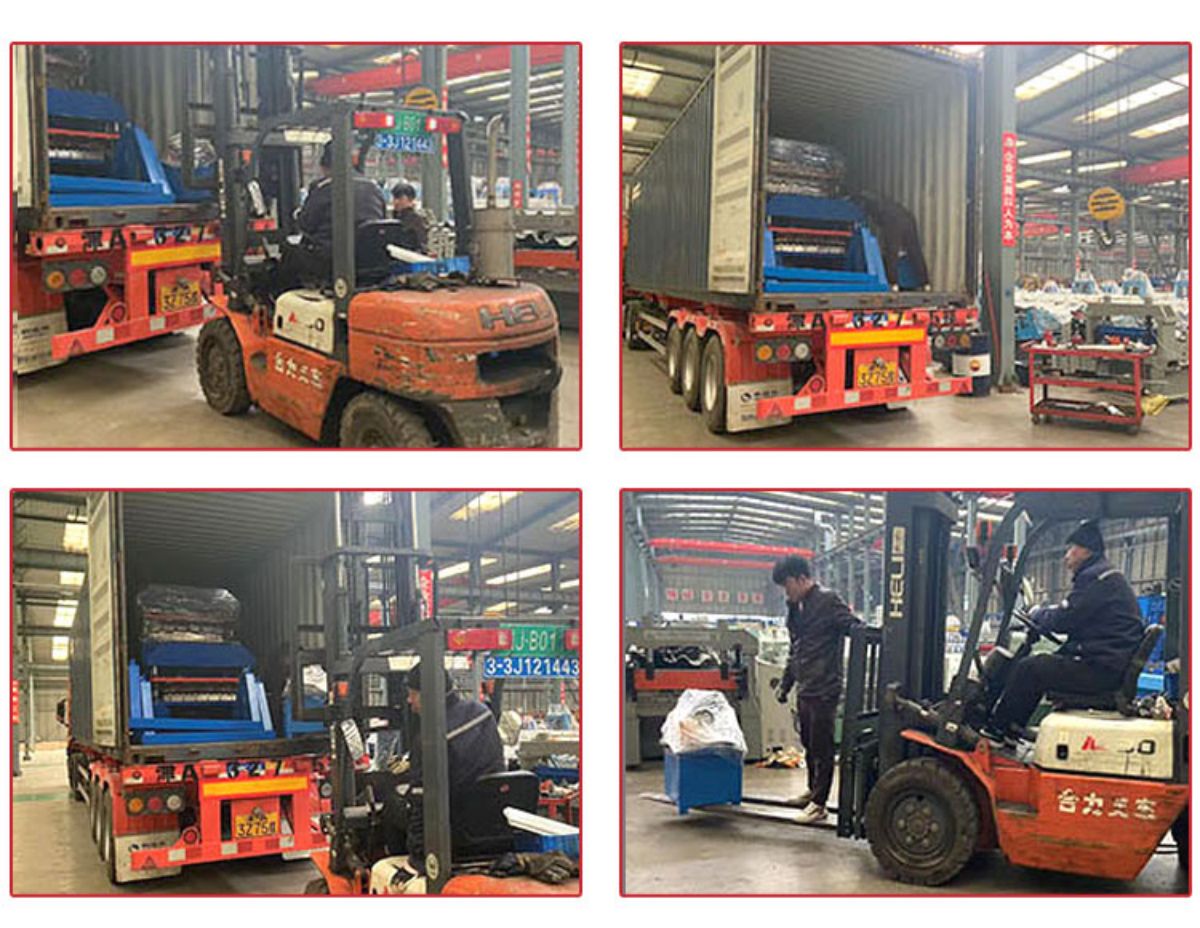

Packaging & Logistics
FAQ
Q1. Are you trading company or factory?
A1. We’re manufacturer, not just foreign trade company. We have a factory.
Q2. Why is your price higher than other suppliers’?
A2. Our machines use imported brands and domestic first-tier brands with fine workmanship, reasonable design. The price also varies according to different speed and structure.
Q3. Do your machines have good quality?
A3. Definitely yes. We pay high attention to quality. We have many regular customers domestic and abroad. We think only high quality machines will gain long-term cooperation with customers.
Q4. What information customers need to provide if they want to get the quotation?

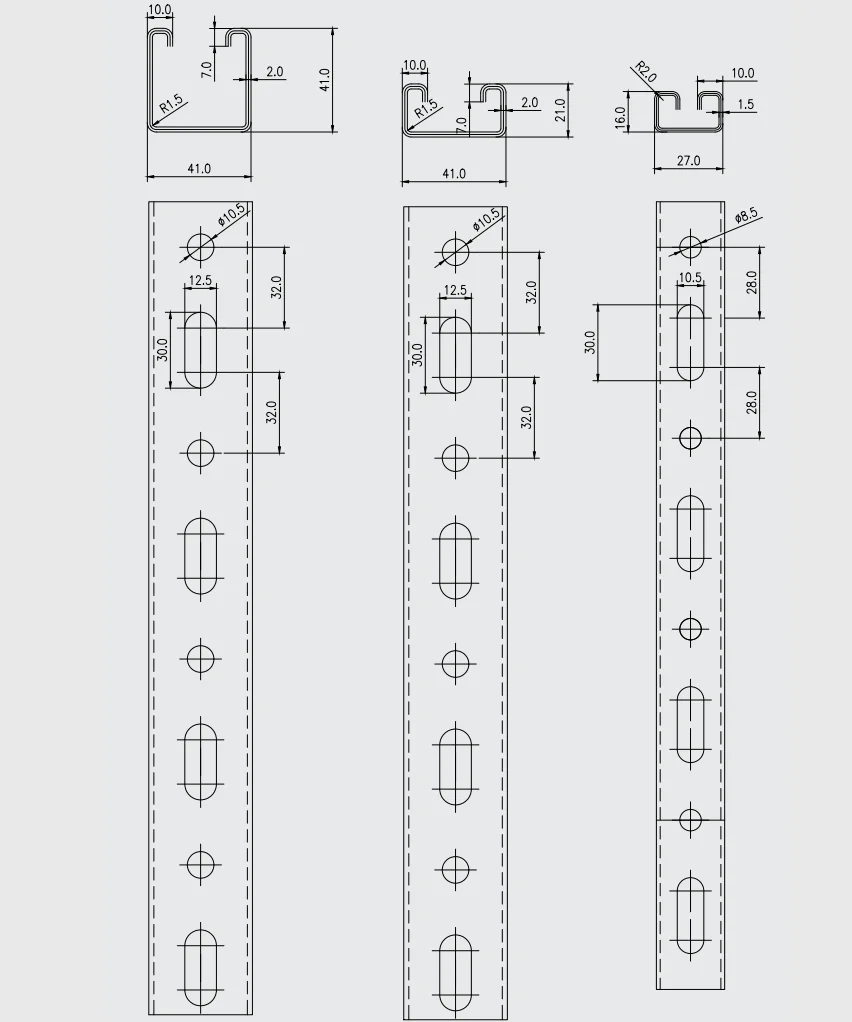

A4. Customers need to provide us with profile drawing with exact specifications, material, material’s thickness and punching holes.
Q5. Can you make customized profile machines?
A5. Yes, we can design the machines according to customers’ needs
Q6. Do you have after-sales service?
A6. Definitely yes. We’ll provide one year free after-sales service. Even after one year, we can also support you when the machines have problems. We’ll charge only when some spare parts need to be changed.
Q7. How can we trust you can make the machine?
A7. First, we won’t accept the order if we can’t make the machine. We’ll lose than customers if we fail. Second, all our machines need to be checked before delivery. Customers can arrange their friend or the inspection service to come to our factory to inspect the machine.
