Ridge cap Roll Forming Machine

Short Description:

Single package size: 5m x 1m x1.2m (L * W * H);

Single gross weight: 3000 kg

Product name Ridge cap Roll Forming Machine

Main drive mode:  motor (5.5KW)

High production speed: high speed 8-20m/min

Roller: 45# steel with hard chrome coating

Forming Shaft:45# steel with grinding process

Support: Designed as requirements

Acceptance: Custormernization, OEM



Any inquiries we are happy to reply, pls send your questions and orders


Product Detail

Product Tags

Product descriptions from the supplier Overview

PRODUCT DESCRIPTION OF Zhongke Ridge cap Roll Forming Machine

The Zhongke shutter door roll forming machine

1. The blade only has cr12mov, which is of good quality, strong and wear-resistant.

2. The chain and middle plate are widened and thickened, and the production performance is more stable.

3. The wheel adopts overtime electroplating, and the coating reaches +0.05 mm.

4. The whole machine adopts shot blasting machine to remove rust, and spray both sides of the primer and the two sides of the topcoat to strengthen the adhesion of the machine to the paint, not only beautiful in appearance, but also not easy to wear.

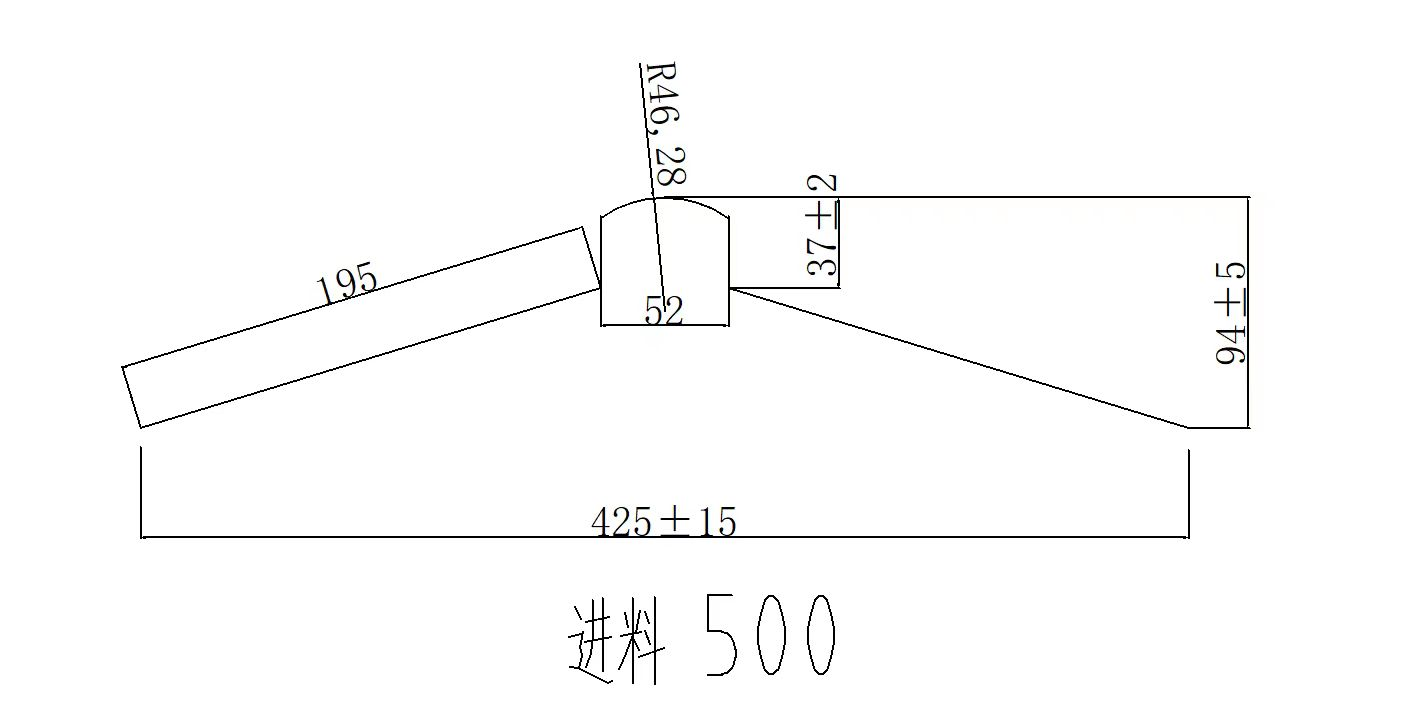

PURLIN SPECIFICATIONS OF Zhongke Ridge cap Roll Forming Machine

Ridge cap Roll Forming Machine10
Strip width 600mm.
Strip thickness 0.3mm-0.8mm.
Steel coil outer diameter ≤φ600mm.
Steel coil weight ≤3.5 tons.
Steel coil material PPGI

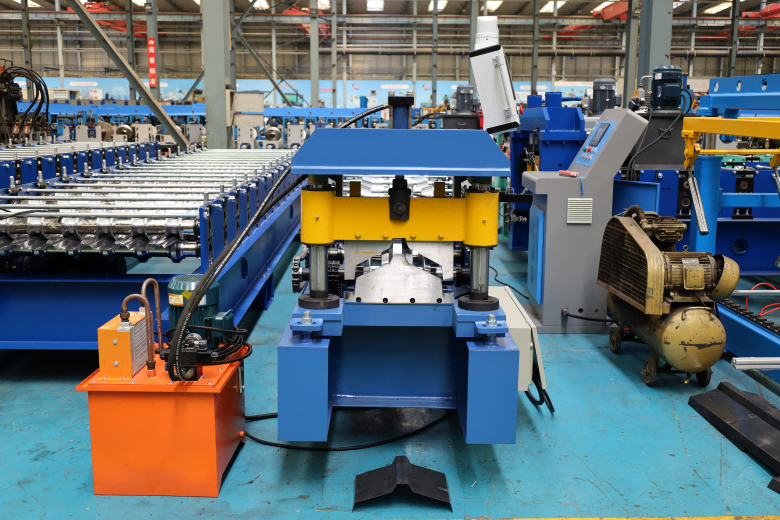

Ridge cap Roll Forming Machine11

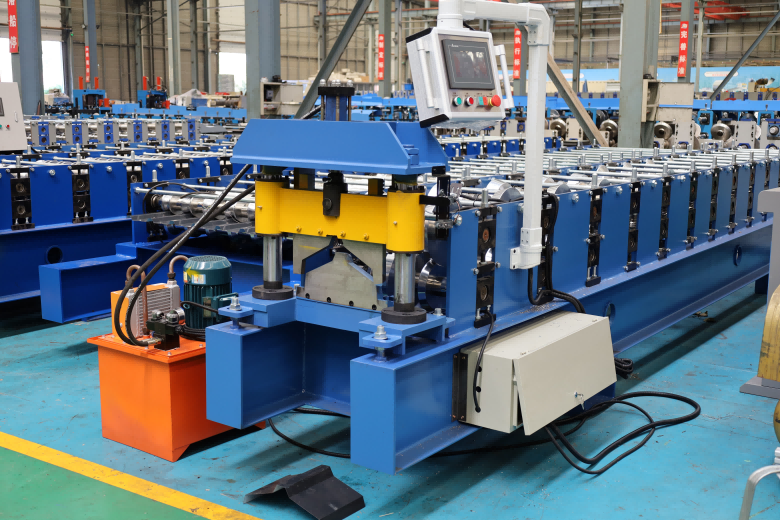

Ridge cap Roll Forming Machine12

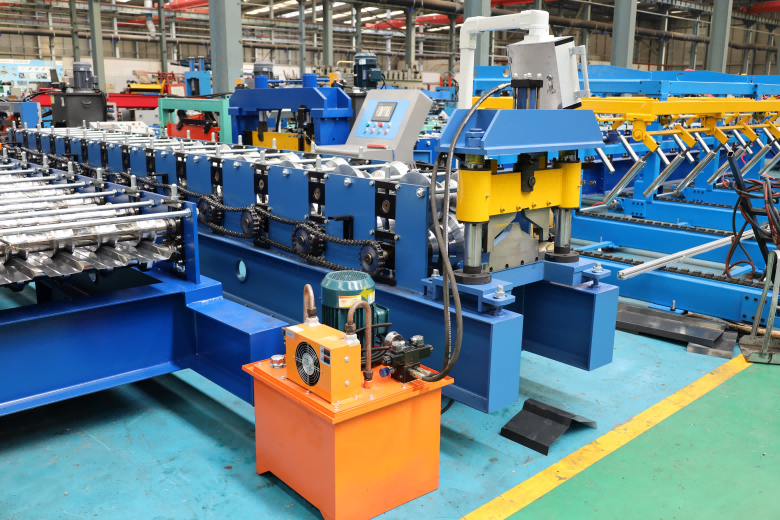

Ridge cap Roll Forming Machine13

MACHINE DETAILS OF Zhongke Ridge cap Roll Forming Machine



 Ridge cap Roll Forming Machine14

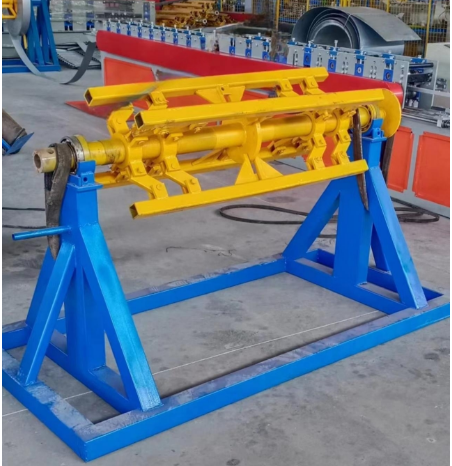

Coiler

Material: steel frame and nylon shaft

Nuclear load 5t, two free

 Ridge cap Roll Forming Machine15

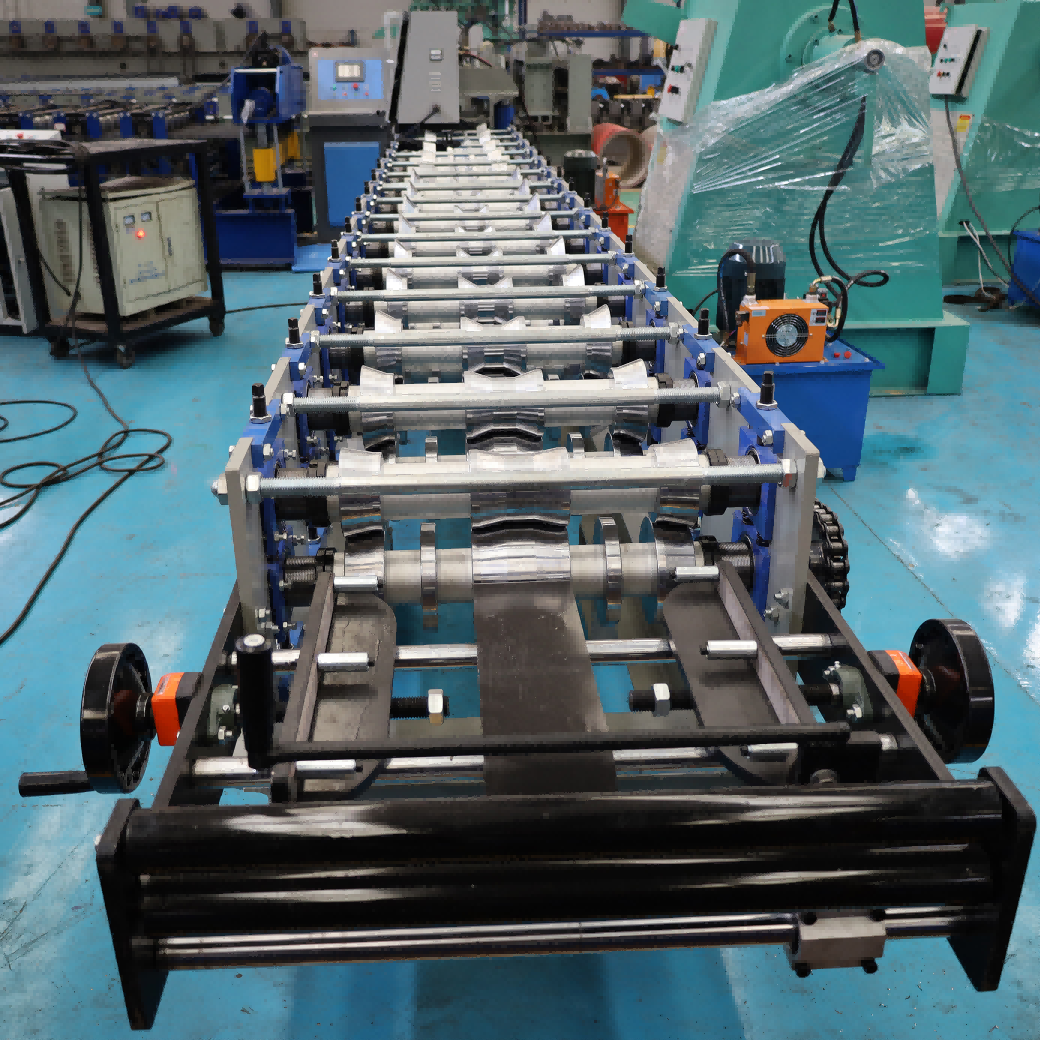

Sheet Guiding Device

  1. Features: Ensure smooth& precise material feed.
  2. Components: steel plate platform, two pitching rollers, position stopping block.
  3. The coil is guided in the correct position and passed to the roll forming equipment.



 Ridge cap Roll Forming Machine16

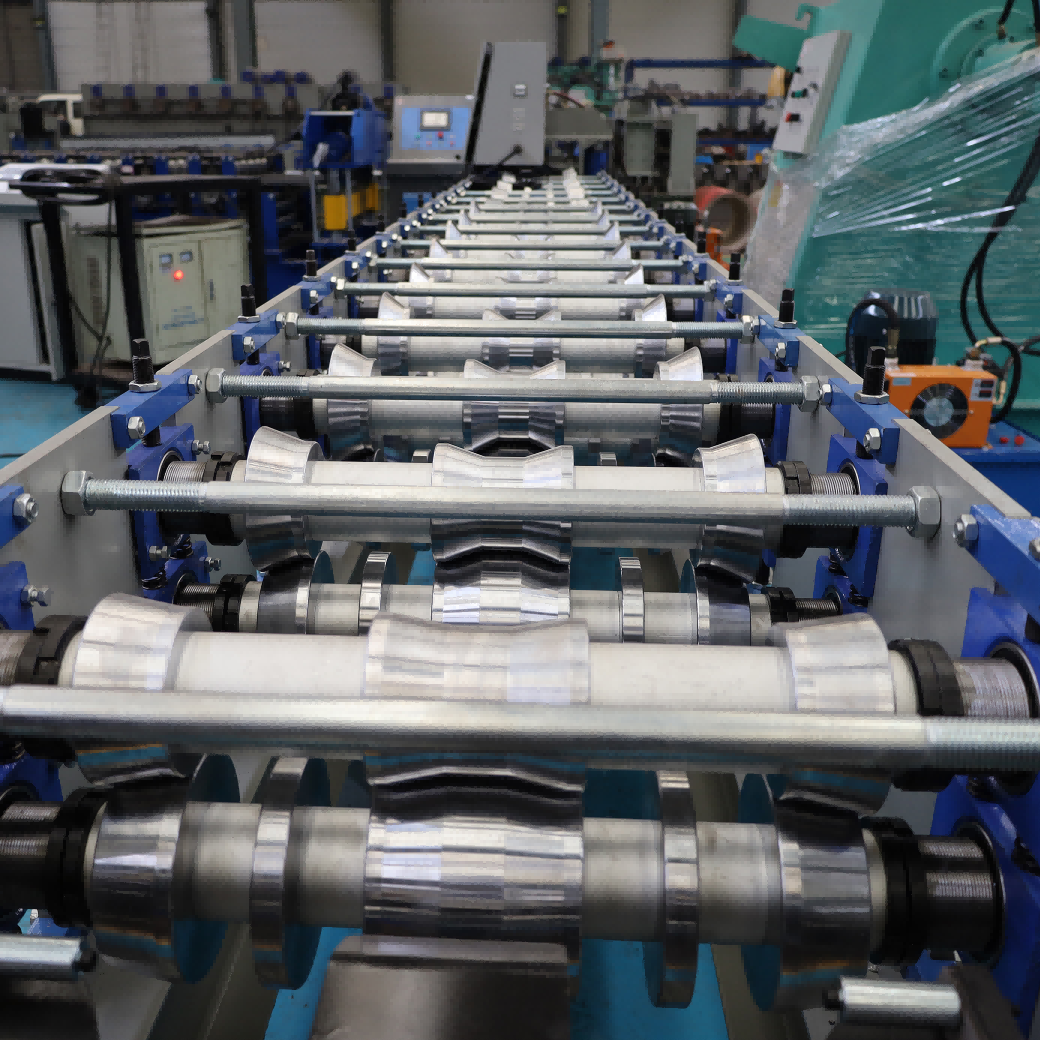

Forming

system

The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.

 Ridge cap Roll Forming Machine17

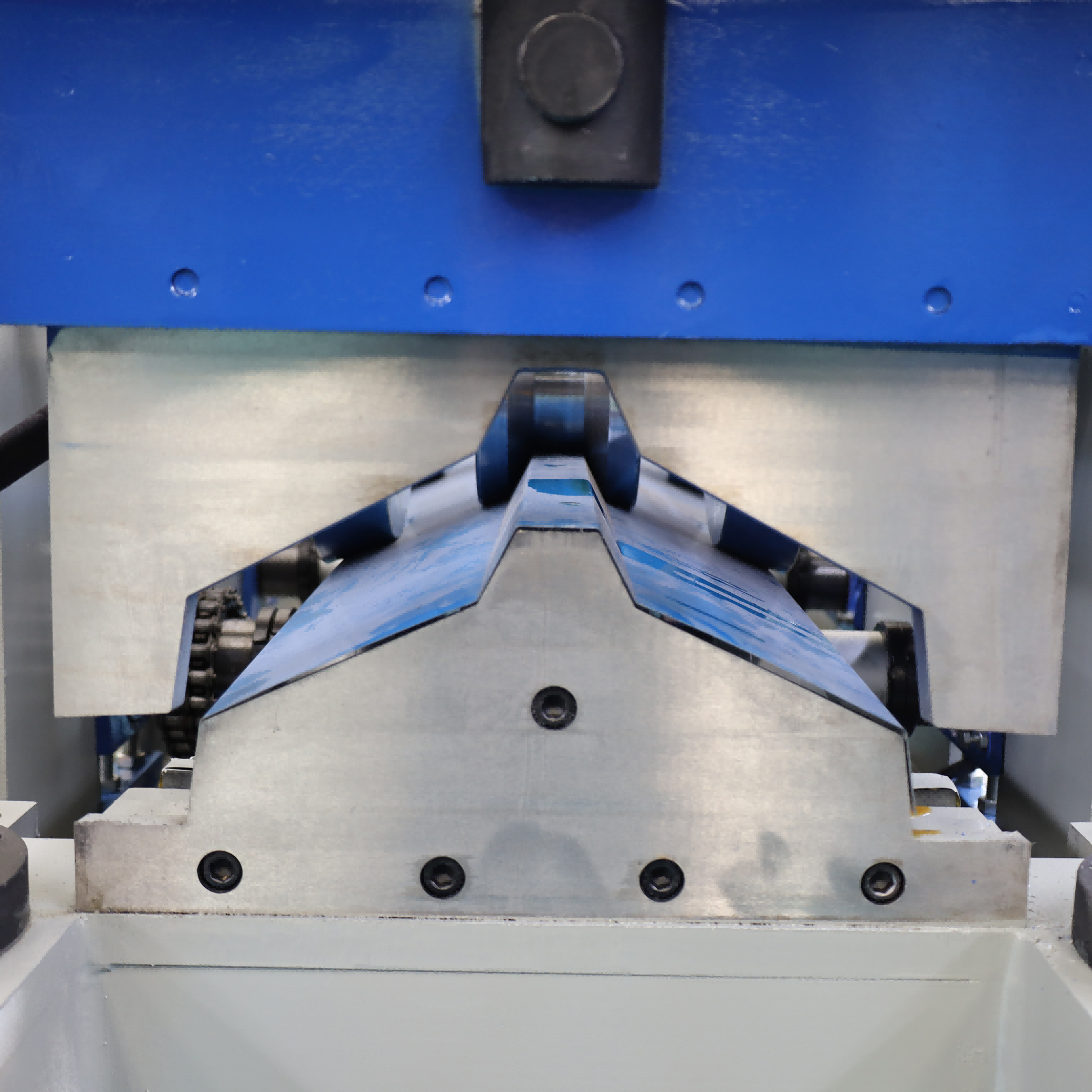

Shearing

System

1.Function: cutting action is controlled by PLC. The main machine

automatically stops and the cutting will take place. After the

cutting, the main machine will automatically start.

2.Power supply:electric motor

3.Frame: guide pillar

4.Stroke switch: non-contact photoelectric switch

5.Cutting after forming: cut the sheet after roll forming to required

length

6.Length measuring: automatic length measuring

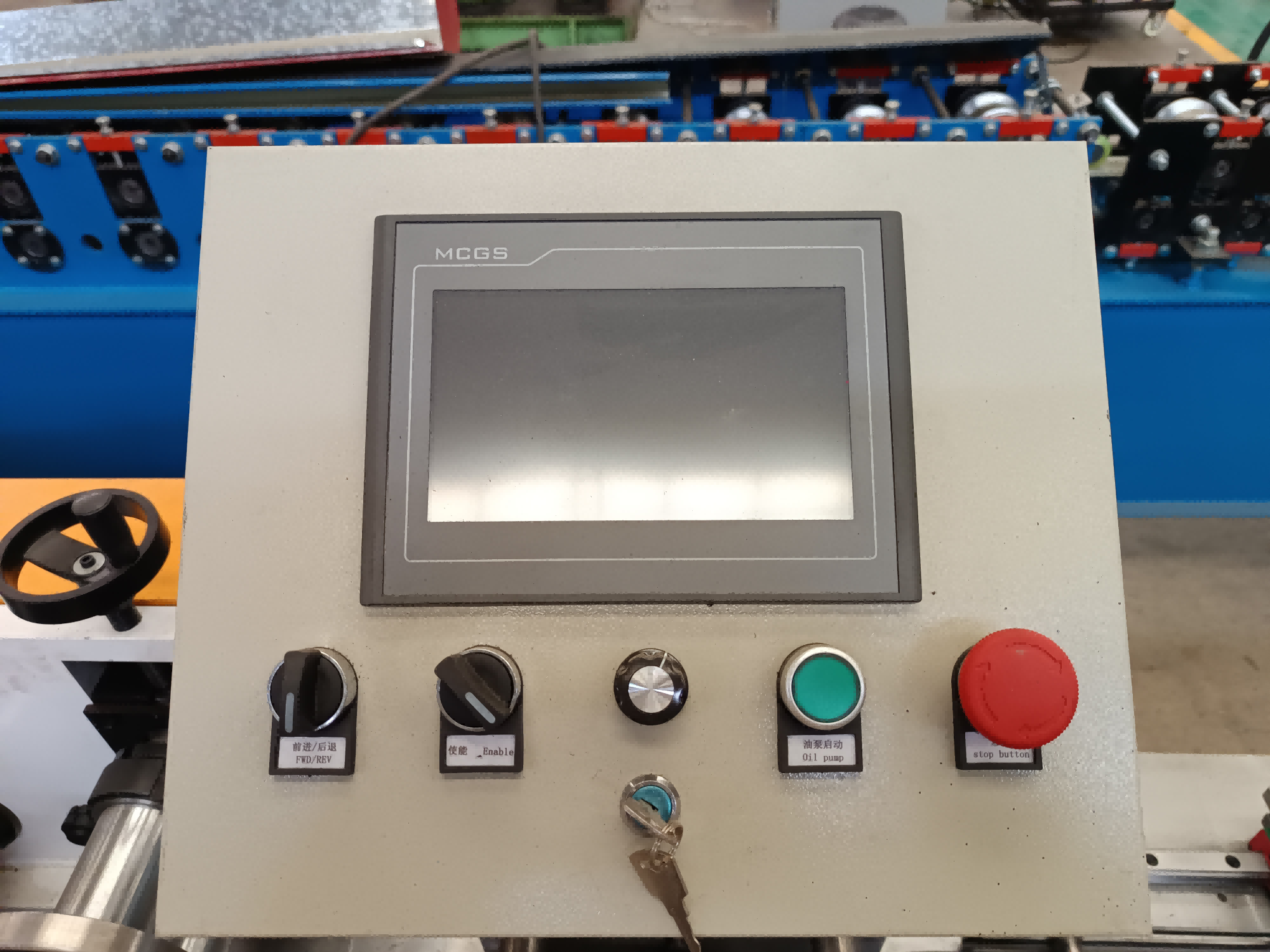

 Ridge cap Roll Forming Machine18 Electric

Control

System

The whole line is controlled by PLC and touch screen. The PLC

system is with high-speed communication module, it is easy for

operation. The technical data and system parameter can be set by

touch screen, and it is with warning function to control the work of

whole line.

1.Control the cutting length automatically

2.Automatic Length measurement and quantity counting

(precision 3m+/-3mm)

3.Voltage:380V, 3 Phase,50Hz (As per buyer`s request)

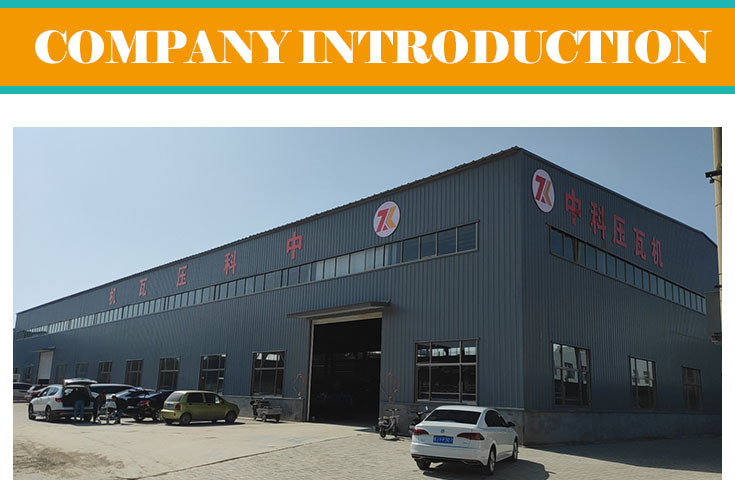

COMPANY INTRODUCTION OF Zhongke Ridge cap Roll Forming Machine

Ridge cap Roll Forming Machine19

Zhongke Roll Forming Machine Factorydriven by science and technology innovation, focus on high-quality tile pressing equipment research and development and production. We are committed to providing intelligent, efficient and durable machine production solutions that meet the diverse needs of the construction industry and ensure that our products are robust and durable to help the construction industry thrive

1 (12)

OUR CUSTOMERS OF Zhongke Ridge cap Roll Forming Machine

1 (13)

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!

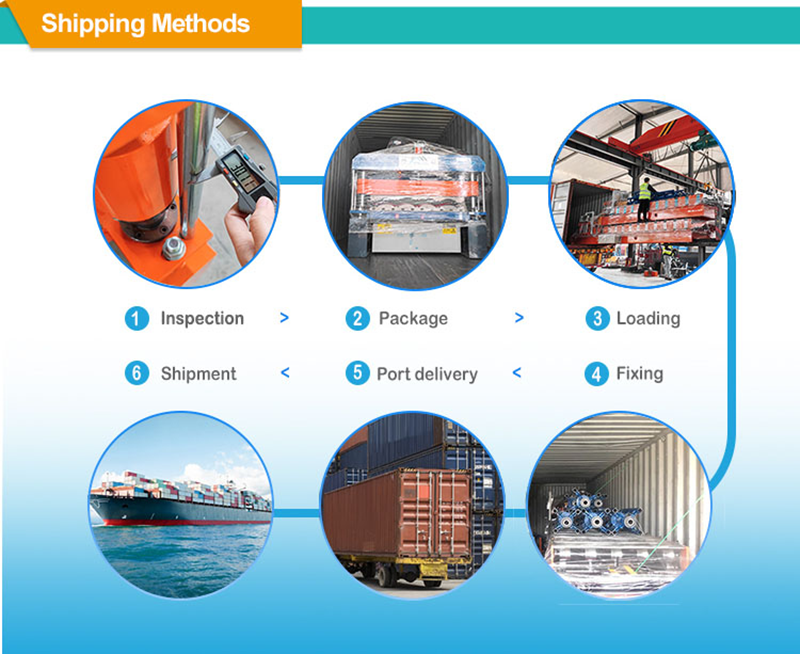

PACKAGING & LOGISTICS OF Zhongke Ridge cap Roll Forming Machine

1 (14)

FAQ

Q1.How to get a quotation?

A1) Give me the dimension drawing and thickness, it is very important.

A2) If you have requirements for production speed, power, voltage and brand, please explain in advance.

A3) If you don't have your own outline drawing, we can recommend some models according to your local market standard.

Q2. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable.

After we get down payment, we will arrange production. About 30-45 days for delivery.

Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.

Q4. What will you do if the machine is broken?

A4: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.

Q5. Can you be responsible for transport?

A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
