Light Gauge Steel Framing Machine Light Keel Roll Forming Machine Light Steel Keel Roll Forming machine

Short Description:

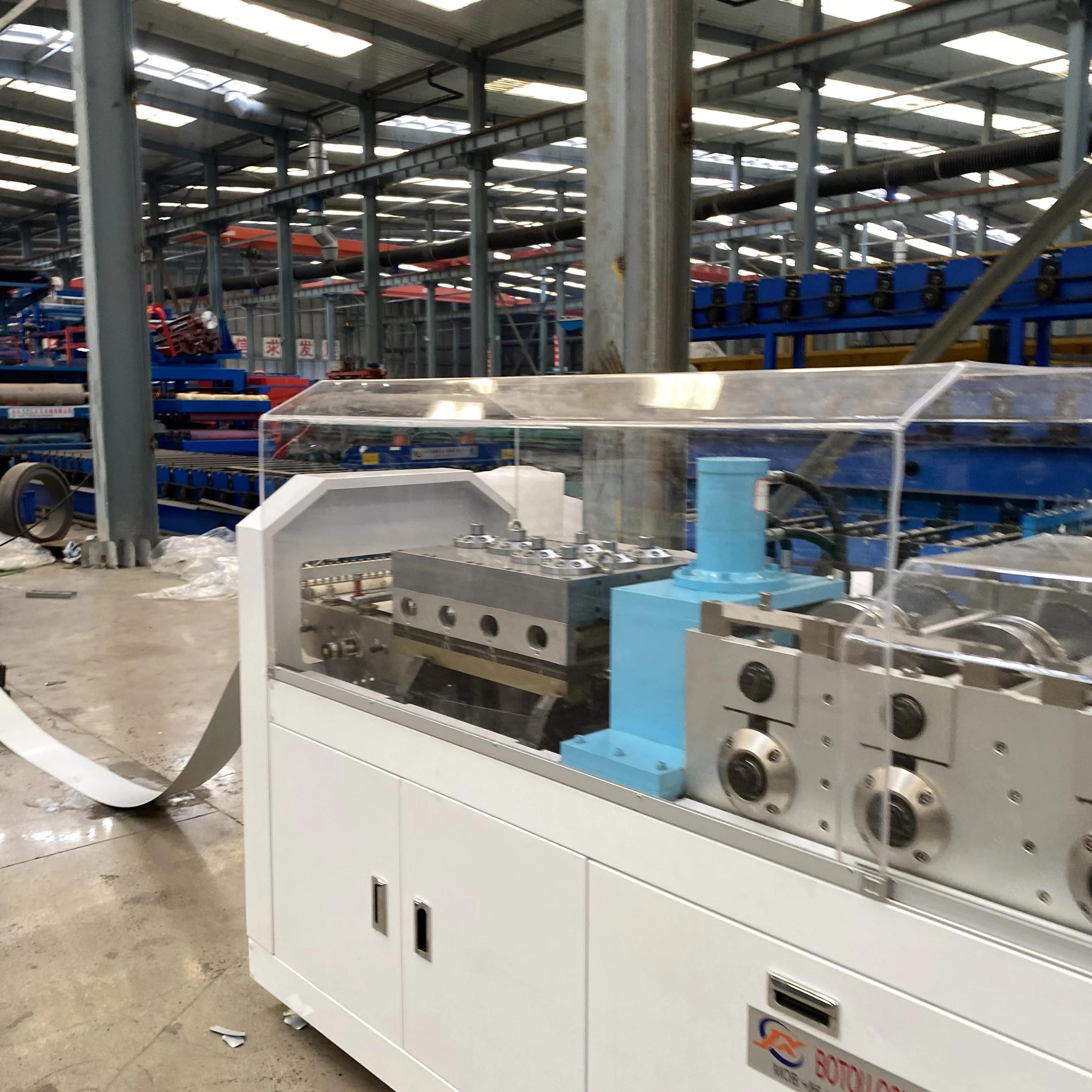

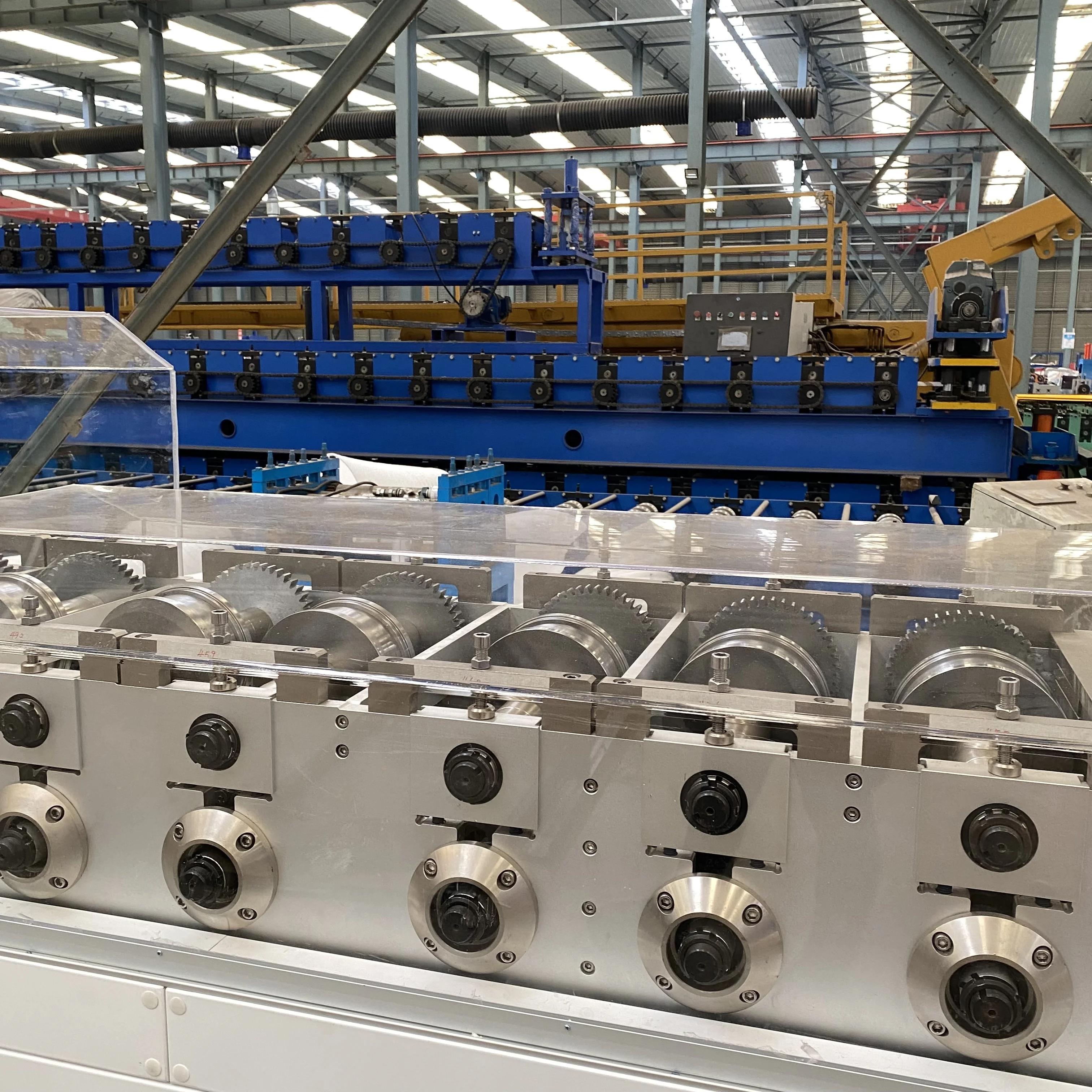

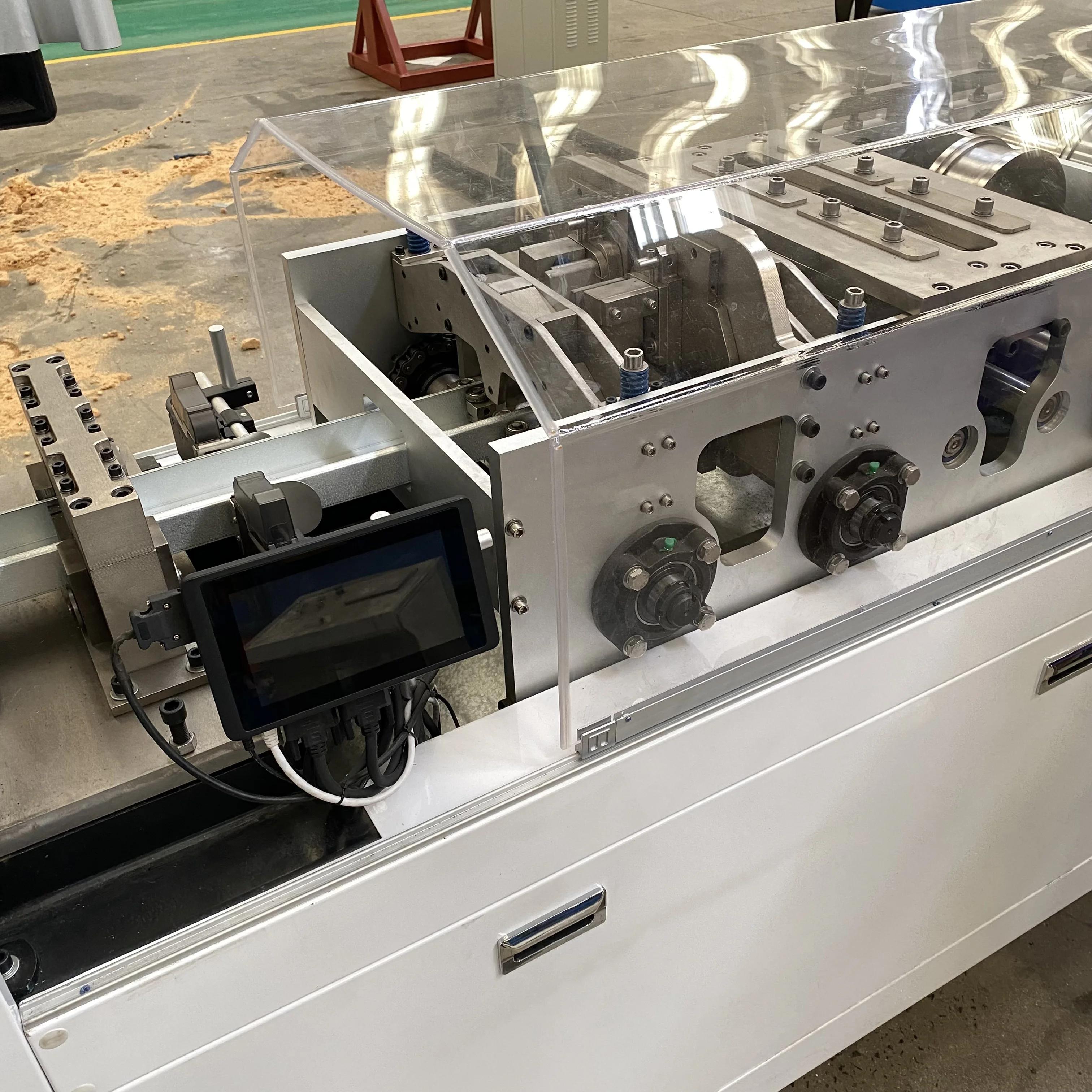

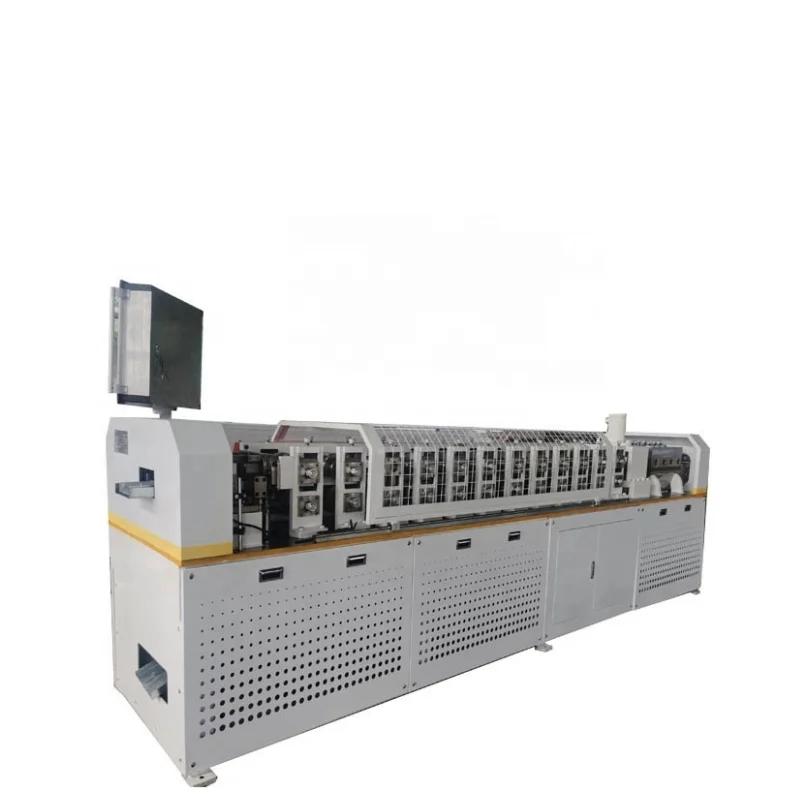

The Light Steel Villa Forming Machine is a specialized equipment designed for producing light steel villas with precision and efficiency. It features automated processes for forming and shaping light steel materials into various components, such as wall panels, roof trusses, and floor beams. This machine is capable of producing high-quality and customizable components, making it an essential tool for the construction of modern, durable, and energy-efficient light steel villas. With its advanced technology and flexible capabilities, the Light Steel Villa Forming Machine offers a cost-effective and reliable solution for manufacturing components that meet the unique requirements of light steel villa construction projects.

Support: Designed as requirements

Acceptance: Custormernization, OEM

Any inquiries we are happy to reply, pls send your questions and orders


Product Detail

Product Tags

PRODUCT DESCRIPTION

a b

c
d
e

Profile Shape C Shape
Profile Size 89(90) mm
Material Thickness 0.7-1.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System 17 inches Touchable Screen
Production Control System Self-devoloped FrameMac LGS machine Controlling Software
Design Software Optional Architectural design software of well-known domestic and foreign brands
Standard Machine Speed 300-900 m/h
Max. Machine Speed 1000 mm/S
Main Machine Motor Power 7.5 kw
Power Supplier 380V, 50Hz, 3Phrases, Customized
Hydraulic Motor Power 5.5 kw
Total Machine Power 16.5 kw
Hydraul Cylinder Volume 120L
Constant Temperature Device Constant Temperature Device is Optional in Alpine Area
Hydraulic Coolant System Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling
Punching, Cutting Mould dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole and shearing
Hole Punching Accuracy ± 0.5 mm
Inkjet Printer Standard
Machine Size 4750*1020*1500 mm
Machine Weight 4600 kgs
Decoiler 2000 kgs,auto decoiling

COMPANY INTRODUCTION

d

PRODUCT LINE

a

Customer Visiting

b

Certifications

c



Selling Point
1.Efficient and Reliable: The ZKRFM U-Shaped Keel Roll Forming Machine is designed to efficiently produce steel purlin for various industries, including construction, garment shops, and manufacturing plants. With a production capacity of 15m/min, it ensures reliability in meeting the demands of customers.
2.Easy to Operate: The machine is user-friendly and easy to operate, making it accessible to a wide range of users. It requires minimal training and can be operated by individuals with basic technical knowledge.
3.Versatile: The ZKRFM Purlin Roll Forming Machine can work with a variety of materials, including PPGI, PPGL, GI, and GL. It also allows for adjustments in the rolling thickness, from 0.3-0.8mm, to cater to different customer needs.
4.Durable Construction: The machine is built with high-quality materials, such as 45# steel, Chrome Plated, Cr 12 High Grade Steel, and High Grade No.45 Forged. This ensures a long lifespan and minimal maintenance requirements.
5.Comprehensive After-Sales Service: In addition to a one-year warranty, the manufacturer provides after-sales service, including video technical support, and engineers available to service machinery overseas. This ensures customer satisfaction and minimizes downtime.
