High Quality Ridge Cap Title Roof Roll Forming Machine

Short Description:

Ridge Cap Machine

Roof ridge cap roll forming machine makes ridge caps or valley flashings installed along the ridge line of a sloped roof or in valleysduring the installation of metal roof panels produced by a roof panel roll forming machine.

Support customization, happy to respond to your questions and orders.


Product Detail

Product Tags

asd (1)
asd (2)
asd (3)
asd (4)

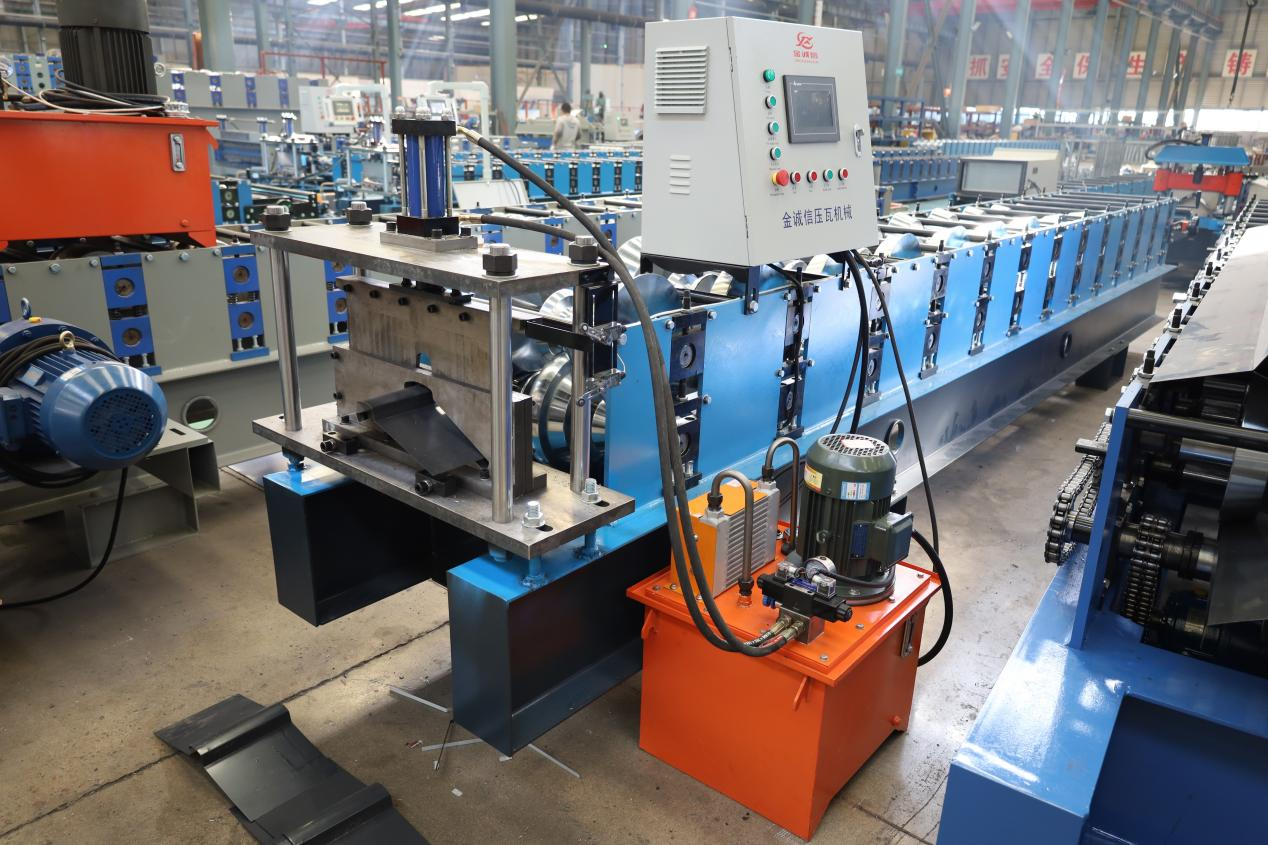

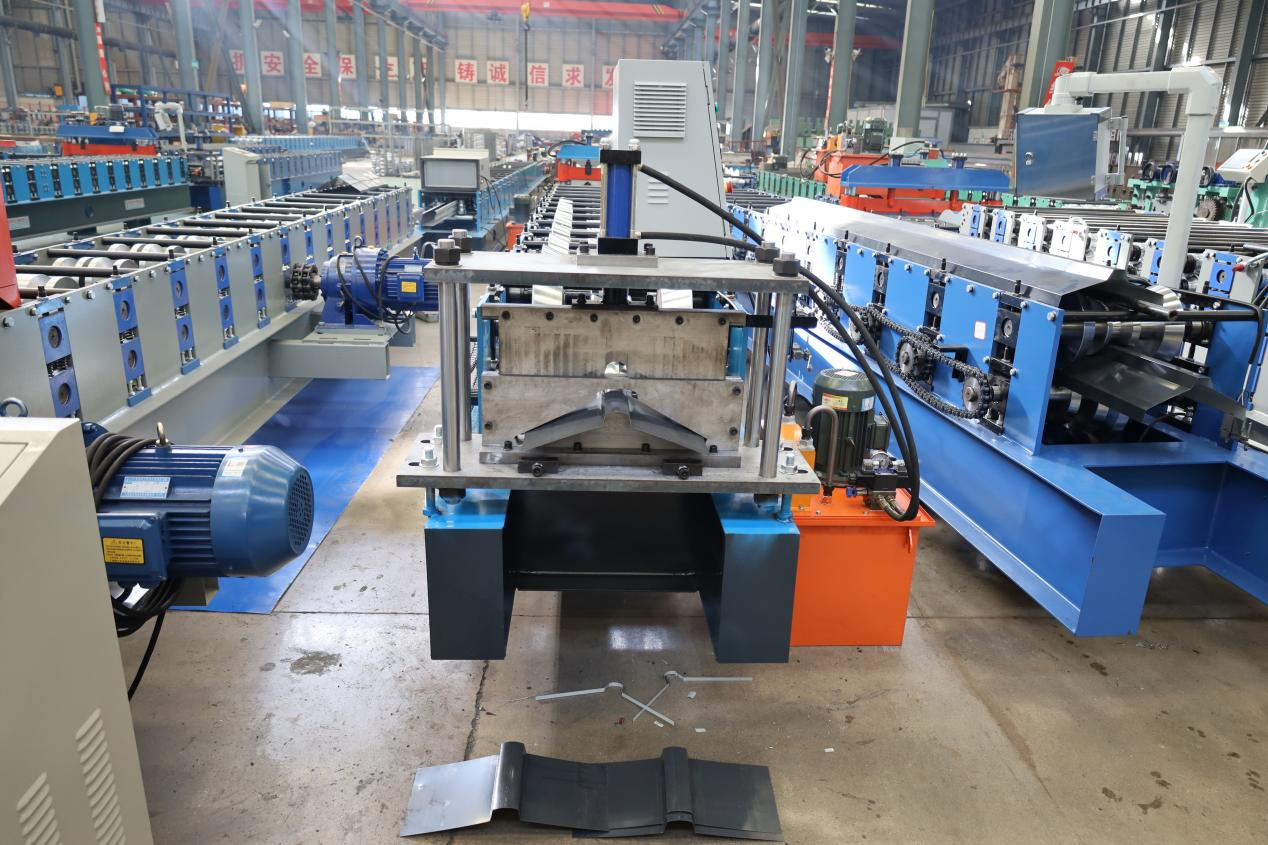

Roof Ridge Cap Roll Forming Machine

Ridge tiles can be understood as tiles with the same part that can drain water on both sides. To be precise, ridge tiles are channel tiles that cover the ridge and overlap with the tiles on the sloped roofs on both sides of the ridge. Randro ridge tiles can usually be made into herringbone, saddle, or arc shapes, and are used with clay tiles, glazed tiles, plastic tiles, asbestos cement tiles and other types of roofs.

Technical parameters

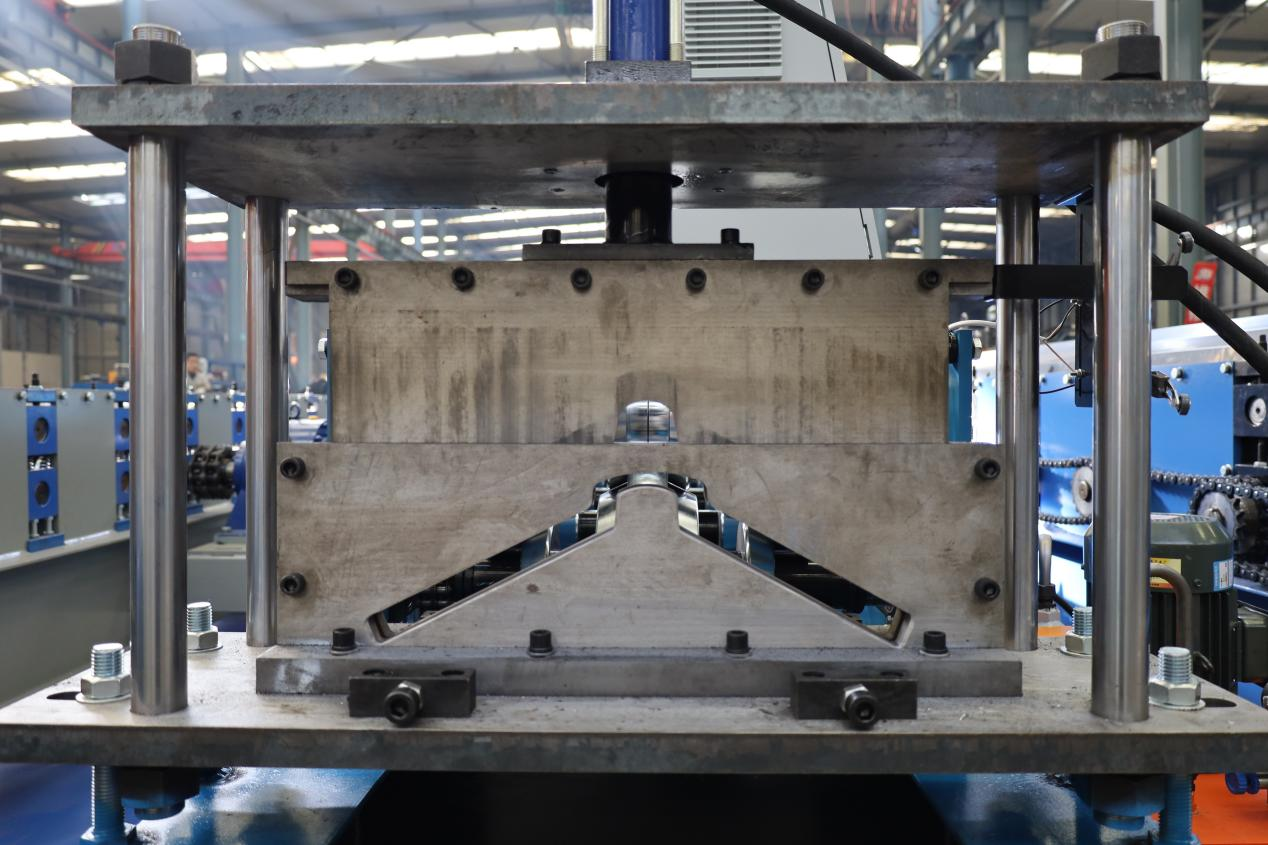

Cutter material Cr12 mould steel, with quenched treatment
Usage Roof
Thickness 0.3-0.8mm
Trademark ZHONGKE MACHINERY
Transmission Method Motor Drive
Material Type PPGL,PPGI
Production Speed 10-25m/min Adjustable
Roller Material 45# Chromium plating if necessary
Motor Power 9Kw
Brand of Electric Control System As Required
Voltage 380V 50Hz 3phases
Weight 2.5ton
Drive Type By Chains

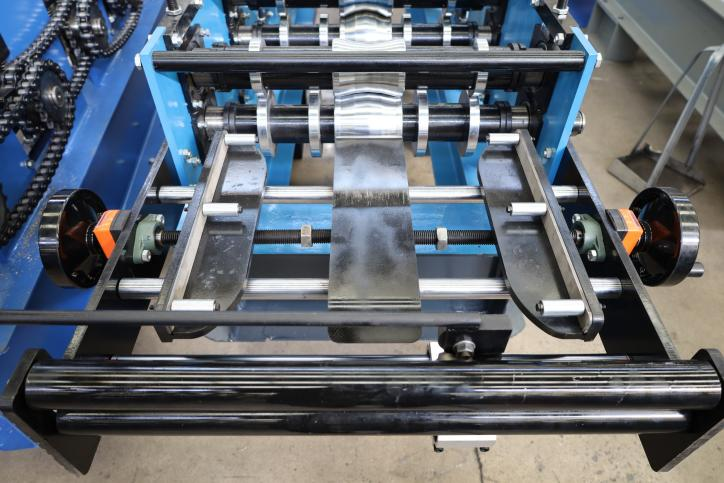

Can be used with uncoiler, easy feeding, cutting, safe and efficient

asd (5)
asd (6)

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.



Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.

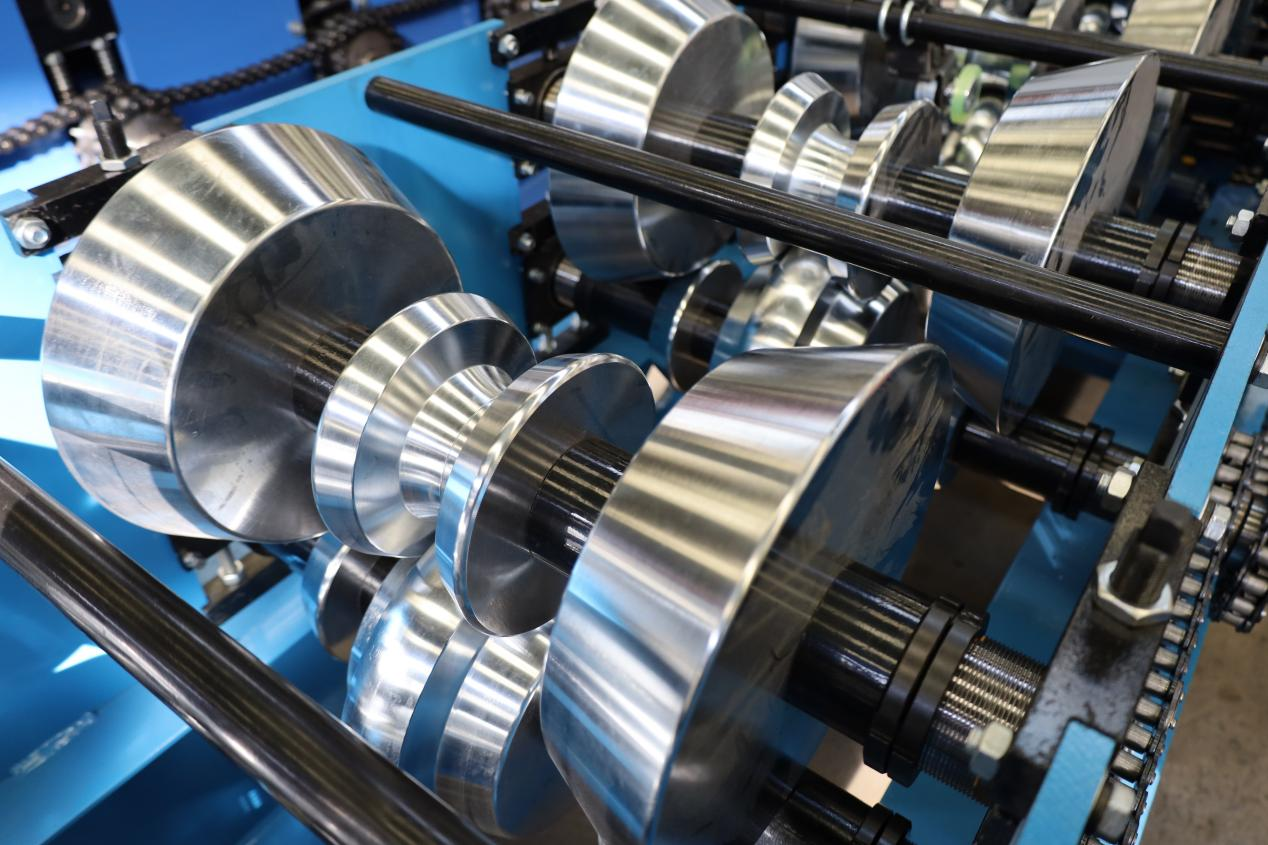

Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm

asd (7)
asd (8)

The main frame adopts 400H steel structure;



Cast steel drawing plate is used in the middle plate to ensure that no deformation occurs when the machine rolls thick plate.
