High quality and low price flower garden enclosure equipment

No

Item

Parameter

Note

1

Forming Speed

About 12-20 m/min

1

2

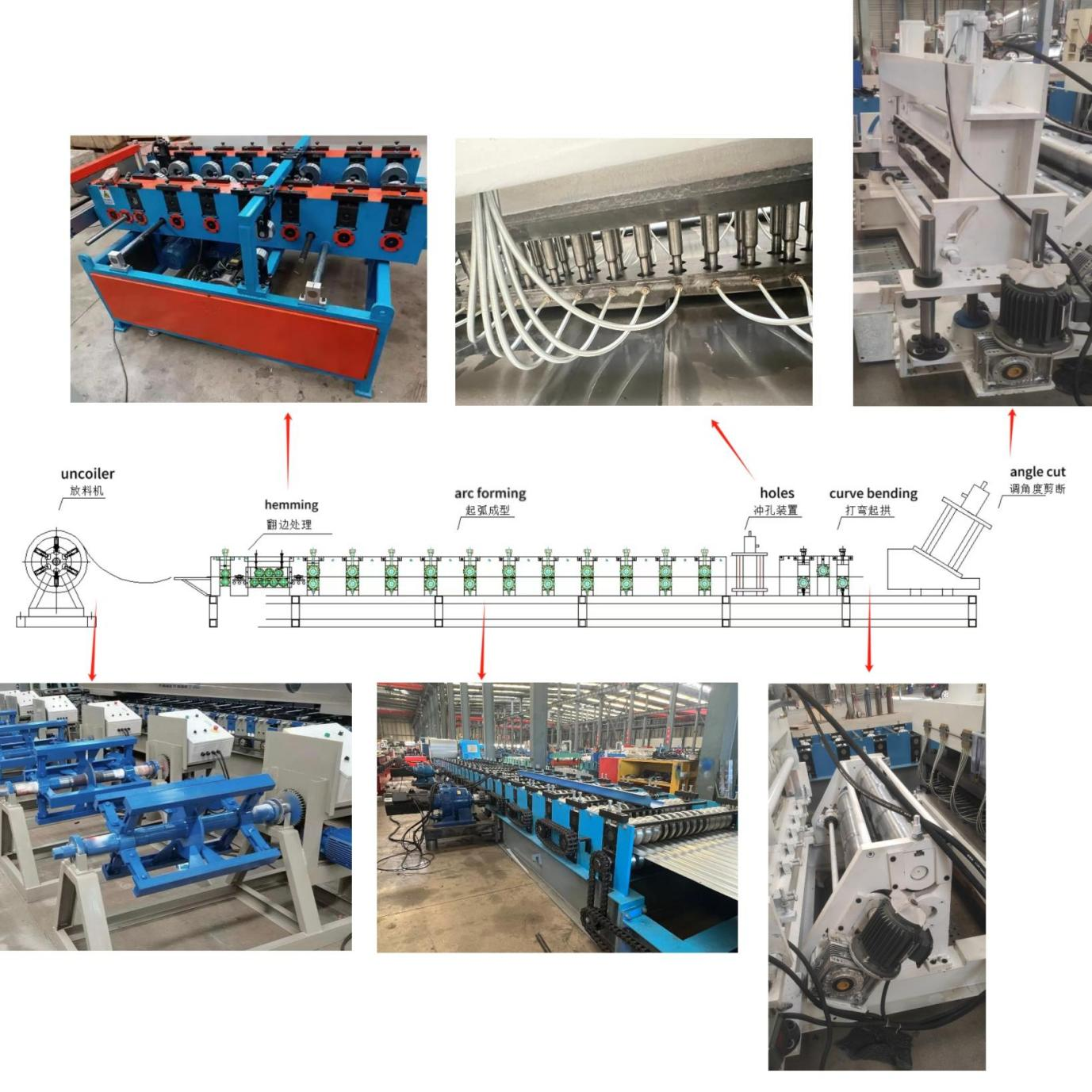

Forming station

Around 19 groups with correction rollers

(11 rows of forming, 8 rows of hemming.Equipped with punching device)

1

3

Servo motor Power

  5.5kw

1

4

Total Weight

About 3500KGS

1

5

Voltage

220v,50hz,3p      Please confirm this data.

1

6

Diameter of shaft

75mm

1

7

Installation Size

About 9M* 1.4M*1.4M

1

8

Frame

300H steel,Gb stander

9

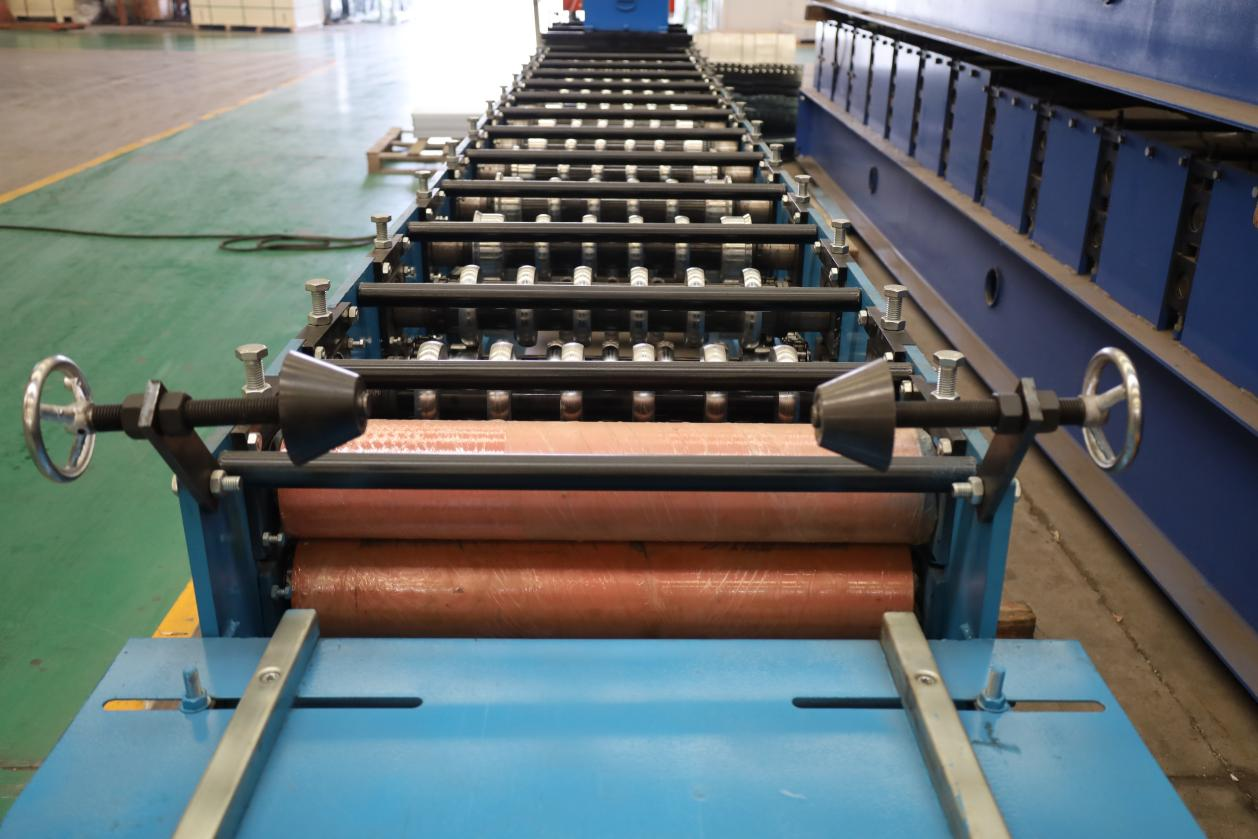

Feeding width

300-1000mm

10

Vertical plate thickness

14mm

use of U-shaped vertical plate for more stability

11

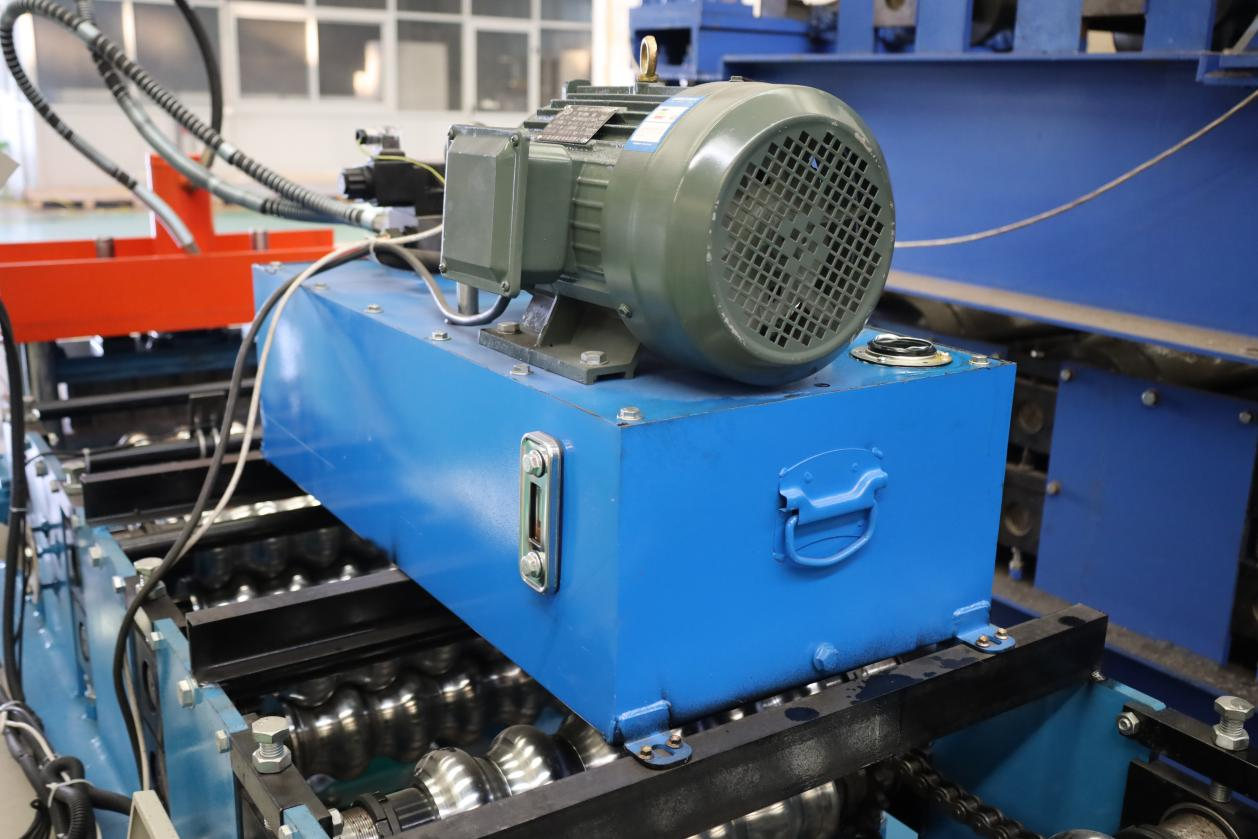

Hydraulic system

7.5kw

12

Forming Shaft

45# steel with grinding process

13

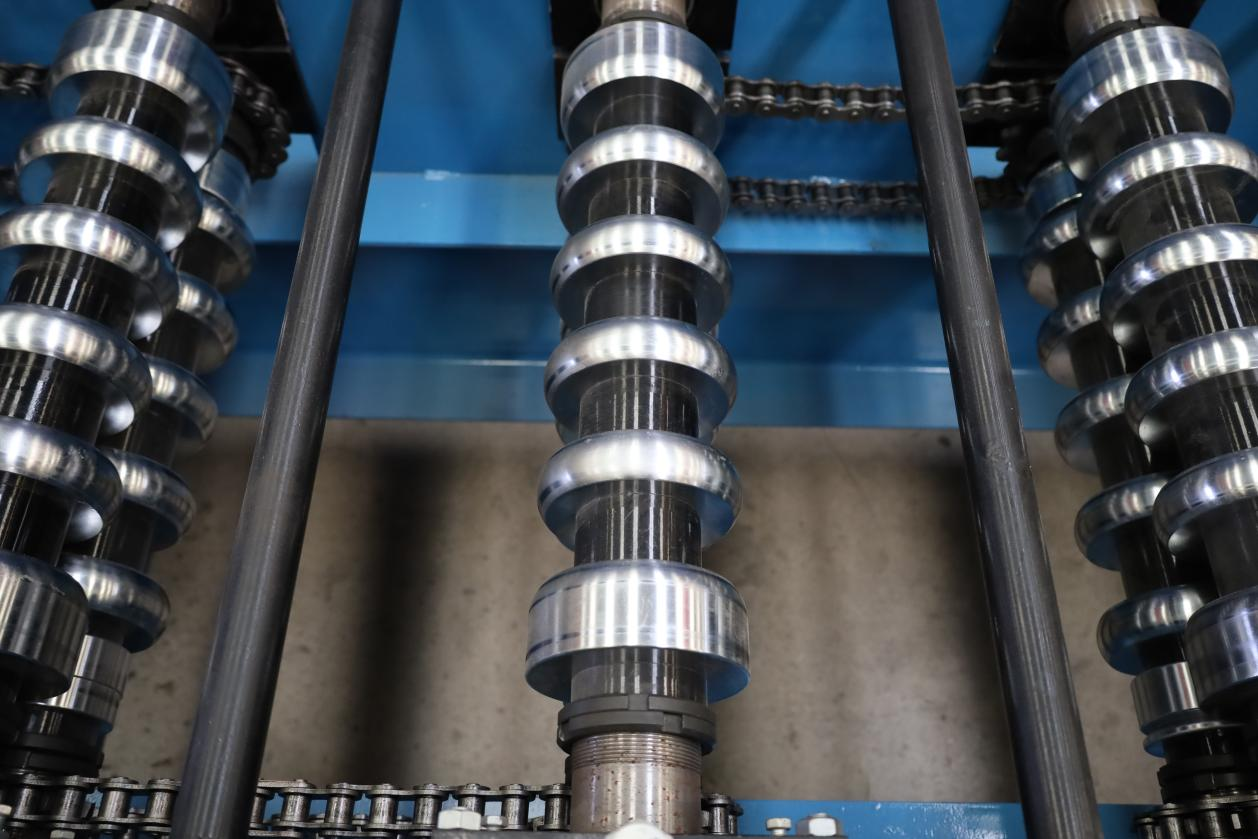

Forming Roller

45# steel with hard chrome coating

14

Cutting Blade

Cr12 MoV with hard treatment

15

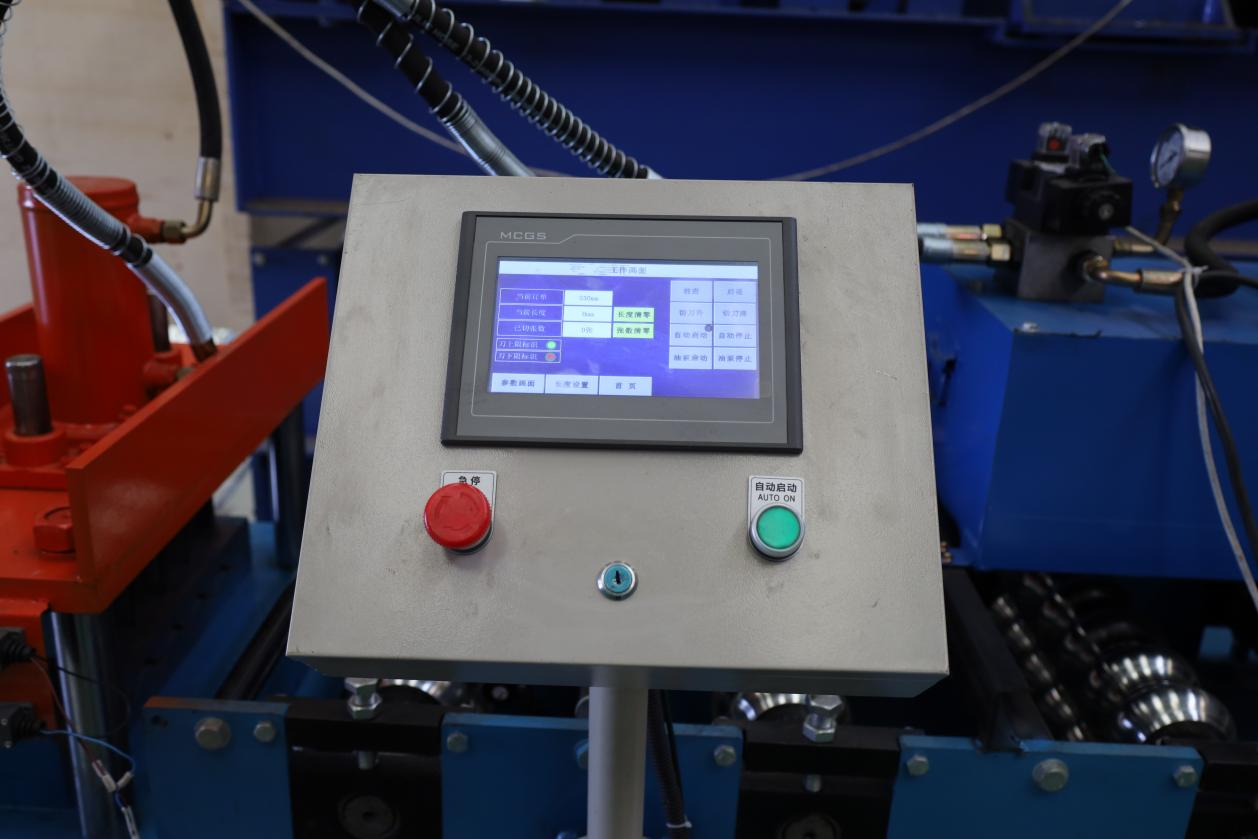

Control System

DELTA PLC& transducer, others are SCHENIDER etc.

16

Electrical motor

HEB China quality brand

17

Bearing

China quality brand

18

Chain

1 inch  China quality brand with heat treatment
