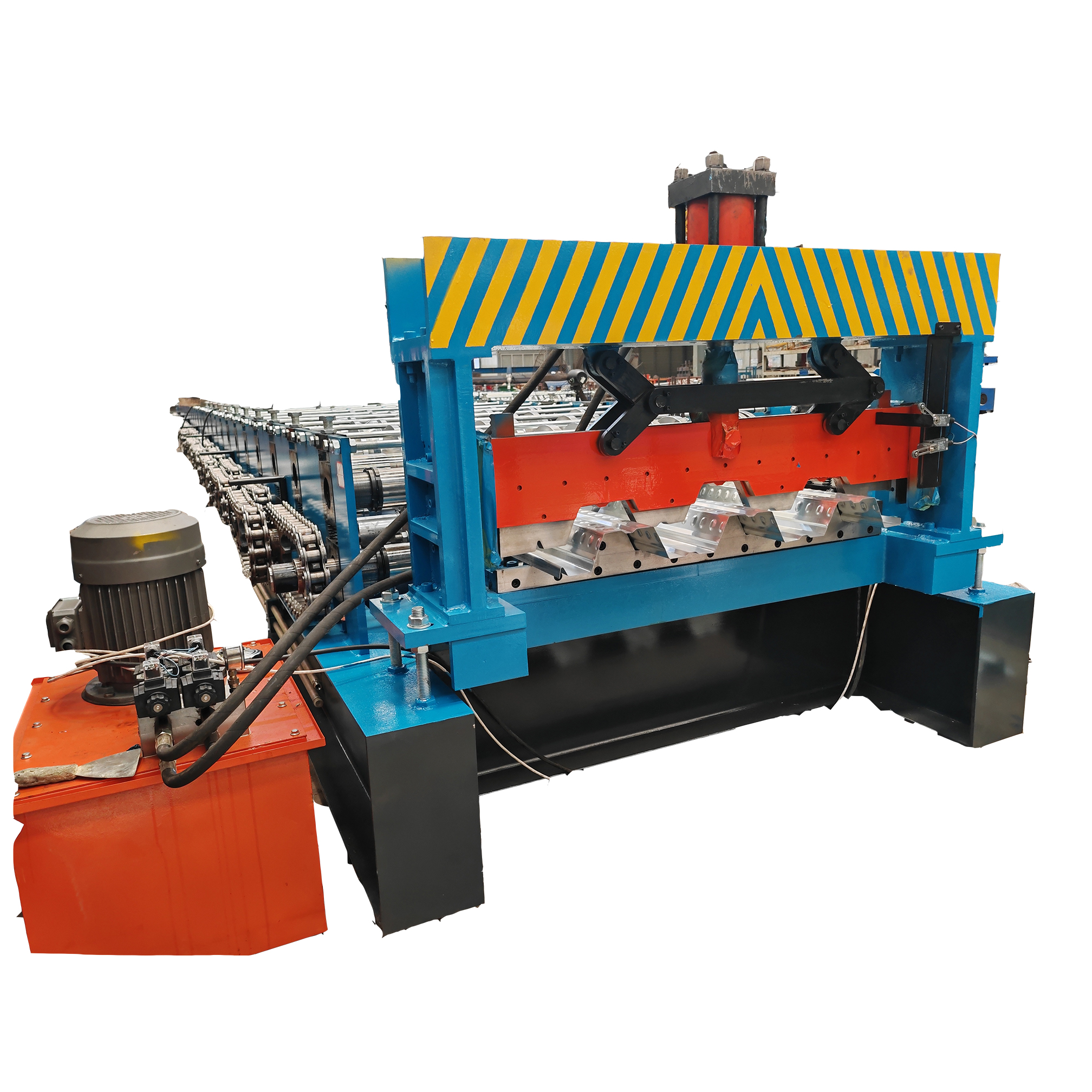

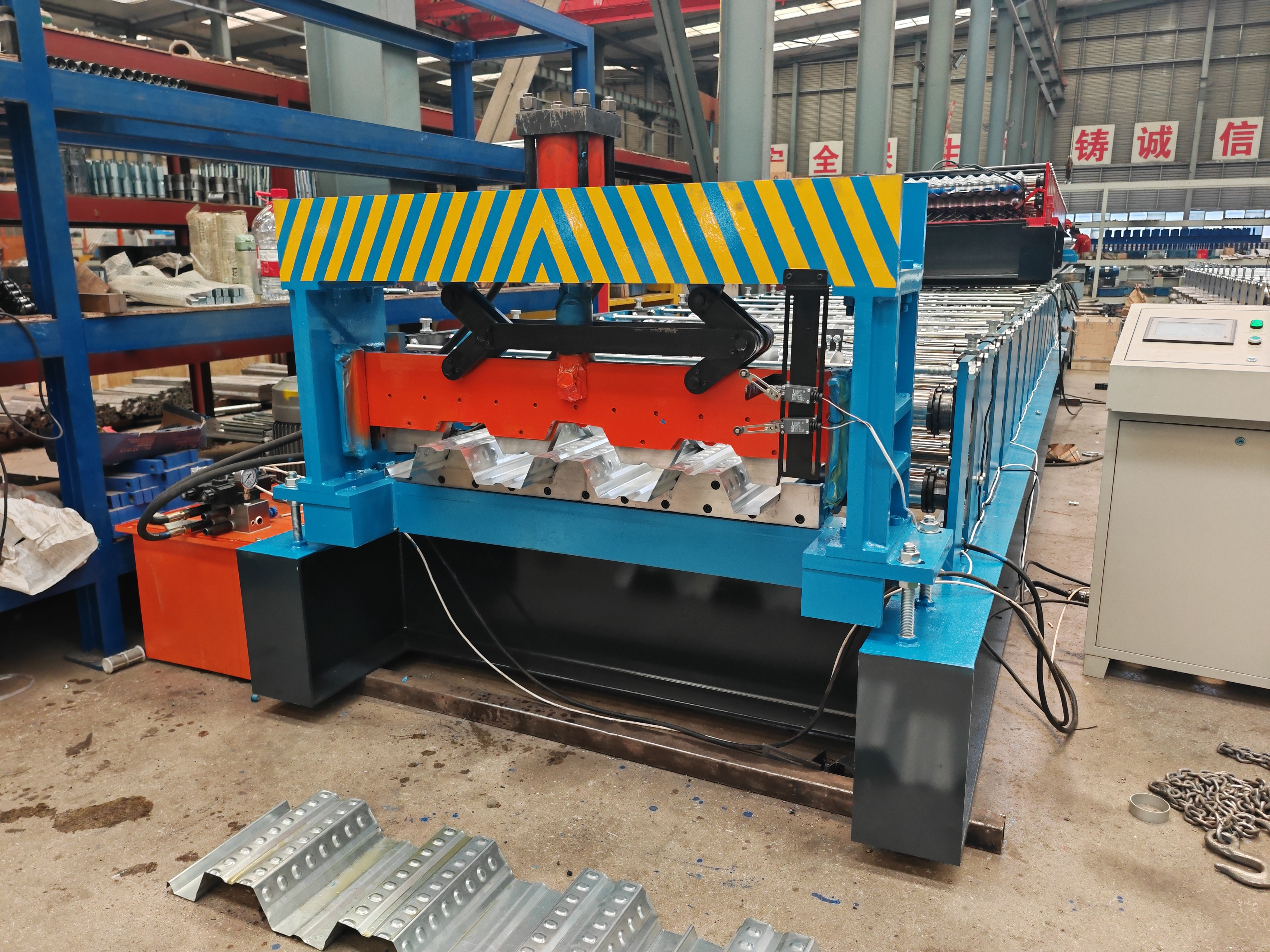

Effective Width 915 Floor Deck Machine Steel Sheet Profile Metal Roll Forming Machine
Product descriptions from the supplier Overview
PRODUCT DESCRIPTION OF Zhongke Floor Deck roll formimg machine
Leading a new era of intelligent construction, floor plate machine - automated production, accurate and efficient!" One-click operation, rapid prototyping, greatly improve production efficiency and quality. Precision cutting, seamless splicing, for the floor plate production into the scientific and technological power. Choosing us is to choose efficient, energy-saving and environmentally friendly construction methods to create a brilliant tomorrow for the construction industry!if you are looking for the best low-priced double-layer roof tile press machine, please consult us now!
PRODUCT DESCRIPTION
| item | Floor Deck sheet tile making roll forming machine |
| Suitable to process | Color alu-zinc steel coil |
| Roller | 18Rows |
| Dimensions | 7*1.6*1.8m |
| Motor Power | 5Kw |
|
Pump Station Motor |
4Kw |
| Thickness of the plate | 0.3-1.2mm |
| Productivity | 0-20m/min |
| Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC |
| Diameter of the roller | Φ70mm |
| Weight | About 4500kgs |
|
Main structure of the machine |
350H beams |
| Processing precision | Within 1.0mm |
|
Side panel of machine |
16mm |
| Chain Wheel and Cycle Chain | 1.2 Inch |
| Voltage | 380V 50Hz 3phases or as customer's need |
| Control system | PLC control (Delta) |
| Frequency system | Delta |
|
Drive mode |
Motor driver |
| Touch screen | Delta |
| Rolling materials | 45# forging steel with chromium plate |
| Length Tolerance | ±2mm |
MACHINE DETAILS OF Zhongke Top Hat Section Channel Machine
 |

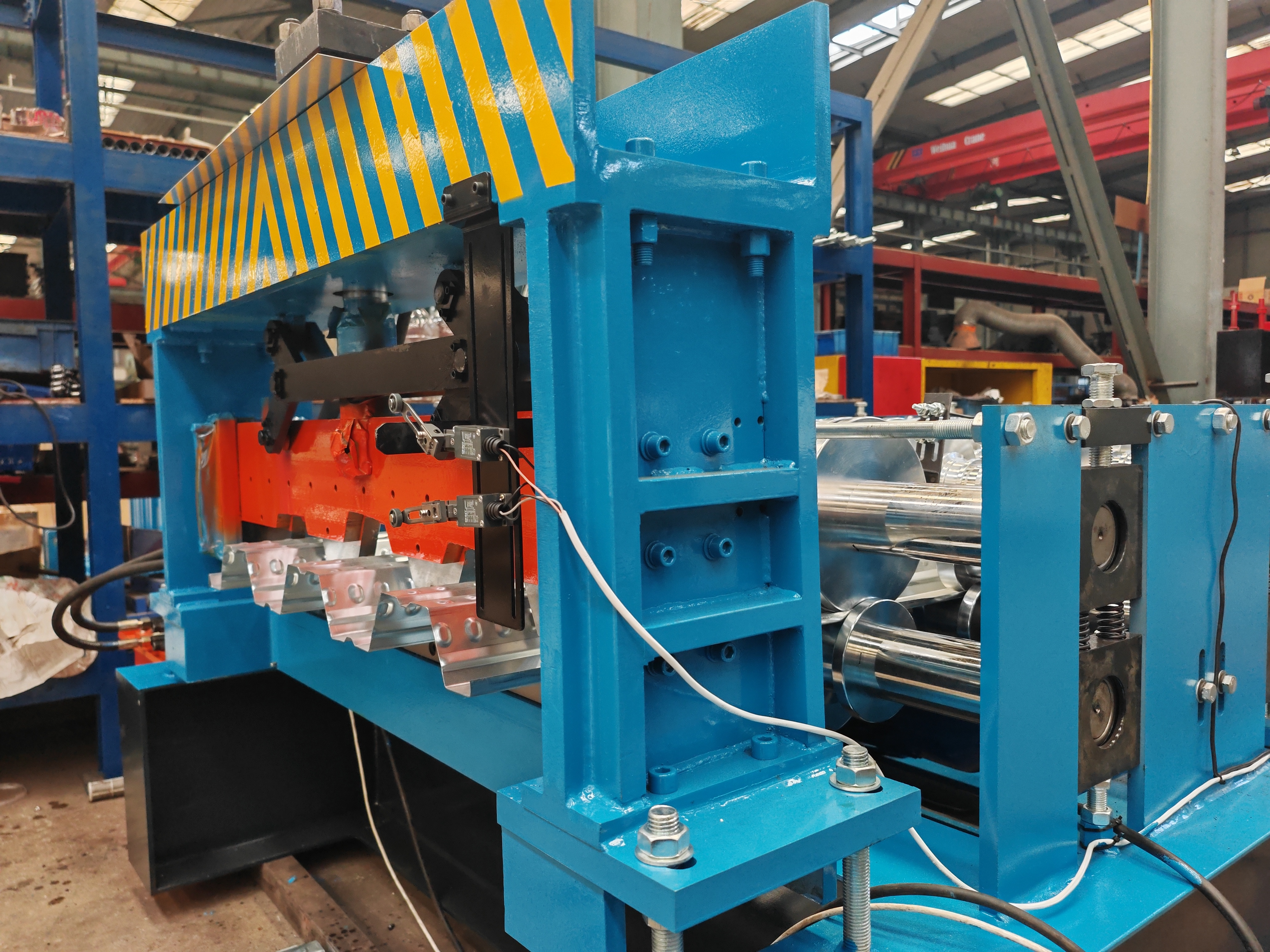

Shearing head 1.Material is Cr12 mov.16mm Double guide post+hydraulic drive 2.Guide post:45#steel Quenching is done before heat treatment, can guarantee the surface smoothness and hardness.
|
|

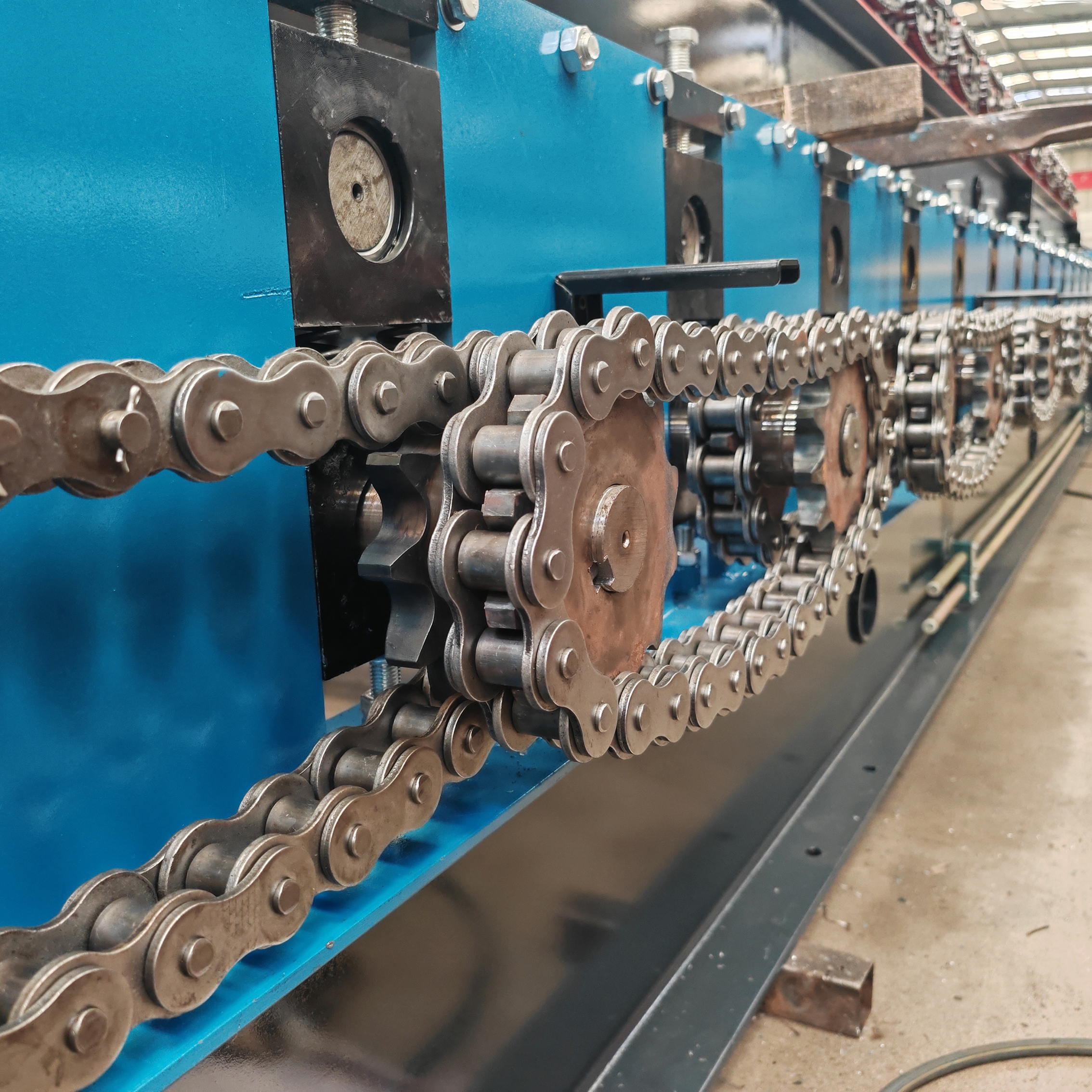

1.2 inch chain The 1.2-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.
|
 |
 |
High strength top screws High-strength top screws are crucial components in a roll forming machine, providing unparalleled stability and precision, ensuring flawless metal sheet shaping for our customers' manufacturing processes.
|
|

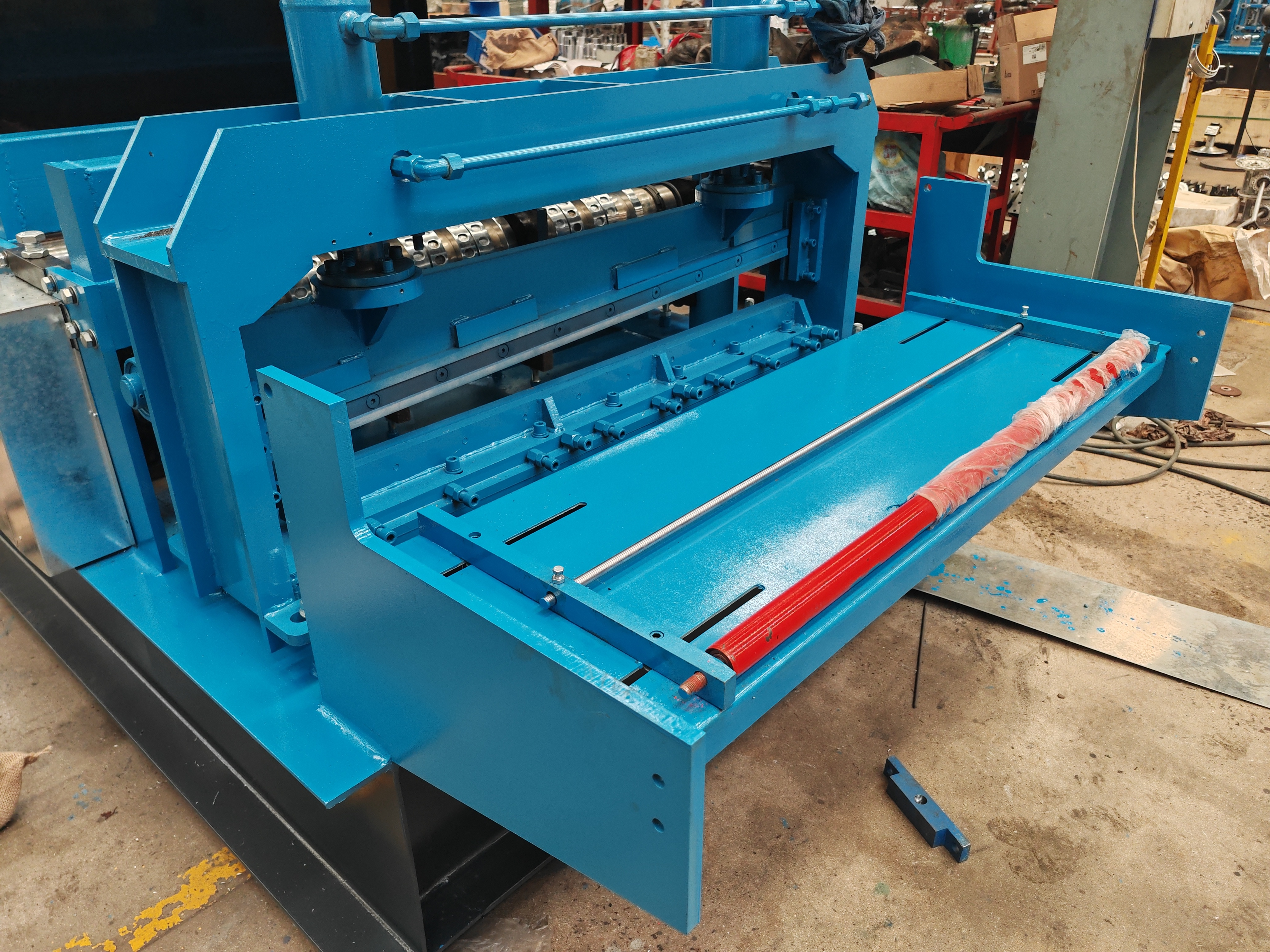

Feeding table 1.Function:Put the sheet into the machine 2.Benefits:Can ensure the sheet smooth and flat 3.Hand knife:Can save material
|
 |
 |

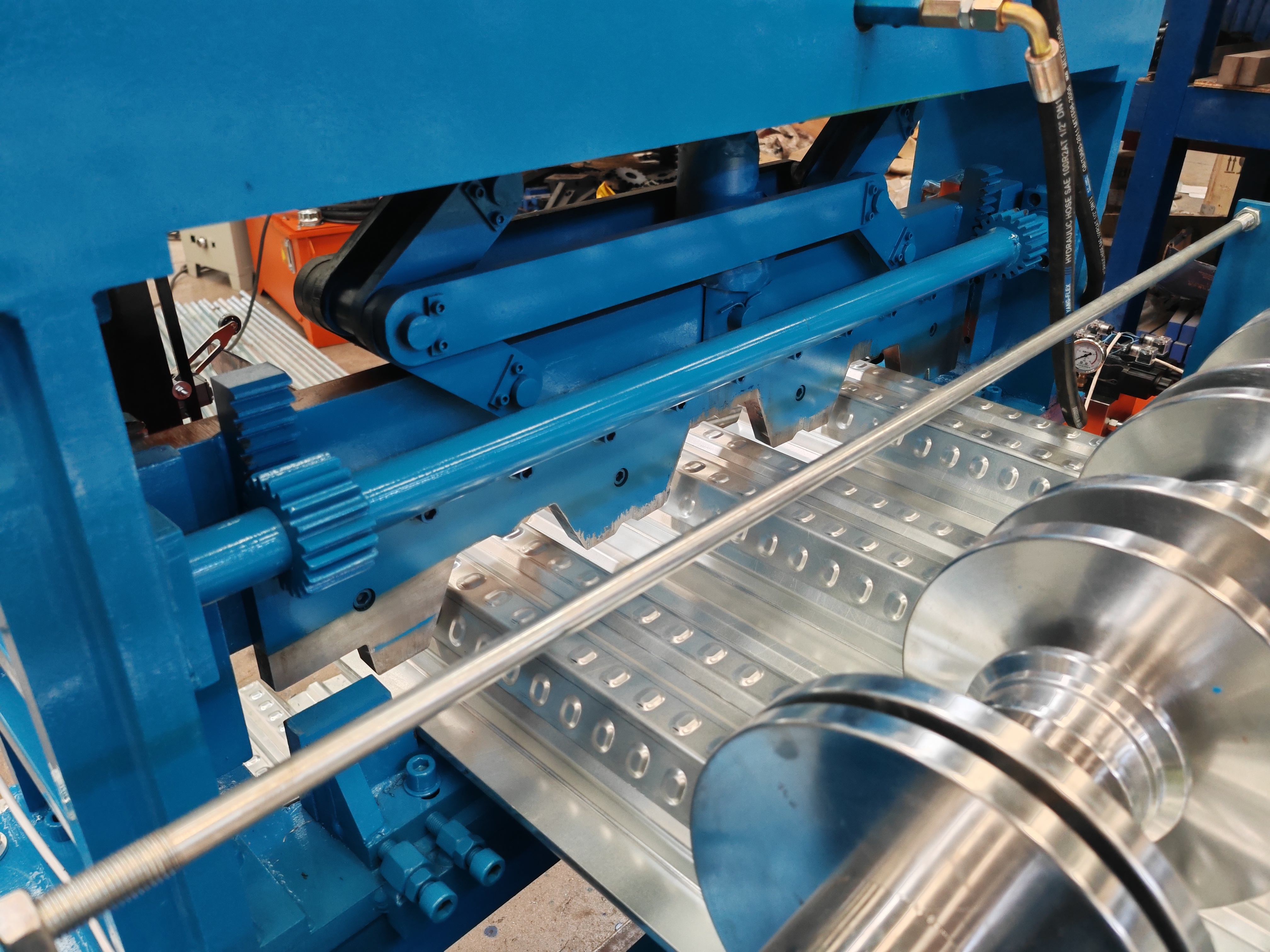

Gear and rack and rod combination The combination of gears, rashes and rods in our roll forming machines ensures precise and synchronized movement, giving the machine greater stability and balance in shearing
|
|

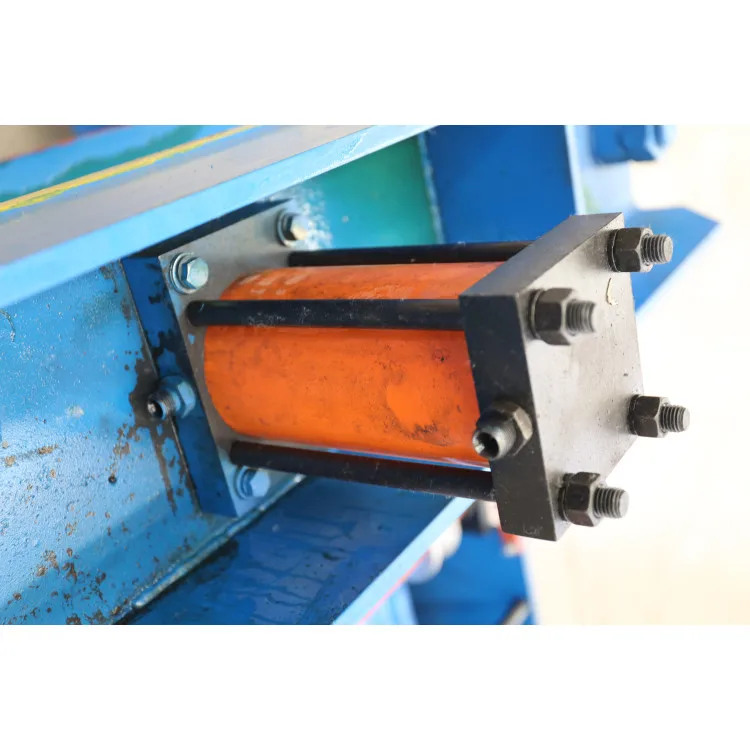

Cylinder protection Cylinder protection is a crucial component of our roll forming machine, ensuring the durability and longevity of the equipment. It safeguards the precision-engineered cylinders, enhancing performance and minimizing maintenance costs.
|
 |
 |

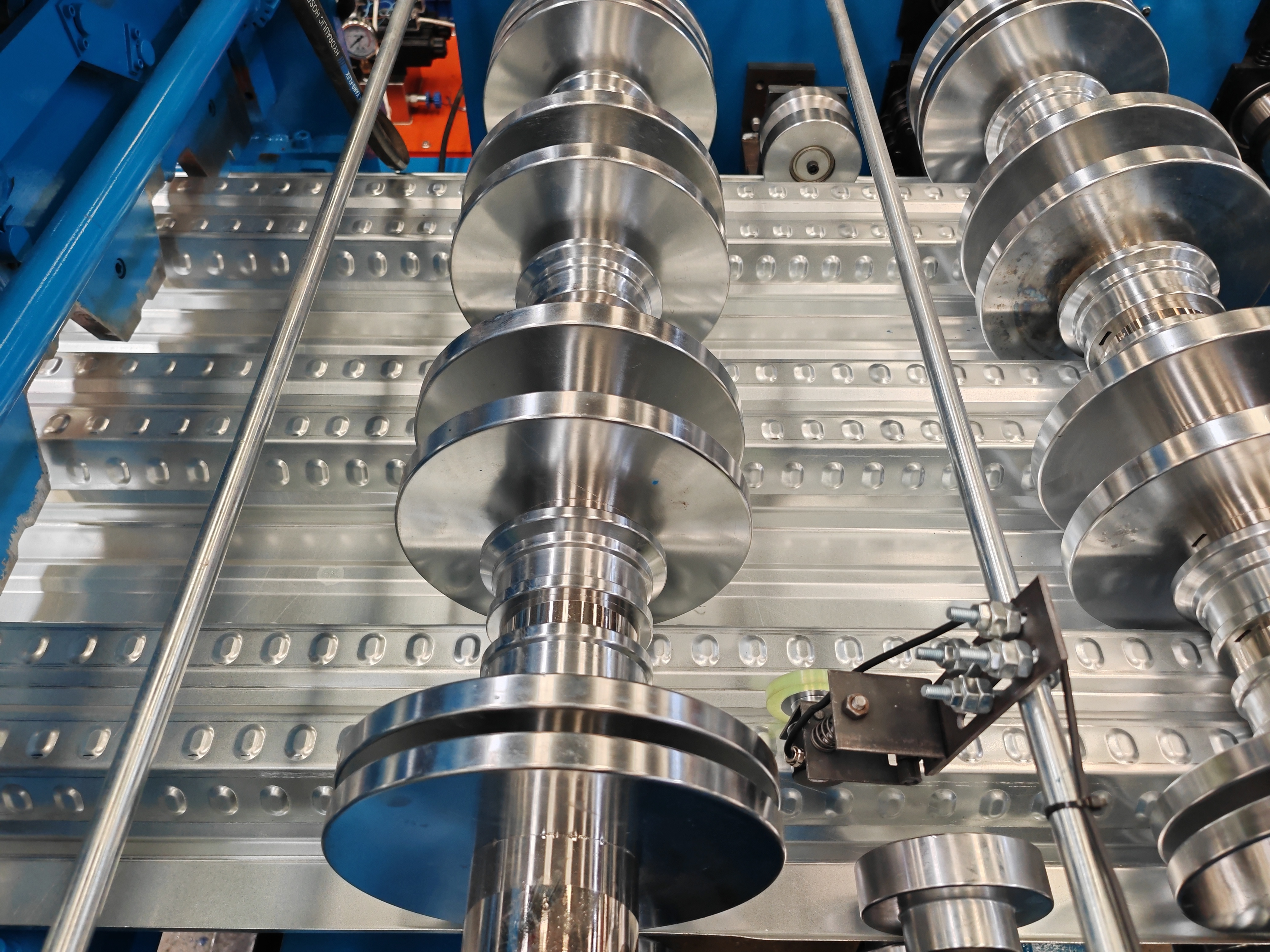

Chrome treated shaft and wheel The Chrome-treated shaft and wheel for our roll forming machine ensure exceptional durability and smooth operation. The chrome coating enhances resistance to wear and corrosion, prolonging the machine's lifespan and maintaining consistent performance.
|

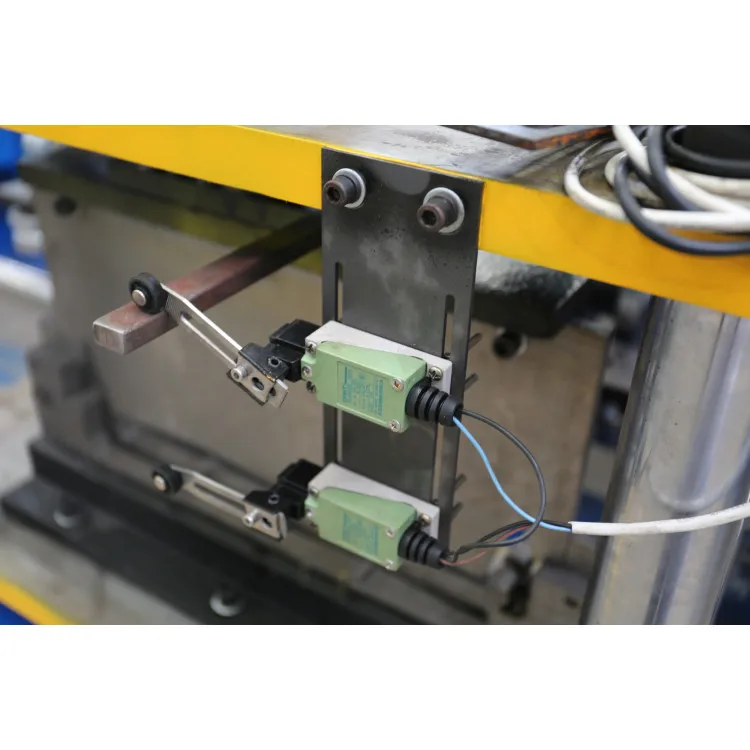

| Travel switch
The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.
|
 |
 |

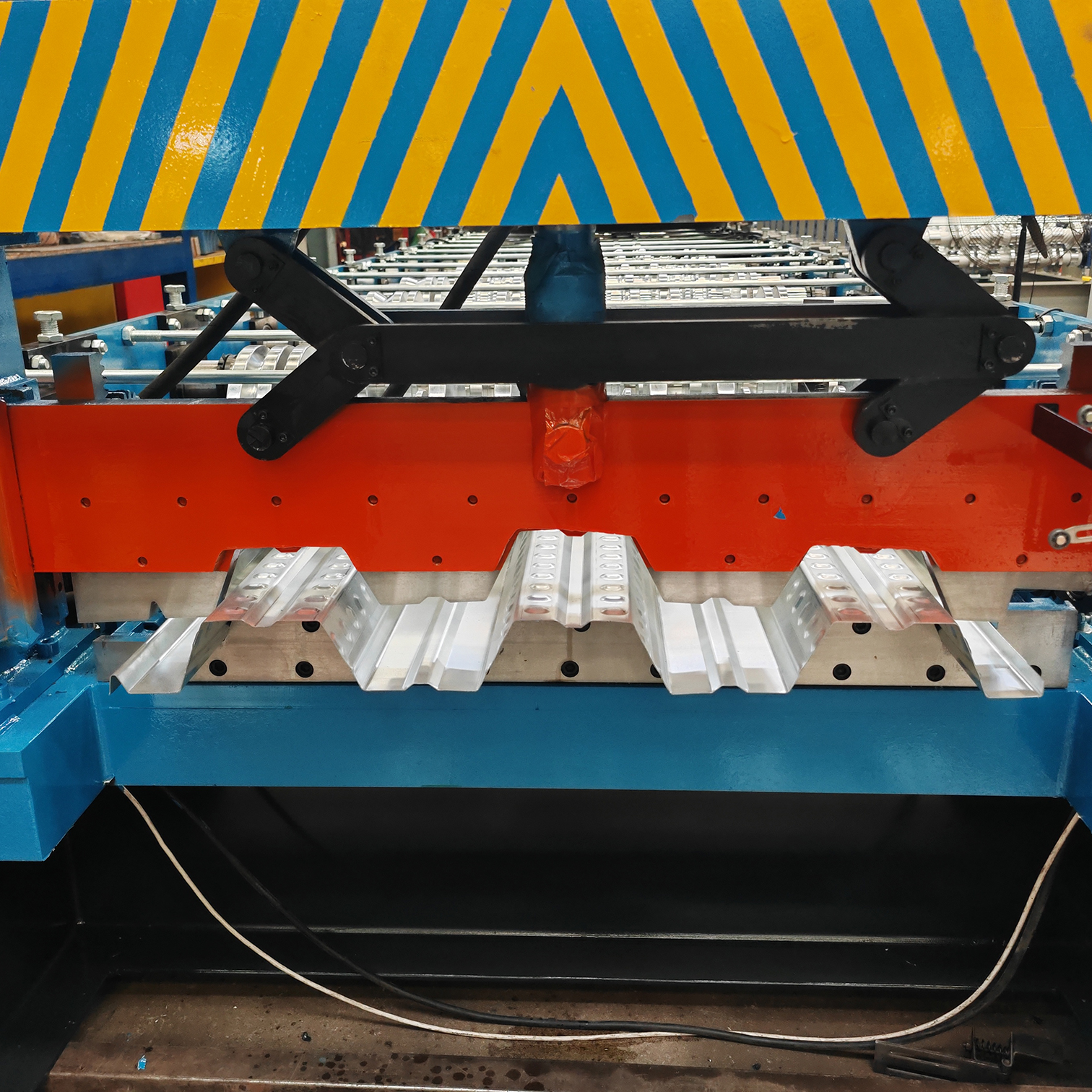

Guide post cutting head The Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.
|
Free accessories
COMPANY INTRODUCTION
Zhongke Roll Forming Machine Factory has over 20 years of experience in manufacturing roll-forming machines, with a skilled team of 100 workers and a 20,000 square meters workshop. it is known for its high-quality machines, personalized services and fiexdble options, including custom design and manufacturing At Zhongke Roll Forming Machine Factory, they are committed to providing personalized and flexible services to meet the specific needs of so many clients, they offer custom design and manufacturing services, Their product range includes Light Gauge Building Steel Frame Roll Forming Machines, Glazed Tile Forming Machines, Roof Panel and Wall Panel Molding Machines, C/Z Steel Machines, and more. zhongke is passionate about their work and committed to exceeding clients' expectations. Hope you for considering Zhongke Roll Forming Machine Factory!
PRODUCT LINE
OUR CUSTOMERS
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
