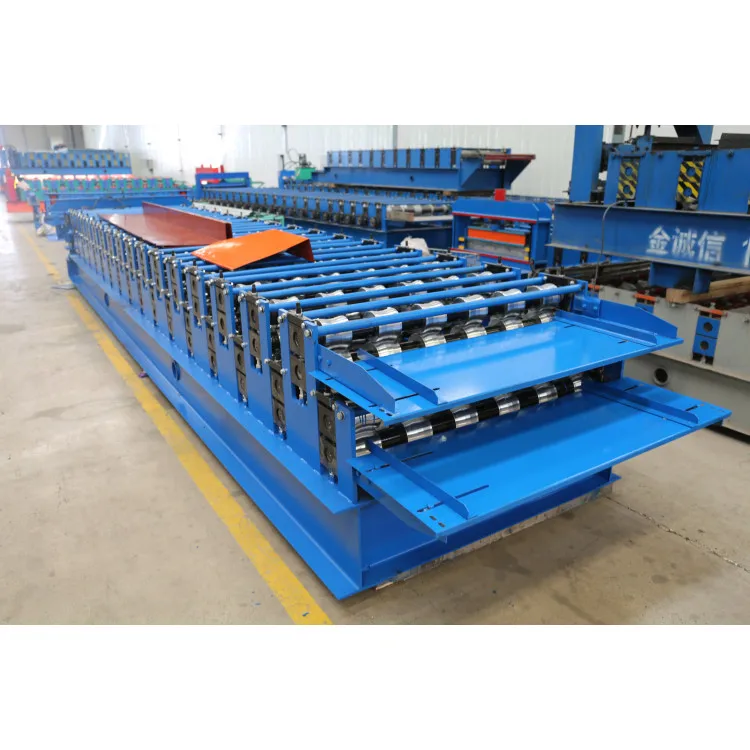

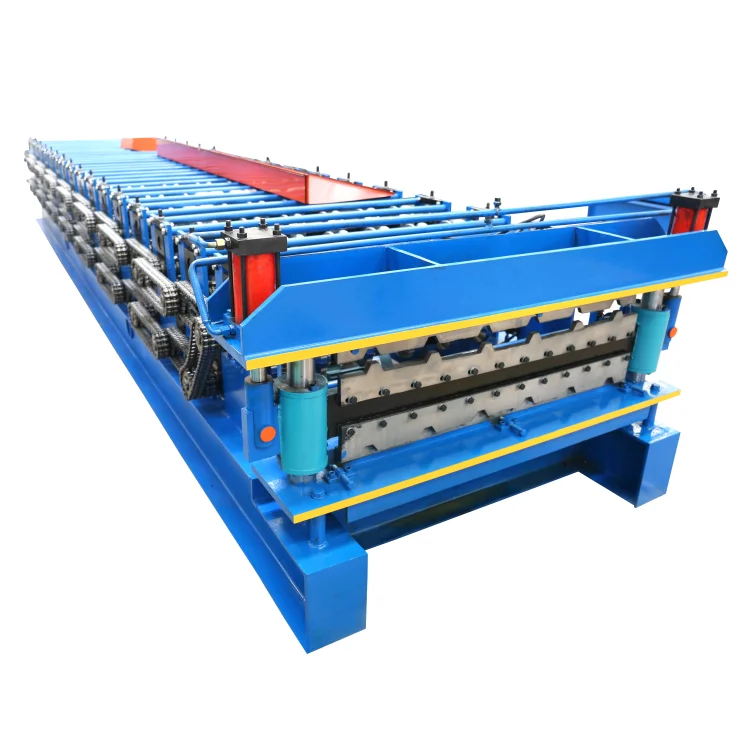

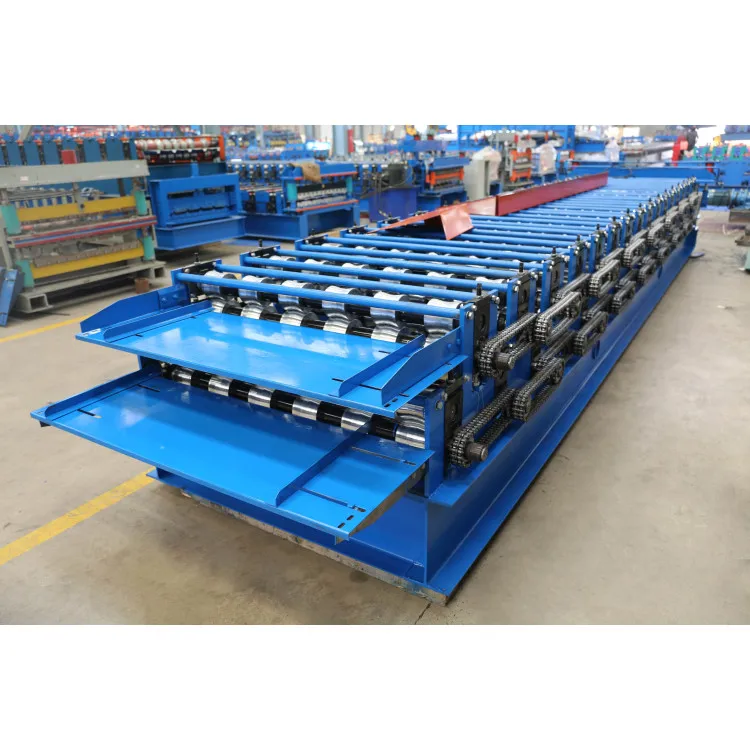

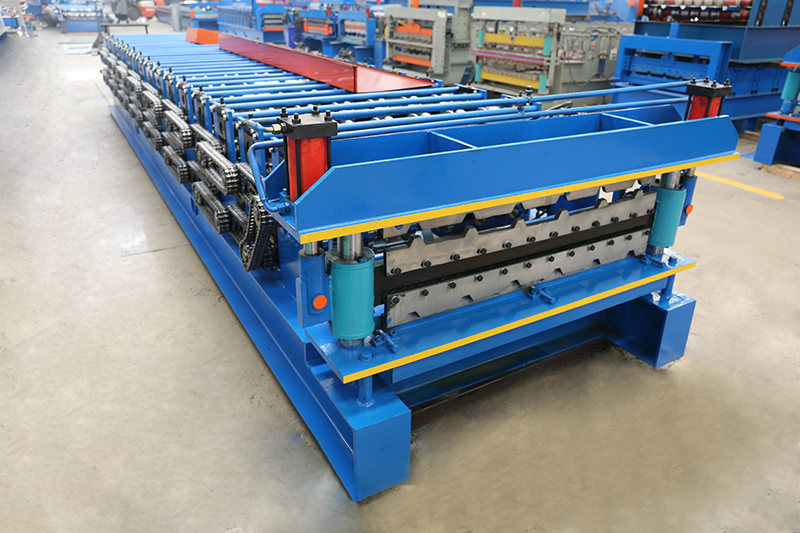

Double Layer Corrugated Metal Roofing Sheet Roll Forming Machine

Short Description:

1. Coil thickness: 0.3-0.7mm

2. Coil width: 2000-3000 mm

3. Yield limit: 245MPa

4. Coil speed: fast and efficient

5. Adjustable diameter: flexible operation

Send email to us

Product Detail

Product Tags

Product Description

Formed Material	PPGI,GI,AI	Thickness:0.3-0.8 mm
Decoiler	Hydraulic decoiler	Manual decoiler(will give you as free)
Main body	Roller station	18rows(As your requirement)
	Diameter of shaft	70mm solid shaft
	Material of rollers	45#, hard chrome plated on the surface
	Machine body frame	300H steel
	Drive	Double Chain transmission
	Dimension(LWH)	About 7X1.2X1.3m
	Weight	About 2-12 ton
Cutter	Automatic	cr12mov material, no scratches, no deformation
Power	Main Power	3 kw - 7.5KW or As your requirement
Voltage	380V 50Hz 3Phase	As your requirement
Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
Forming Speed	8-12m/min	The speed depends on the shape of the tile and the thickness of the material.

Guide post cutting head

The Guide Post Cutting Head is an essential component for roll forming machines, ensuring precise and clean cuts. Its advanced design guarantees accuracy, efficiency, and seamless production.

Square Tube Feed Platform

The Square Tube Feed Platform is an essential component of our roll forming machine, designed to ensure precise material feeding and alignment, guaranteeing seamless and accurate production processes.

inch chain

The 1-inch chain is an essential component of our roll forming machine, ensuring smooth and precise material feeding. Its robust design and reliability guarantee consistent production quality.

COMPANY INTRODUCTION

PRODUCT LINE

Packaging & Shipping

PACKAGING & LOGISTICS

Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!

FAQ

Q1: How to play order?

A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company .
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
