Customed 12m Roof Sheet Automatic Stacker
Full automatic:easy operation for finished roof sheet stacking. Save labor Provide customized:3m/6m/12m normal length stacker,can also customized for you use with your roofing tile machine.
1.Auto stakcer for reception of the cut profiles: allows free unloading of each cut profile and automatic placement on the stack of previously made products.
2.Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet.
3.Unloading of the finished products (moving of the stack of finished products from the production line): mechanic, it will be possible to pick the stack using a fork-lift or in a similar manner (fork-lift will be provided by customer).
4.Max. Width of the sheet: 1250 mm
5.Unloading Power: pneumatic (the air pump is provided by the user).
6.Stack table is moveable (left-right)

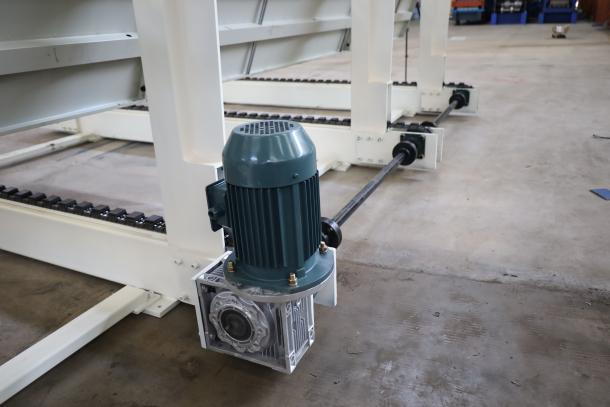

7.Transmission power:3 kw
8.Drive of transmission by 1.0 inch double line chains
9.Color: blue or base on customer request
 |

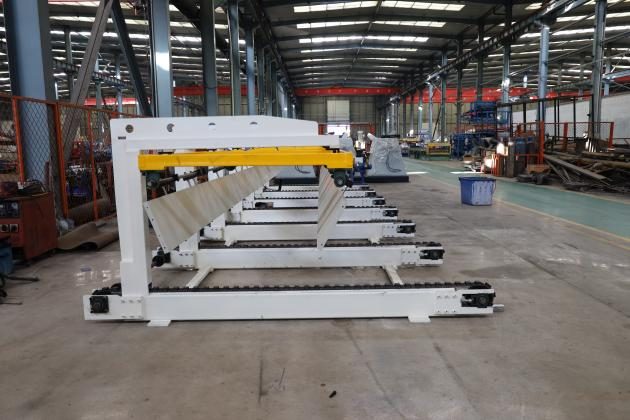

Receiving Device | |
 |

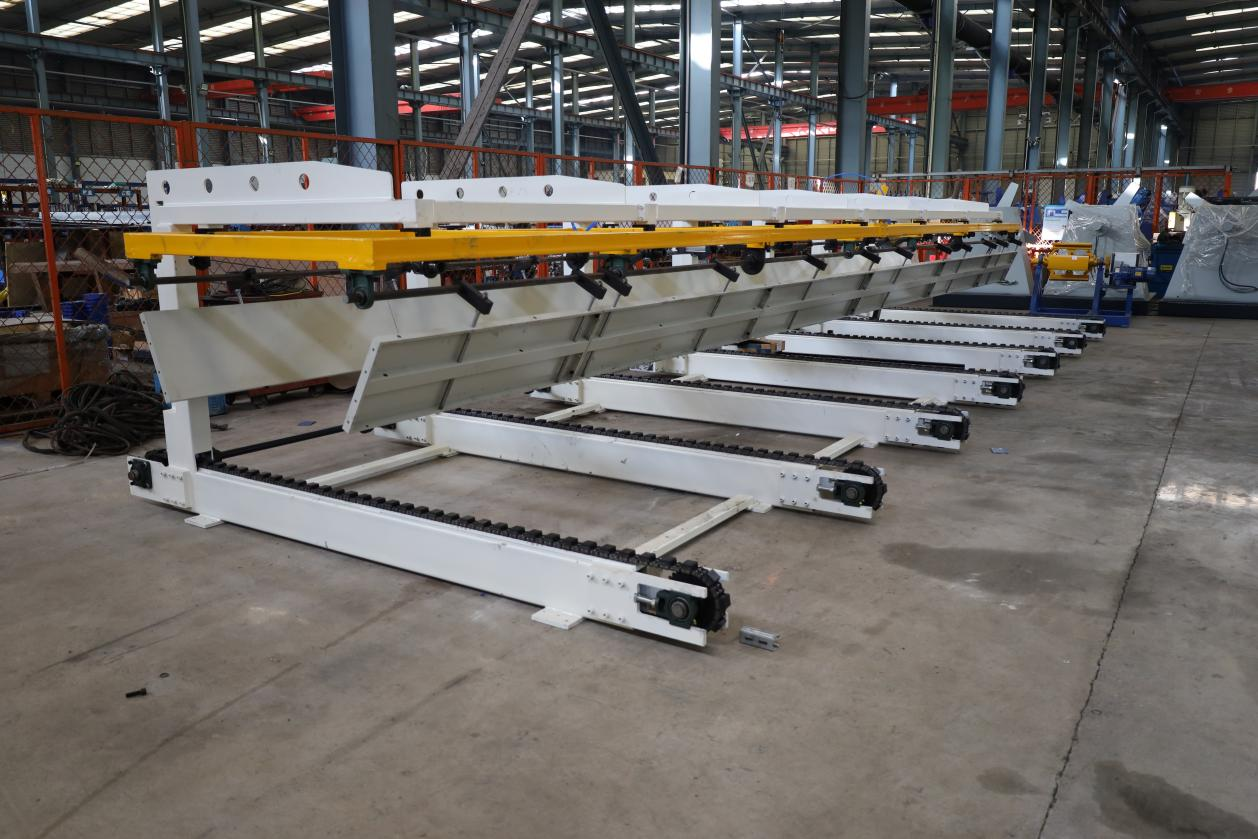

Automatic Push-Pull Device |
|
 |

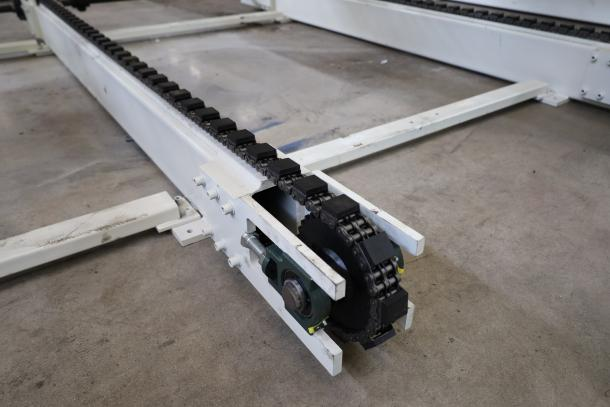

Conveyor SystemThe chain is fitted with rubber blocks to protect material surface
|
|
 |

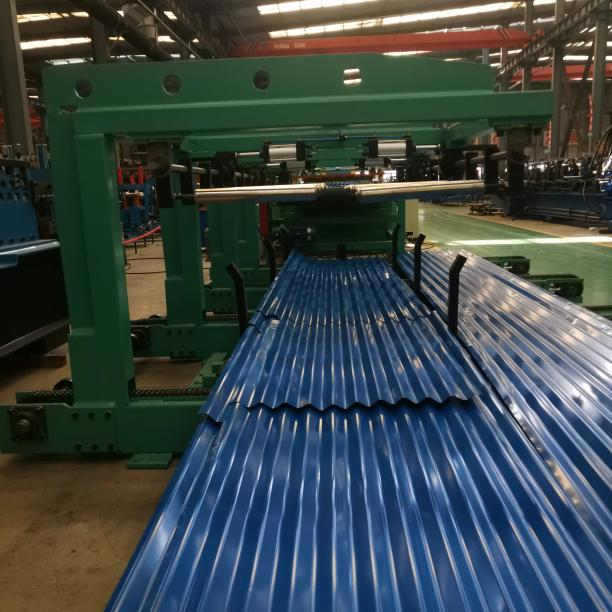

Application Showing |
|
