Product details of zhongke c/z purlin forming machinePRODUCT DESCRIPTION OF Zhongke Corrugated Single Layer Roll Forming Machine

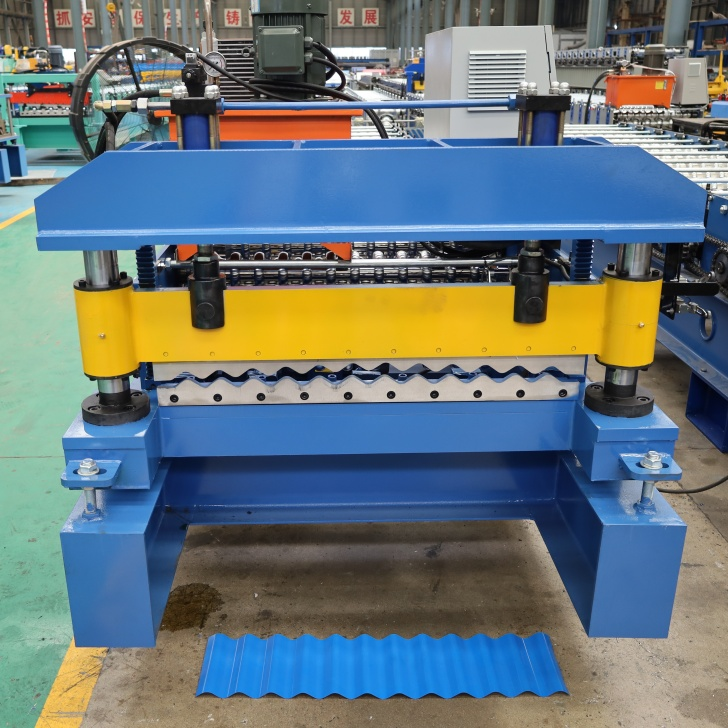

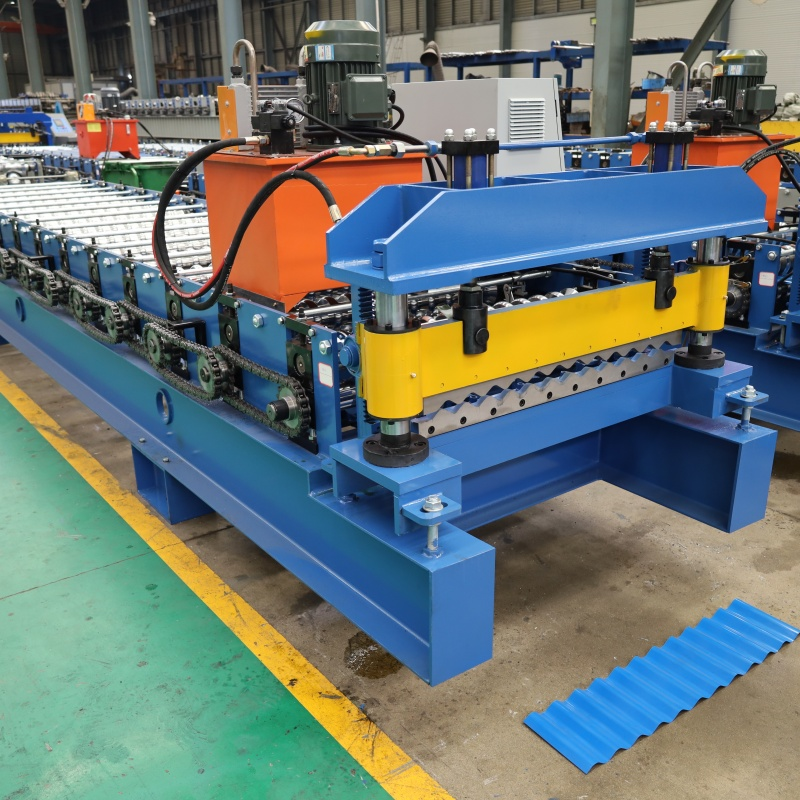

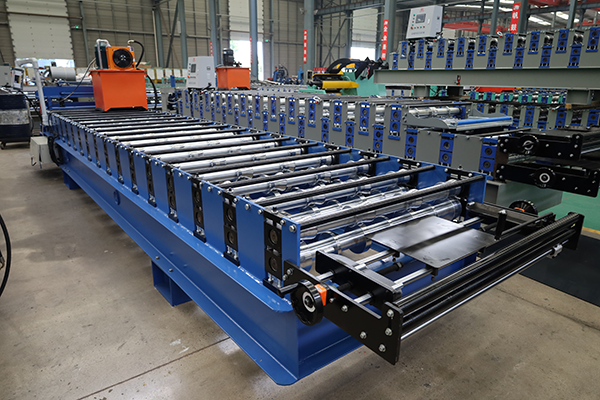

The corrugated single layer roll forming machine
The working principle of the corrugated single layer roll forming machine is relatively simple, mainly through the motor to drive the relative rotation of the upper and lower press rolls on the press type host. Under the action of the feeding device, the metal sheet enters between the press rollers and forms a tile or sheet with a corrugated shape after pressing. The whole pressing process has a high degree of automation, high production efficiency, and stable and reliable product quality.
PURLIN SPECIFICATIONS OF Zhongke Corrugated Single Layer Roll Forming Machine
| Strip width | 1000mm. |
| Strip thickness | 0.3mm-0.8mm. |
| Steel coil inner diameter | φ430~520mm. |
| Steel coil outer diameter | ≤φ1000mm. |
| Steel coil weight | ≤3.5 tons. |
| Steel coil material | PPGI |
MACHINE DETAILS OF Zhongke Corrugated Single Layer Roll Forming Machine

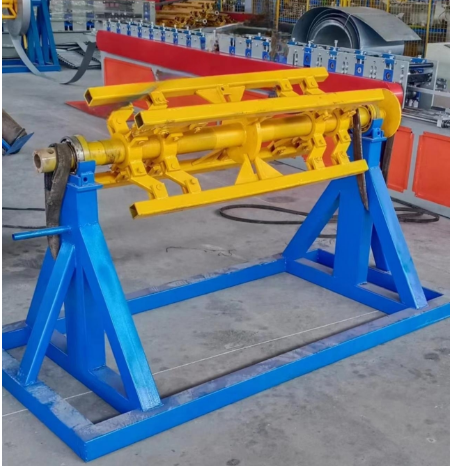

Coiler
Material: steel frame and nylon shaft
Nuclear load 5t, two free
Forming
system
The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers.

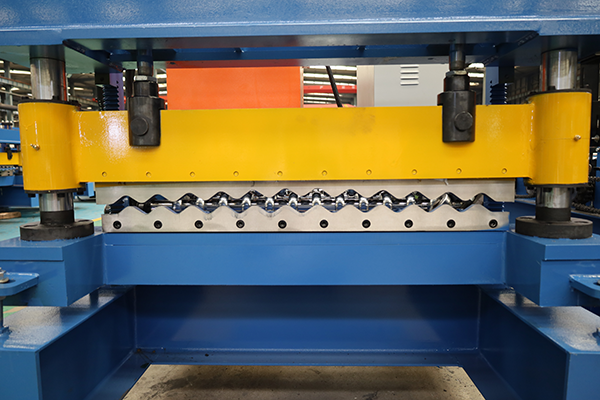

Shearing
System
1.Function: cutting action is controlled by PLC. The main machine
automatically stops and the cutting will take place. After the
cutting, the main machine will automatically start.
2.Power supply:electric motor
3.Frame: guide pillar
4.Stroke switch: non-contact photoelectric switch
5.Cutting after forming: cut the sheet after roll forming to required
length
6.Length measuring: automatic length measuring

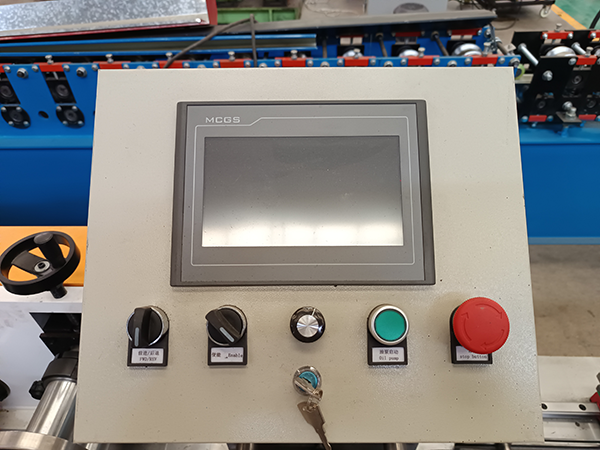

Electric
Control
System
The whole line is controlled by PLC and touch screen. The PLC
system is with high-speed communication module, it is easy for
operation. The technical data and system parameter can be set by
touch screen, and it is with warning function to control the work of
whole line.
1.Control the cutting length automatically
2.Automatic Length measurement and quantity counting
(precision 3m+/-3mm)
3.Voltage:380V, 3 Phase，50Hz (As per buyer`s request)

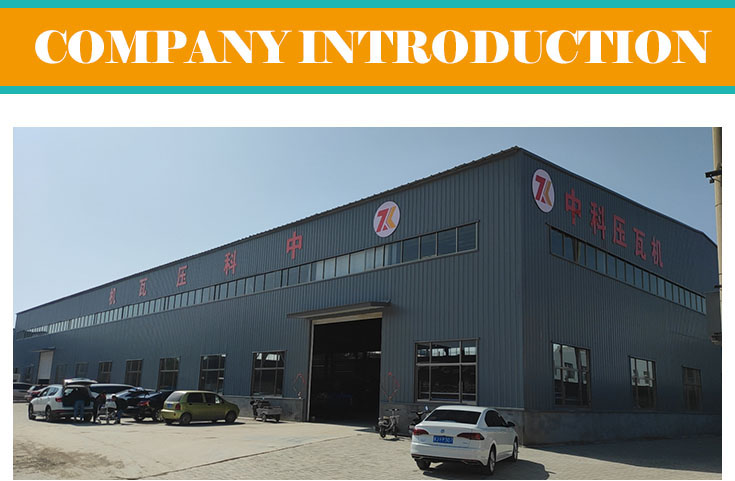

COMPANY INTRODUCTION OF Zhongke Corrugated Single Layer Roll Forming Machine
Zhongke Roll Forming Machine Factorydriven by science and technology innovation, focus on high-quality tile pressing equipment research and development and production. We are committed to providing intelligent, efficient and durable machine production solutions that meet the diverse needs of the construction industry and ensure that our products are robust and durable to help the construction industry thrive
OUR CUSTOMERS OF Zhongke c/z purlin forming machine

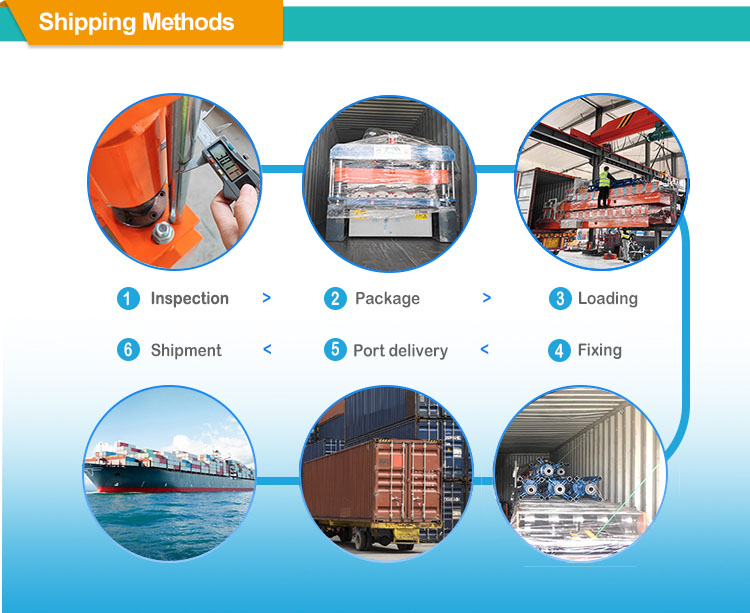

FAQPACKAGING & LOGISTICS OFSlitting Machine
FAQ
Q1.How to get a quotation?
A1) Give me the dimension drawing and thickness, it is very important.
A2) If you have requirements for production speed, power, voltage and brand, please explain in advance.
A3) If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q2. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
