Austrialian Door Roller Shutter Door Roll Forming Machine
Product descriptions from the supplier Overview
PRODUCT DESCRIPTION OF Zhongke Austrialian Door Roller Shutter Door Roll Forming Machine
The Zhongke shutter door roll forming machine
1. The blade only has cr12mov, which is of good quality, strong and wear-resistant.

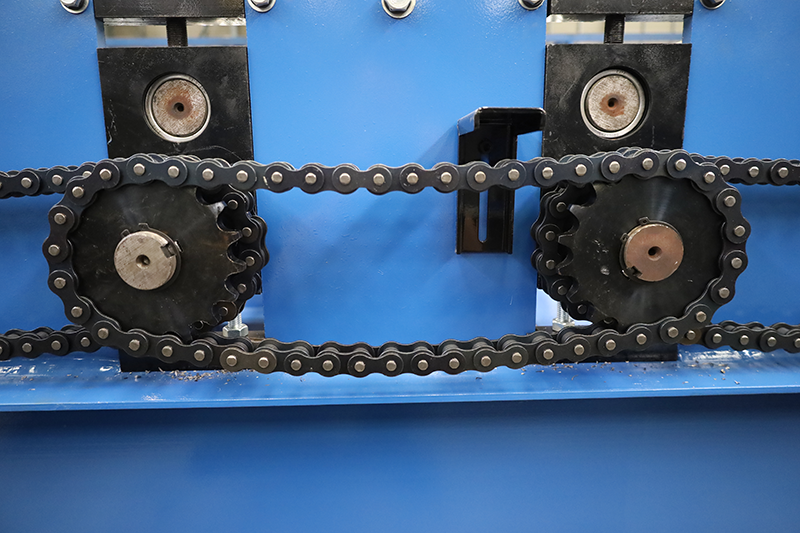

2. The chain and middle plate are widened and thickened, and the production performance is more stable.
3. The wheel adopts overtime electroplating, and the coating reaches +0.05 mm.
4. The whole machine adopts shot blasting machine to remove rust, and spray both sides of the primer and the two sides of the topcoat to strengthen the adhesion of the machine to the paint, not only beautiful in appearance, but also not easy to wear.

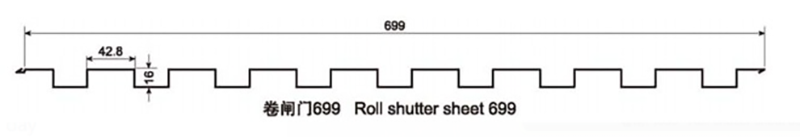

PURLIN SPECIFICATIONS OF Zhongke Austrialian Door Roller Shutter Door Roll Forming Machine
| Strip width | 1200mm. |
| Strip thickness | 0.3mm-0.8mm. |
| Steel coil inner diameter | φ430~520mm. |
| Steel coil outer diameter | ≤φ1000mm. |
| Steel coil weight | ≤3.5 tons. |
| Steel coil material | PPGI |
PURLIN SPECIFICATIONS OF Zhongke Austrialian Door Roller Shutter Door Roll Forming Machine
 |

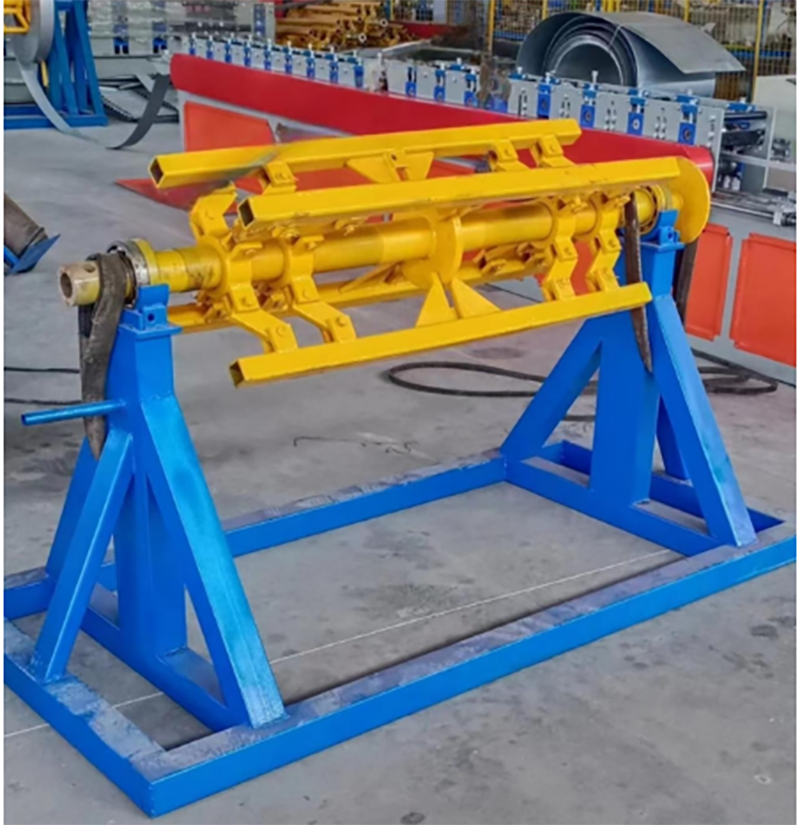

CoilerMaterial: steel frame and nylon shaftNuclear load 5t, two free |
 |
Sheet Guiding Device
|
 |

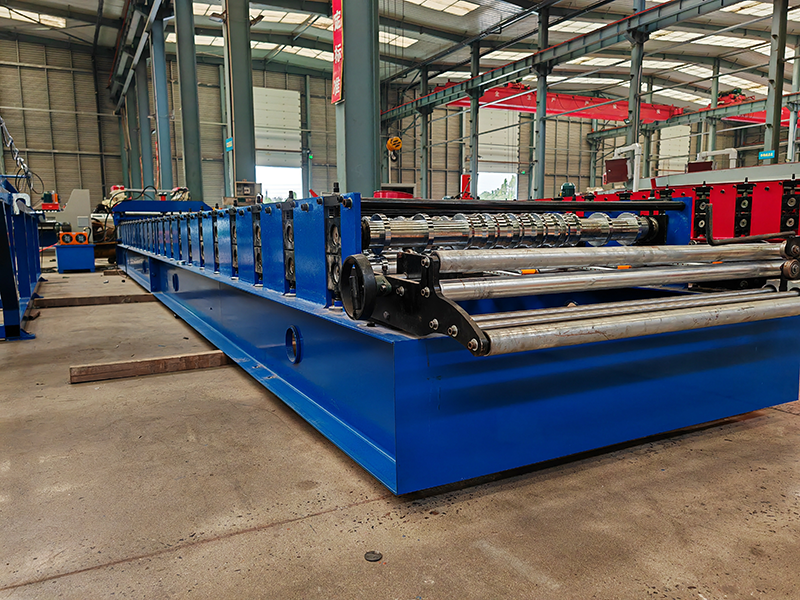

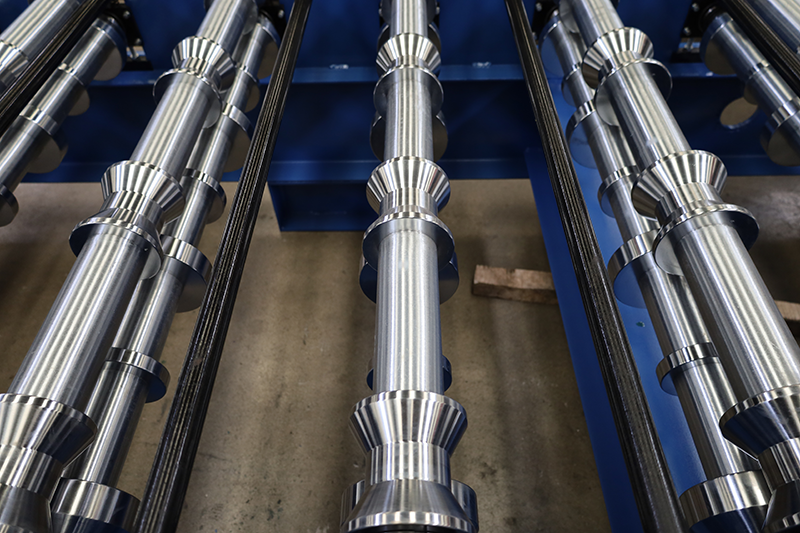

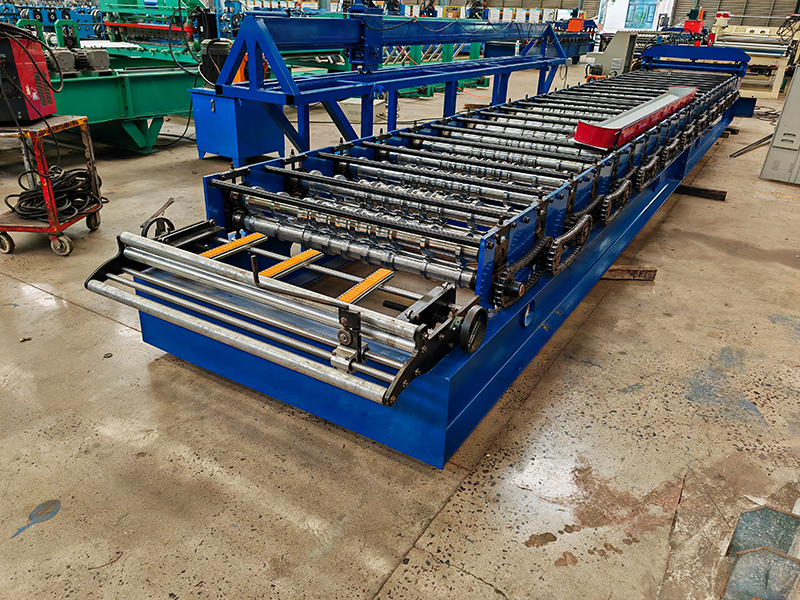

Forming systemThe Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers. |
 |

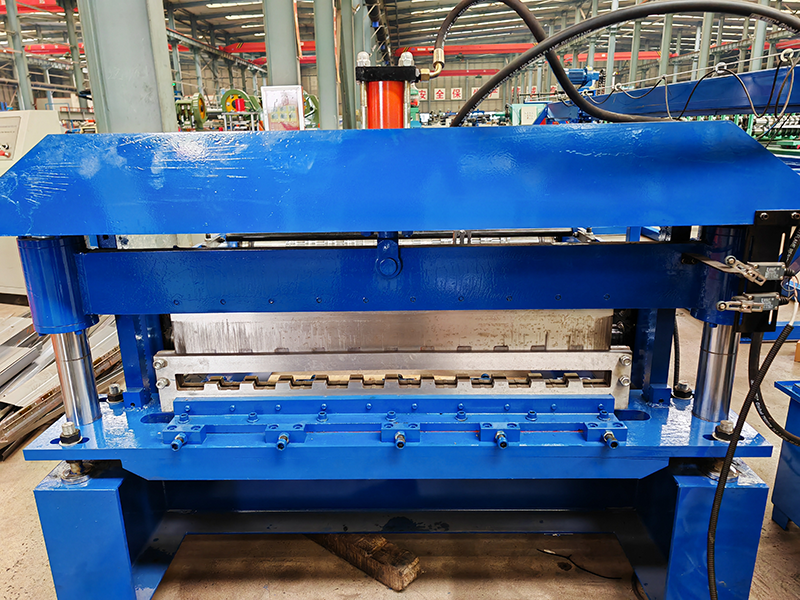

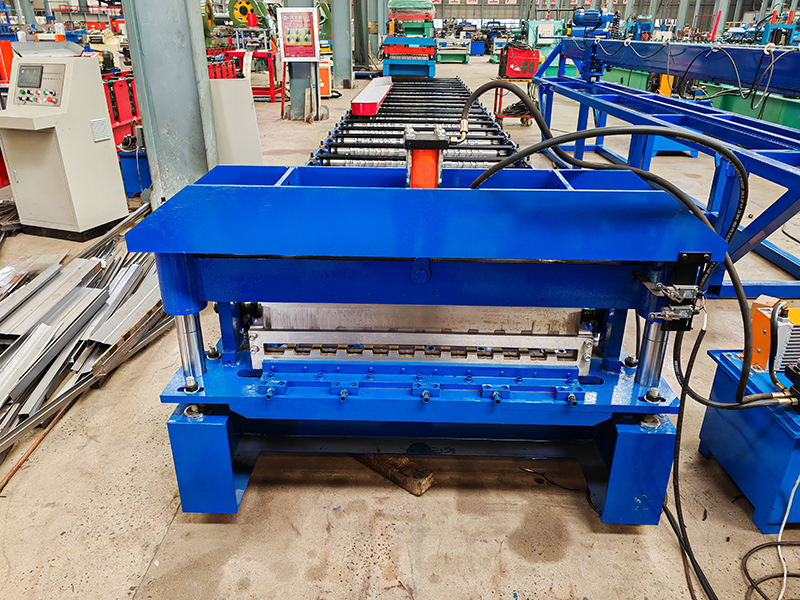

Shearing System1.Function: cutting action is controlled by PLC. The main machine
automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. 2.Power supply:electric motor 3.Frame: guide pillar 4.Stroke switch: non-contact photoelectric switch 5.Cutting after forming: cut the sheet after roll forming to required length 6.Length measuring: automatic length measuring
|
 |

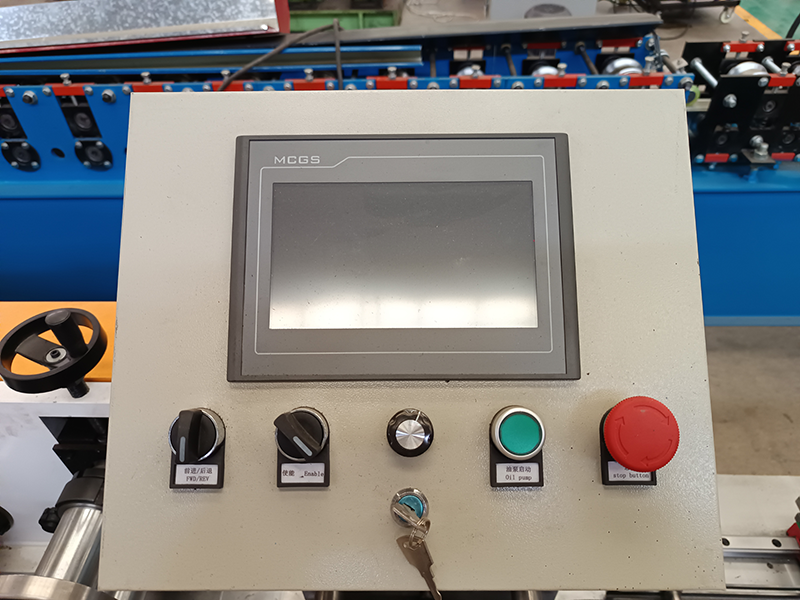

Electric Control System
The whole line is controlled by PLC and touch screen. The PLC system is with high-speed communication module, it is easy for operation. The technical data and system parameter can be set by touch screen, and it is with warning function to control the work of whole line. 1.Control the cutting length automatically 2.Automatic Length measurement and quantity counting (precision 3m+/-3mm) 3.Voltage:380V, 3 Phase，50Hz (As per buyer`s request)
|
 |
Linking machine |
COMPANY INTRODUCTION
Zhongke Roll Forming Machine Factory has over 20 years of experience in manufacturing roll-forming machines, with a skilled team of 100 workers and a 20,000 square meters workshop. it is known for its high-quality machines, personalized services and fiexdble options, including custom design and manufacturing At Zhongke Roll Forming Machine Factory, they are committed to providing personalized and flexible services to meet the specific needs of so many clients, they offer custom design and manufacturing services, Their product range includes Light Gauge Building Steel Frame Roll Forming Machines, Glazed Tile Forming Machines, Roof Panel and Wall Panel Molding Machines, C/Z Steel Machines, and more. zhongke is passionate about their work and committed to exceeding clients' expectations. Hope you for considering Zhongke Roll Forming Machine Factory!
OUR CUSTOMERS OF Zhongke Austrialian Door Roller Shutter Door Roll Forming Machine
OUR CUSTOMERS
Our products are sold to many countries and regions all over theworld, and we have established long-term cooperative relations with clients!
PACKAGING & LOGISTICS OF Zhongke Austrialian Door Roller Shutter Door Roll Forming Machine
FAQ
Q1.How to get a quotation?
A1) Give me the dimension drawing and thickness, it is very important.
A2) If you have requirements for production speed, power, voltage and brand, please explain in advance.
A3) If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q2. What's your payment terms and delivery time?
A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms like L/C are acceptable.
After we get down payment, we will arrange production. About 30-45 days for delivery.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 24 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. we have rich experience in transporting.
