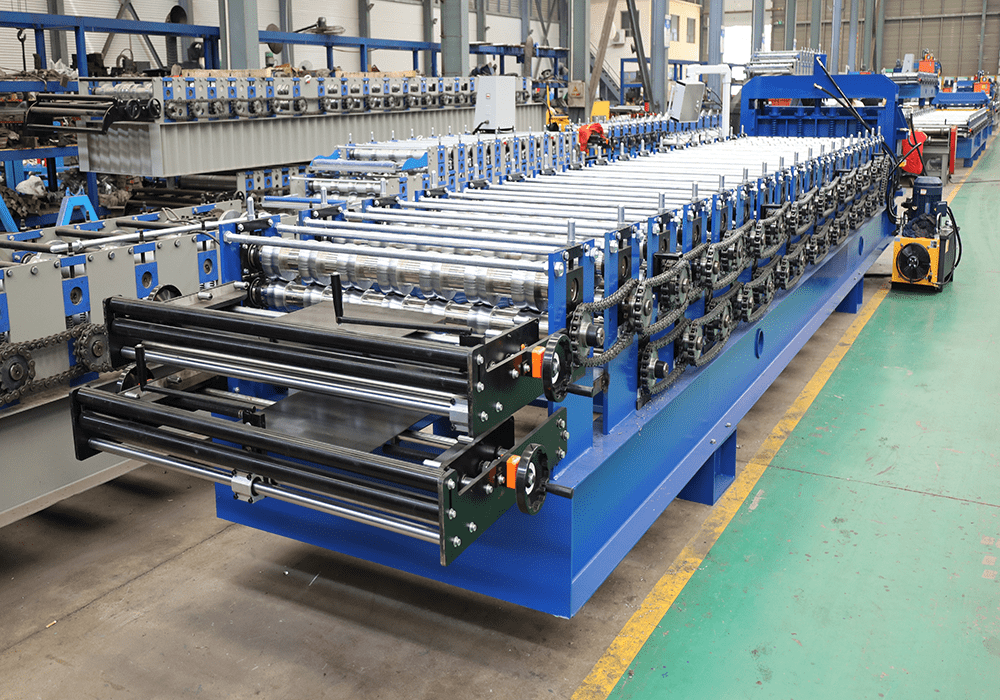

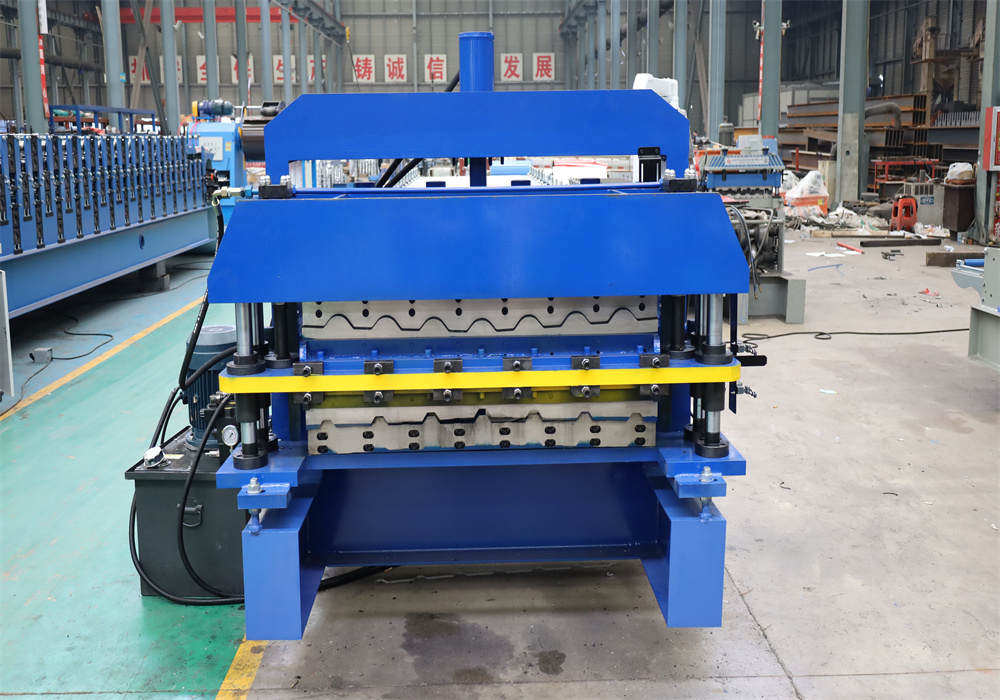

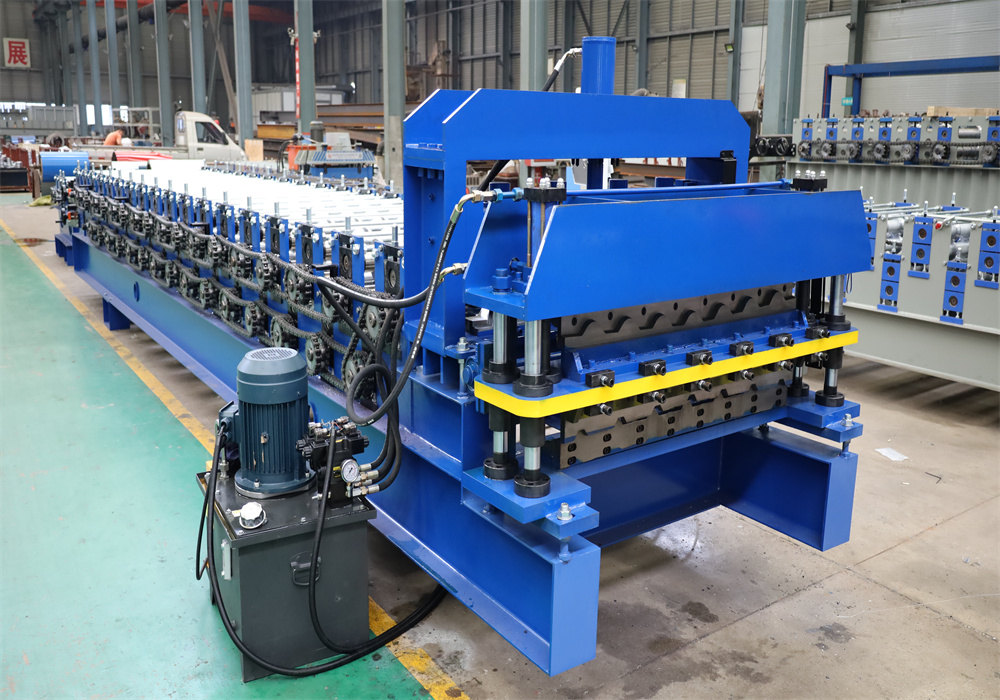

930 Banboo glazed tile and 1020 trapezoidal double layers roll forming machine
PRODUCT DESCRIPTION OF Zhongke Double Layers Roll Formimg Machine

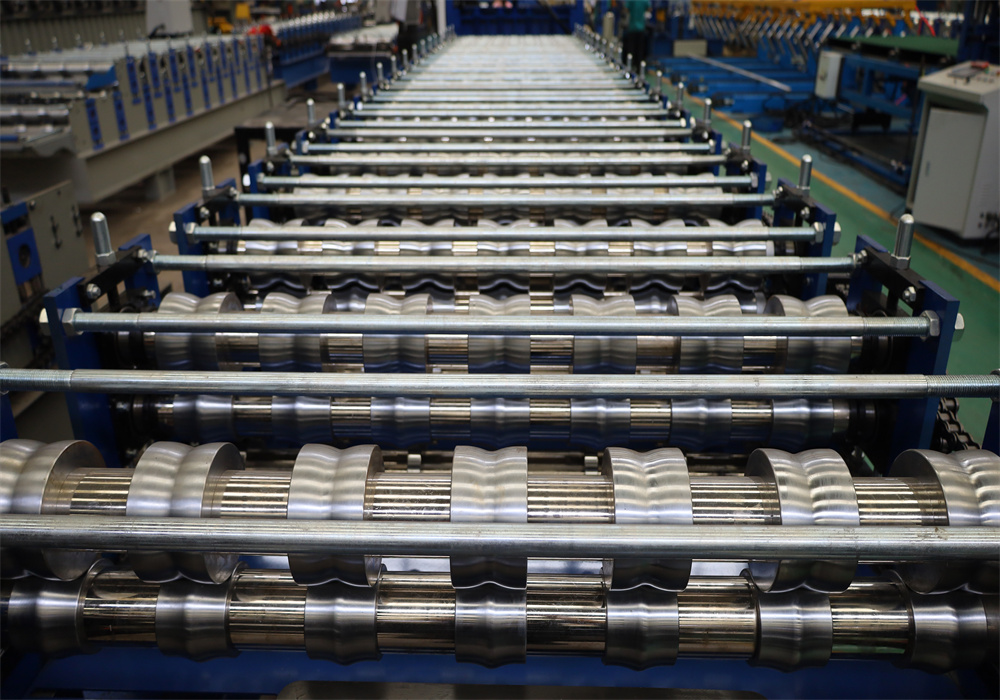

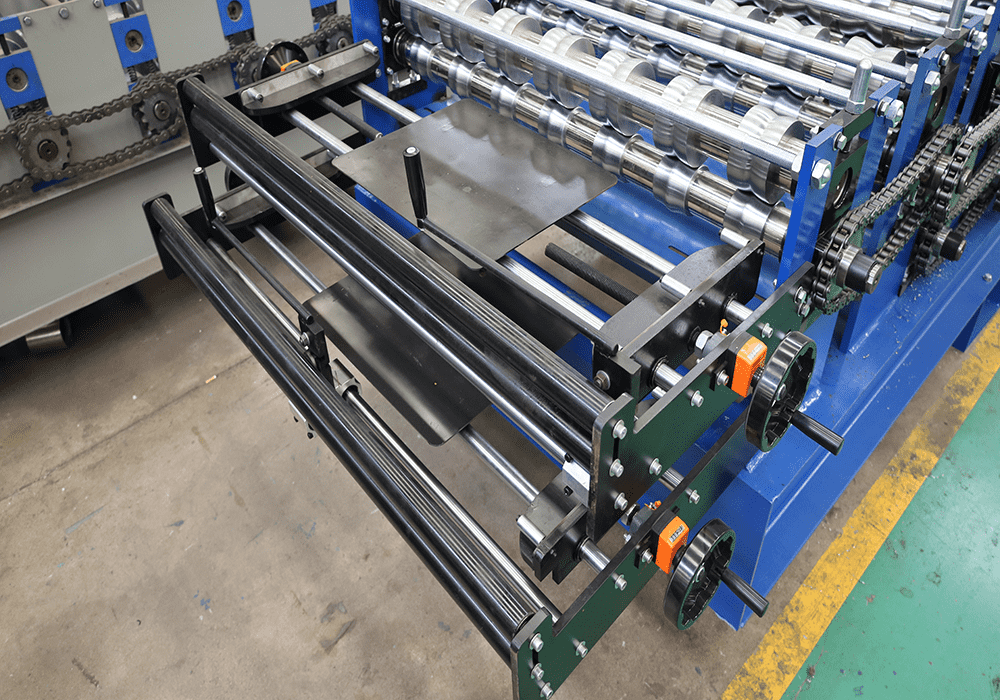

The upper layer of this machine is 930 bamboo glazed tile, the lower layer is 1020 trapezoidal roll forming machine. The machine shape high-end, electrical components using well-known Schneider, Delta, and Siemens Mitsubishi and so on. Feed system uses hand wheel feed accurate counting. The rolling system adopts 45 bearing steel with thick electroplating to effectively prevent rust. Shear system adopts Cr12Mov shear precision. The pump station has a digital display of oil and a small fan to cool the machine for longer running time.
PRODUCT DESCRIPTION
| item | Double Layers roll forming machine |
| Suitable to process | PPGI PPGL GI GL |
| Roller | UP 18 rolls /down 16 rolls |
| Dimensions | 7*1.7*1.8m |
| Thickness of the plate | 0.3-1.2mm |
| Productivity | 0-20m/min |
| Material of the cutting blade | Cr12Mov |
| Diameter of the roller | Φ70mm |
| Weight | About 6500kgs |
|
Main structure of the machine |
350H beams |
| Processing precision | Within 1.0mm |
|
Side panel of machine |
16mm |

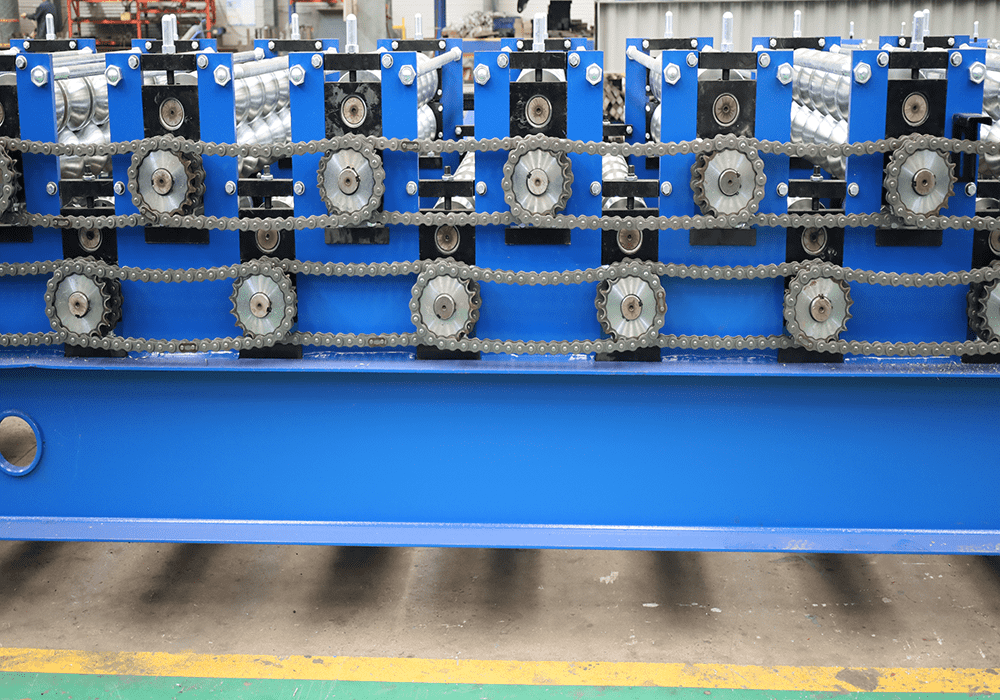

| Chain Wheel and Cycle Chain | 1.2 Inch |
| Voltage | 380V 50Hz 3phases or as customer's need |
| Control system | PLC control (Delta) |
| Frequency system | Delta |
|
Drive mode |
Motor driver |

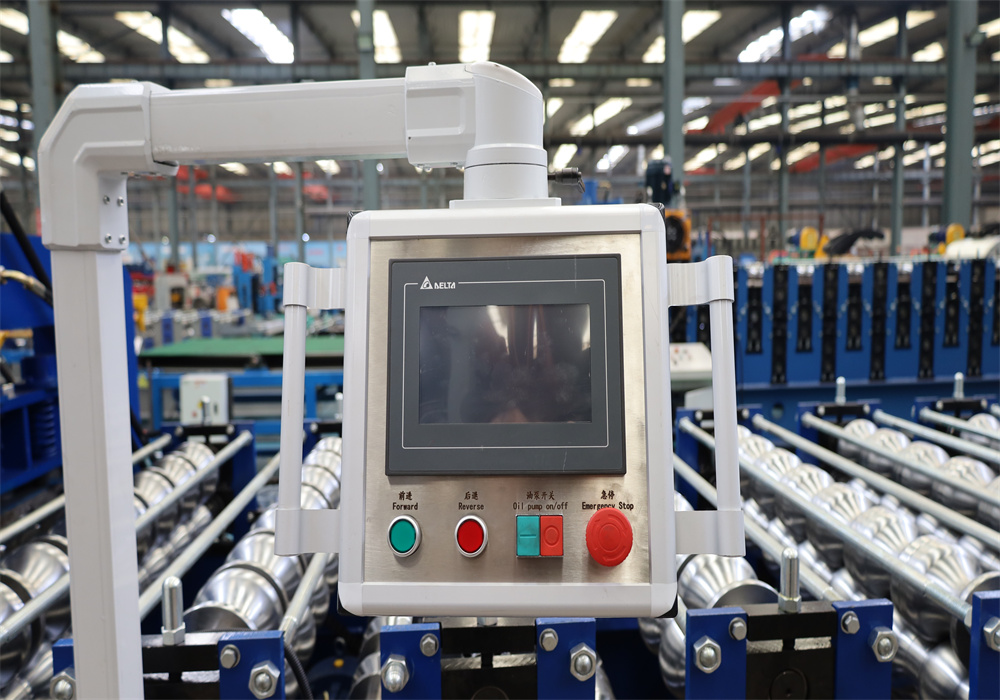

| Touch screen | Delta |
| Rolling materials | 45# forging steel with chromium plate |
| Length Tolerance | ±2mm |

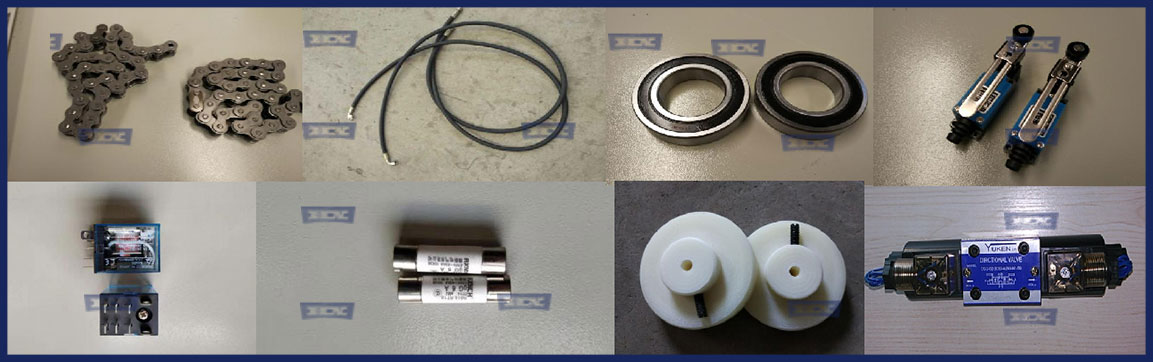

Free accessories
COMPANY INTRODUCTION
Zhongke Roll Forming Machine Factory has over 20 years of experience in manufacturing roll-forming machines, with a skilled team of 100 workers and a 20,000 square meters workshop. it is known for its high-quality machines, personalized services and fiexdble options, including custom design and manufacturing At Zhongke Roll Forming Machine Factory, they are committed to providing personalized and flexible services to meet the specific needs of so many clients, they offer custom design and manufacturing services, Their product range includes Light Gauge Building Steel Frame Roll Forming Machines, Glazed Tile Forming Machines, Roof Panel and Wall Panel Molding Machines, C/Z Steel Machines, and more. zhongke is passionate about their work and committed to exceeding clients' expectations. Hope you for considering Zhongke Roll Forming Machine Factory!
PRODUCT LINE
OUR CUSTOMERS
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company.Had very greatful experience.
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
Q9: Will you deliver the right goods as ordered? How can I trust you?
A9: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
