2024 ZKRFM Automatic Ridge Tile Automatic Cold Roll Forming Machine
MAIN SELLING POINTS
We have the following features:
1.Integrated Manufacturing and Trading. Our company operates as a combined manufacturer and trader, offering direct access to factory pricing and a comprehensive suite of services.We have a strong presence in the global market, ensuring that we stay up-to-date with the latest trends and customer needs.
2.Full Automation.Equipped with advanced CNC control systems, our press brake machine automates the entire bending process, from sheet loading to finished product.Features automatic tool change and angle adjustment, reducing setup times and increasing throughput.
3.Stability and DurabilityConstructed with high-grade materials and precision-engineered components for maximum stability and minimal maintenance.Robust frame design and tight tolerances ensure consistent performance over long periods of use.
4.High Efficiency:Rapid bending speeds and quick tool changes significantly increase production rates.Energy-efficient motors and optimized hydraulic systems reduce operating costs.
5.User-Friendly Interface:Intuitive control panel with touch screen interface for easy programming and monitoring.Real-time data tracking and analysis for improved quality control and process optimization.
6.Customizable Options:Tailored solutions to meet specific customer requirements, including custom tooling and software configurations.Compatibility with a variety of materials and thicknesses for flexibility in application.
7.Safety Features:Comprehensive safety protocols, including light curtains and emergency stop buttons, ensure operator safety.Compliance with international safety standards for peace of mind.
Product details of zhongke ridge tile forming machine
The Zhongke of The Ridge Tile Automatic Cold Roll Forming Machine is a high-efficiency, fully automated solution designed for the production of high-quality ridge tiles. With integrated manufacturing and trading capabilities, this machine offers precision roll forming, rapid tool changes, and a user-friendly digital control panel. Constructed with durable materials and featuring a compact design, it ensures stable and efficient operation. The machine is capable of processing a variety of materials, providing consistent and precise results. Ideal for construction projects, it streamlines the production process and maximizes productivity.

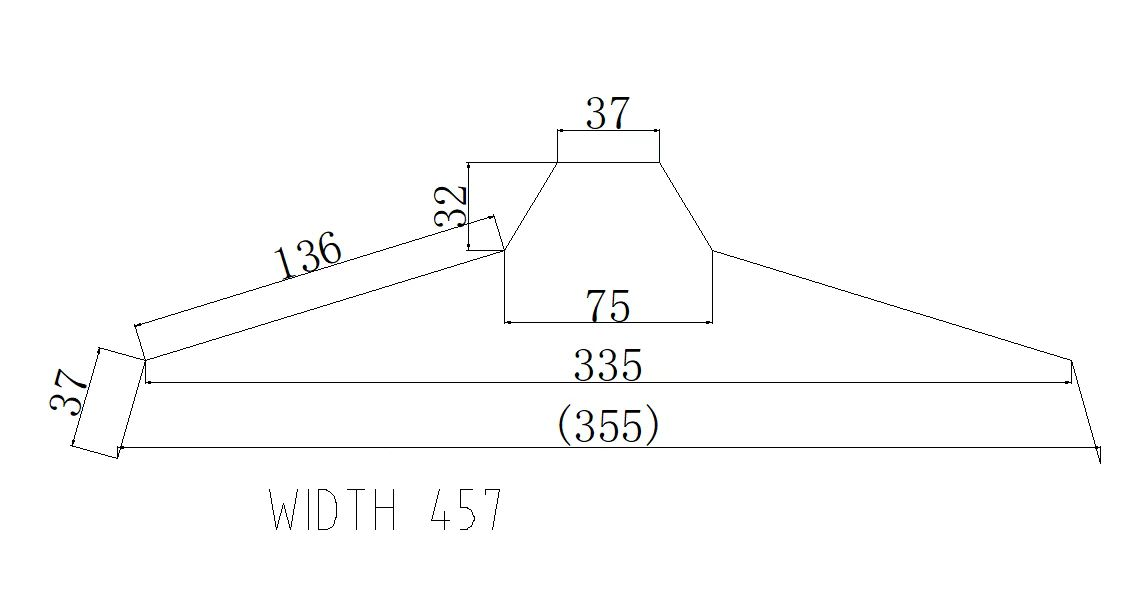

Product standard drawings and parameters
| Type | Tile Forming Machine |
| Tile Type | Colored Glaze Steel |
| Production Capacity | 20-25m/min |
| Rolling thinckness | 0.3-0.8mm |
Other Attributes
| Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Home Use, Construction works |
| Showroom Location | None |
| Place of Origin | HEB |
| Weight | 4800 kg |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Feeding width | 1200mm |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Marketing Type | New Product 2024 |
| Warranty of core components | 1 Year |
| Core Components | Pressure vessel, Motor, Pump, PLC |
| Condition | New |
| Use | ROOF |
| Brand Name | HN |
| Voltage | 380V 50Hz 3phases or as your requirement |
| Dimension(L*W*H) | 8700*1500*1500mm |
| Product name | Ridge tile Forming Machine |
| Usage | Wall Panel |
| Control system | PLC(detla) System |
| Shaft material | 45# Steel |
| Cutting type | Automatic Hydraulic Cutting |
| Color | Custimized |
| Profiles | corrugated |
| Suitable material | GI GL PPGI PPGL |
| Thickness | 0.3mm-0.8mm |
| Function | Roof Usage |

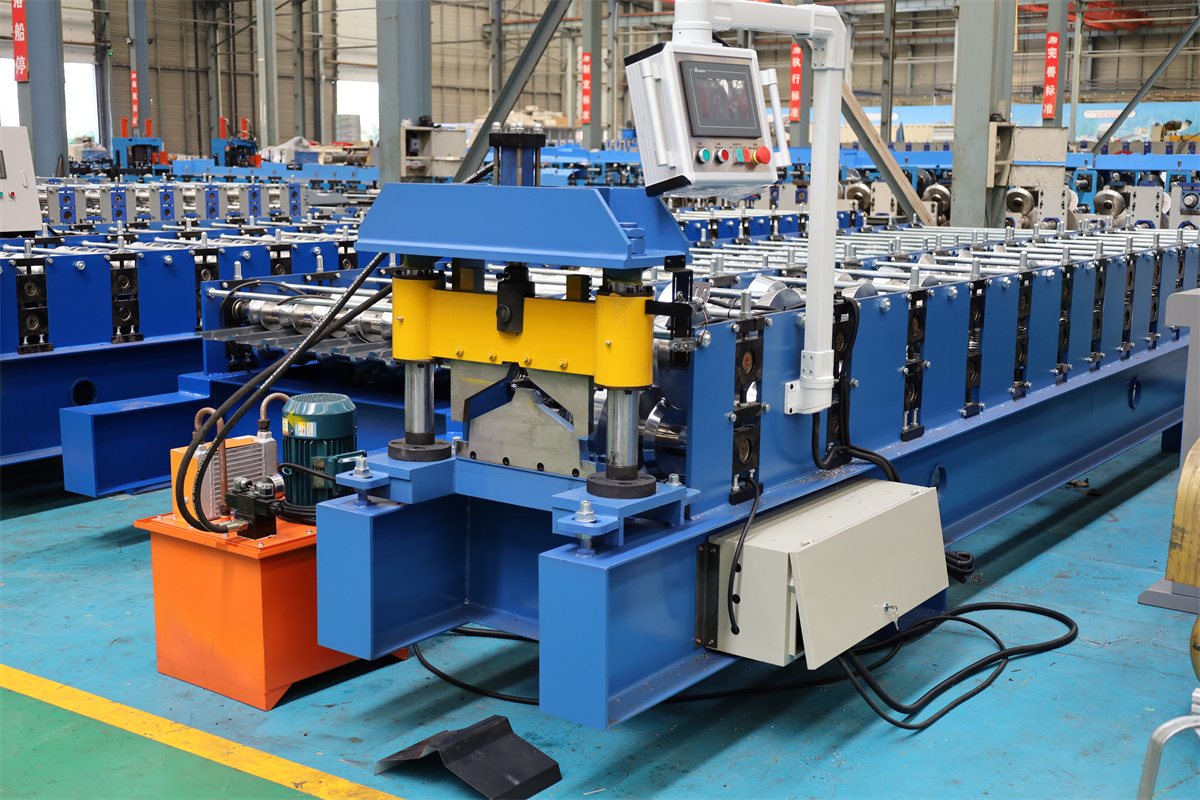

In a busy workshop, the Ridge Tile Automatic Cold Roll Forming Machine stands out, its sturdy frame housing high-hardness rollers made from imported DC53 material. A coil of metal is fed into the machine, transformed through the rollers into precise ridge tiles. The hydraulic cutting system, powered by a 5.5KW motor, ensures clean and accurate cuts. Finished tiles stack neatly, ready for installation on rooftops, showcasing the machine's efficiency and quality output.
Machine detail of RIDGE TILE forming machine
 |
|
|

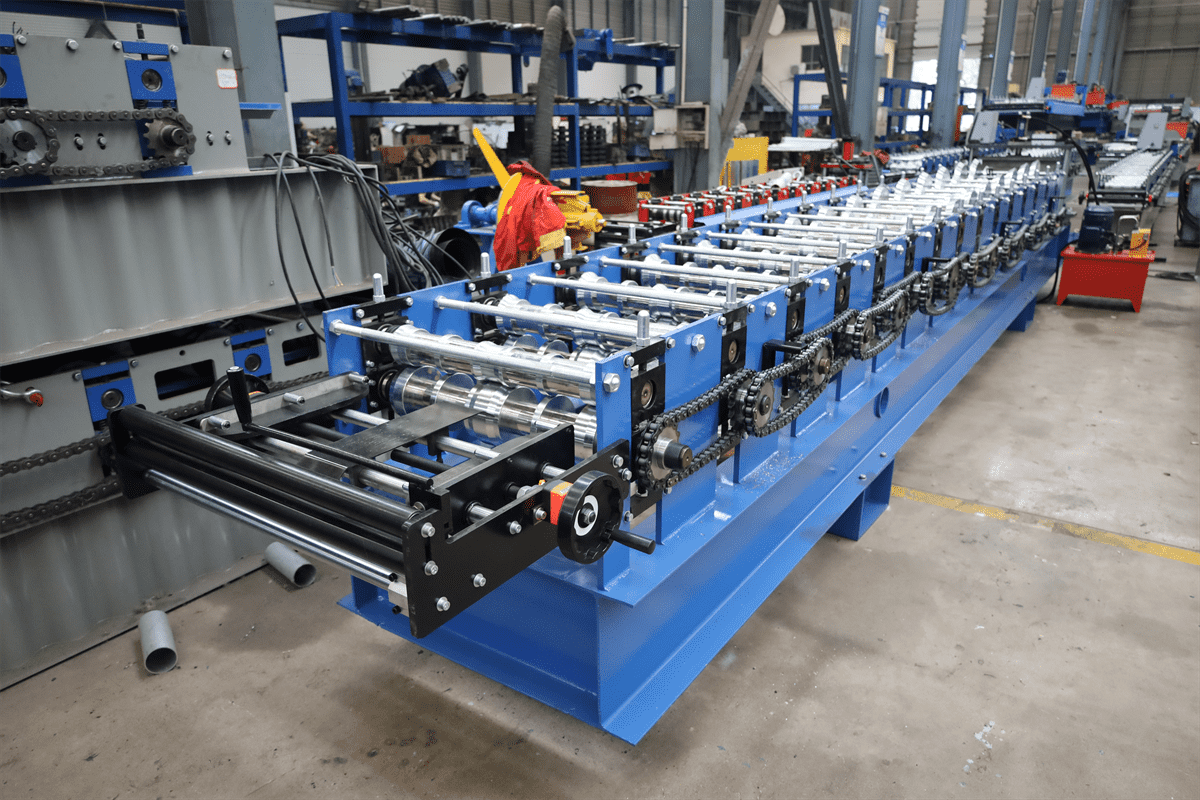

300 H Frame The 300 H Frame is an integral part of our roll forming machine, providing robust support and stability. It ensures precise alignment and consistent product quality during the production process. |
|
 |

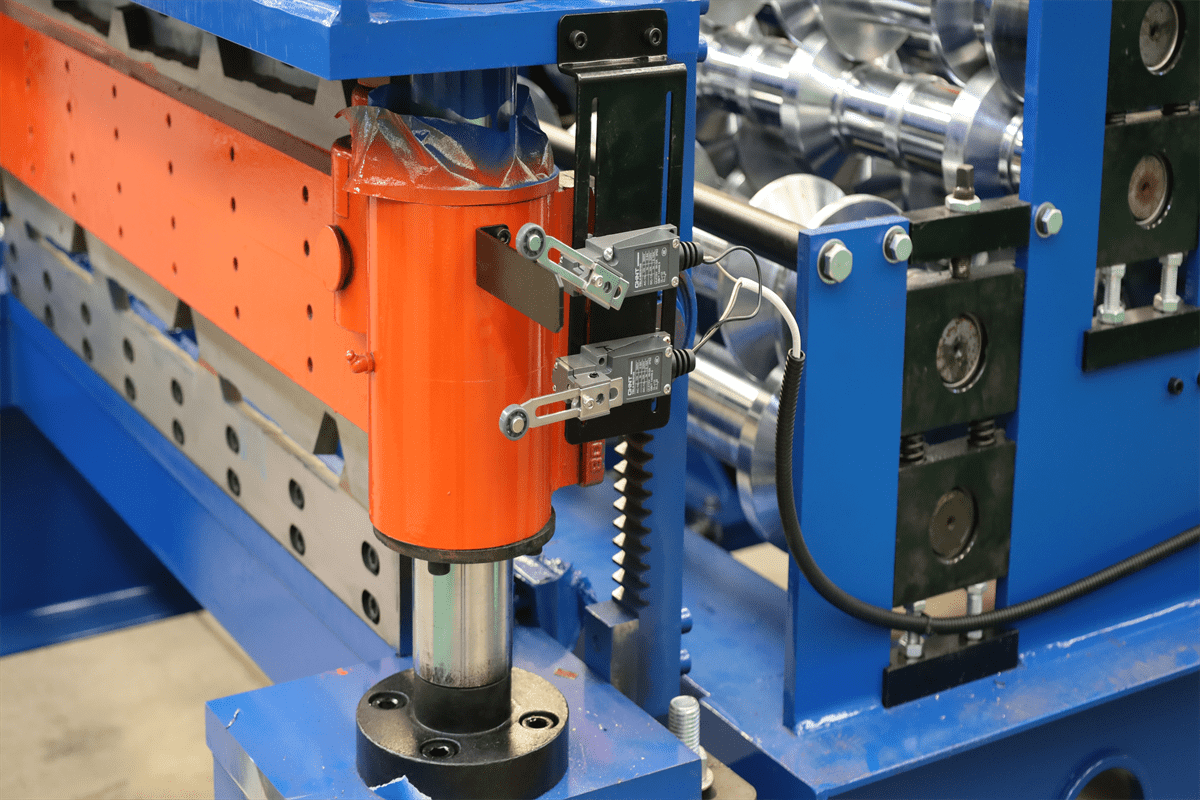

Travel switch The Travel Switch is an essential component of our roll forming machine, ensuring precise and automated positioning of materials. It enhances efficiency and accuracy in the production process, making it a valuable tool for our customers. |
|
High strength top screws The high hardness roller used in our roll forming machines is made from imported DC53 material, ensuring exceptional durability and wear resistance. This material is known for its excellent toughness and heat treatment properties, making it ideal for demanding industrial applications. |
 |
|

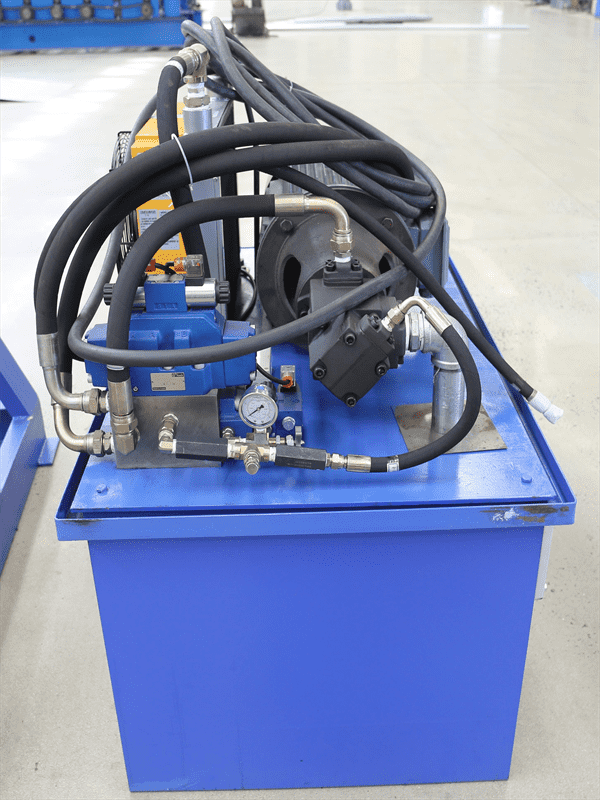

Hydraulic pump station The Hydraulic Pump Station is a critical component of our roll forming machine, providing precise hydraulic power to shape and mold materials, ensuring efficient and accurate production processes. |
 |
 |

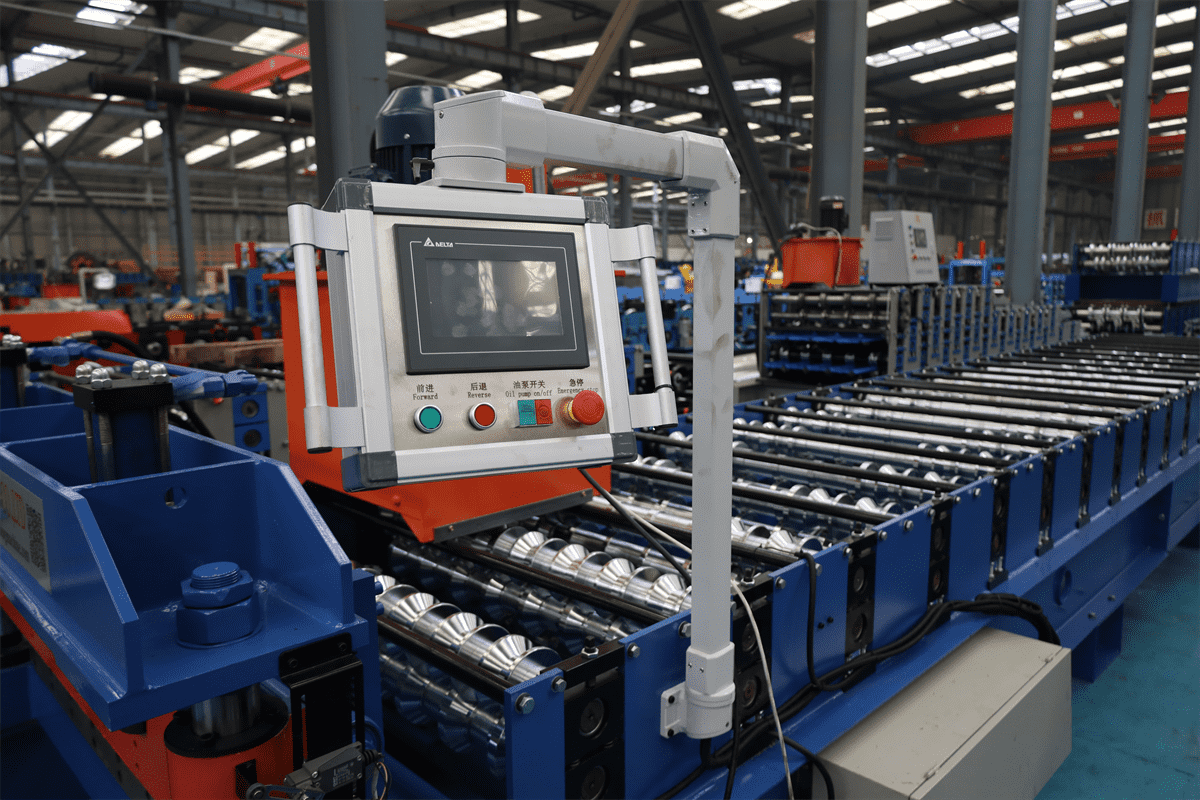

PLC control box Our PLC control box seamlessly integrates with your roll forming machine, offering precise control and automation. Streamline operations, optimize production, and ensure consistent, high-quality output with ease. |
 |

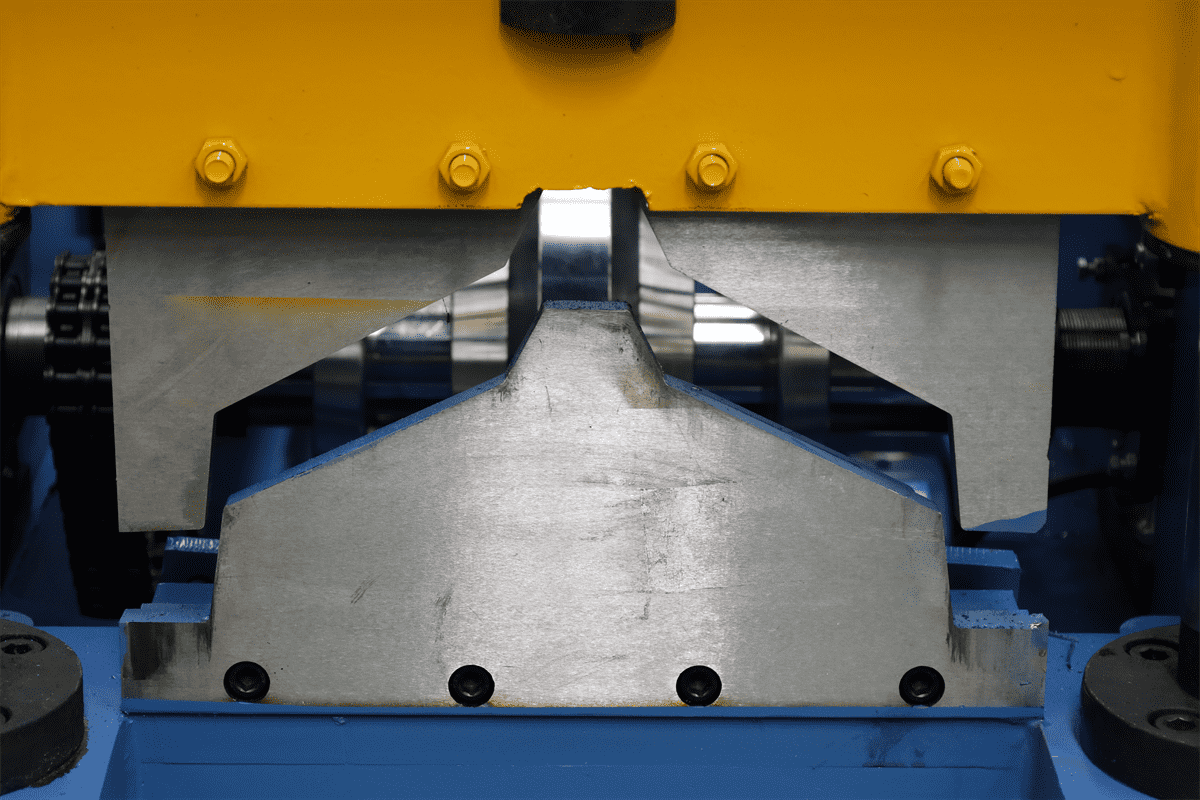

High strength top screws The cutting mechanism in our roll forming machines utilizes a hydraulic cutting system, which provides precise and efficient cutting of the formed metal profiles. This system is designed to ensure clean, burr-free cuts, enhancing the overall quality of the finished products. |
COMPANY INTRODUCTION
For two decades, Zhongke Rolling Machinery Factory has been deeply rooted in the fertile ground of rolling technology, bringing together a team of over a hundred master craftsmen. Our modern facility spans over 20,000 square meters, equipped with state-of-the-art machinery, painting a grand picture of industrial manufacturing excellence.
We are renowned for our high-end machinery, personalized service approach, and flexible solutions tailored to meet diverse client needs. Specializing in transforming client visions into unique masterpieces, whether it's lightweight yet robust steel structures, or the fusion of classical and contemporary beauty in glazed roof tiles, we provide comprehensive solutions for roofing and wall cladding applications, as well as efficient C/Z-type steel production lines. With a rich and diverse product portfolio, Zhongke skillfully crafts the colorful dreams of the architectural world.
Driven by passion, we strive to exceed expectations with every project, ensuring that every collaboration is marked by outstanding achievement. Today, we extend a warm invitation to join forces with Zhongke on a journey of innovation and excellence, opening a new chapter of partnership and creating a brilliant future together.
OUR CUSTOMERS OF Zhongke Double Layer Roll Forming Machine
PACKAGING & LOGISTICS OF Zhongke Double Layer Roll Forming Machine
FAQ
Q1: How to play order?
A1：Inquiry---Confirm the profile drawings and price ---Confirm Thepl---Arrange the deposit or L/C---Then ok
Q2: How to visit our company?
A2: Fly to Beijing airport: By high speed train from Beijing Nan to Cangzhou Xi(1 hour),then we will pick you up.
Fly to Shanghai Hongqiao airport:By high speed train from Shanghai Hongqiao to Cangzhou Xi(4 hour),then we will pick you up.
Q3: Are you manufacturer or trading company?
A3: We are manufacturer and trading company.Had very greatful experience.
Q4: Do you provide installing and training overseas?
A4: Overseas machine install and worker training services are optional.
Q5: How is your after sales support?
A5: We provide technical support on line as well as overseas services by skillful technicians.
Q6: How does your factory do regarding quality control?
A6: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q7: How can I trust you that machines pasted testing running before shipping?
A7: (1) We record the testing video for your reference. Or,
(2) We welcome your visit us and test machine by yourself in our factory
Q8: Do you sell only standard machines?
A8: No. Most machines are customized.
