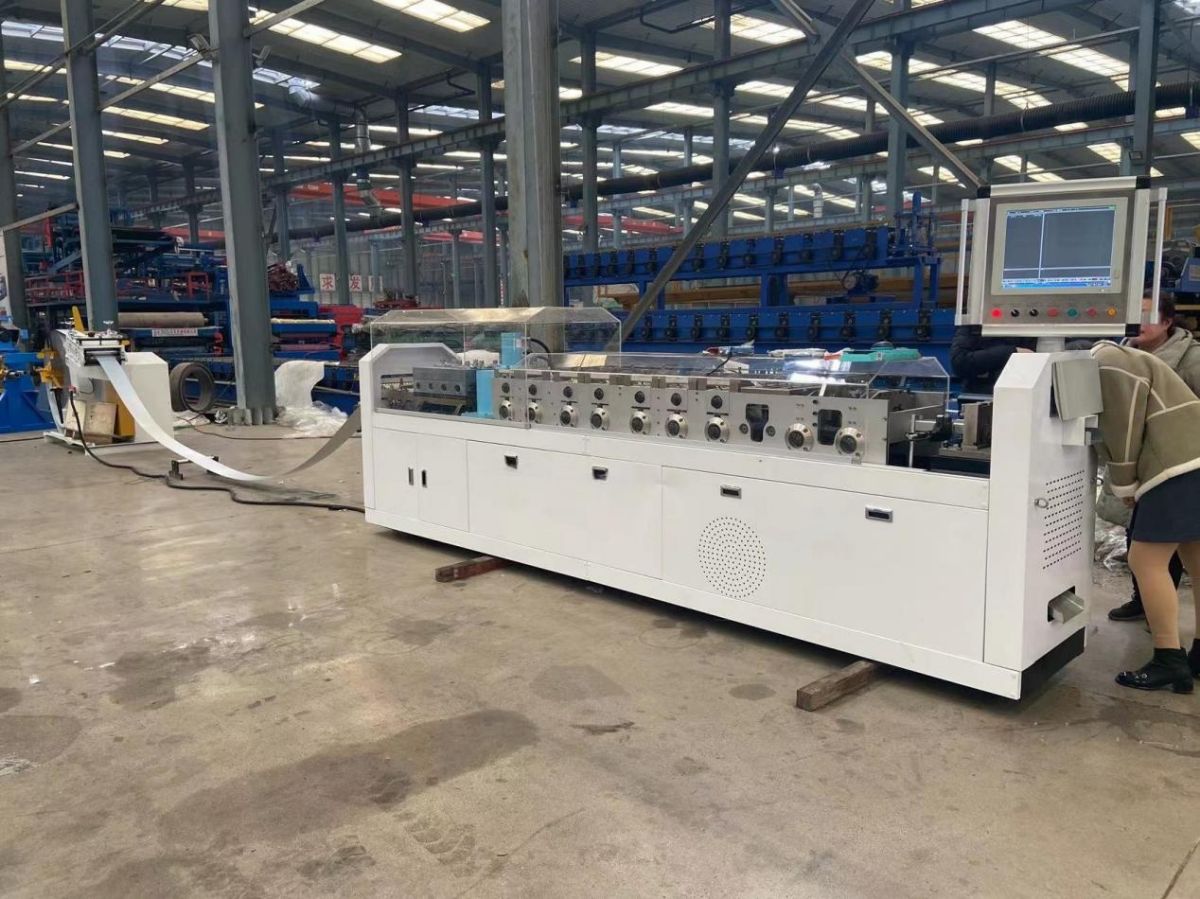

Light Gauge Steel Frame Machine
There are many types of light steel villa keel machines on the market, such as C75, C89, C140, and C300. In general, light steel villas below 4 floors in the market mostly use C89 light steel villa keel machine to process aluminum-zinc steel belts.But you can customize it according to your needs.And this machine is for produce C89 steel frame for villa house making.

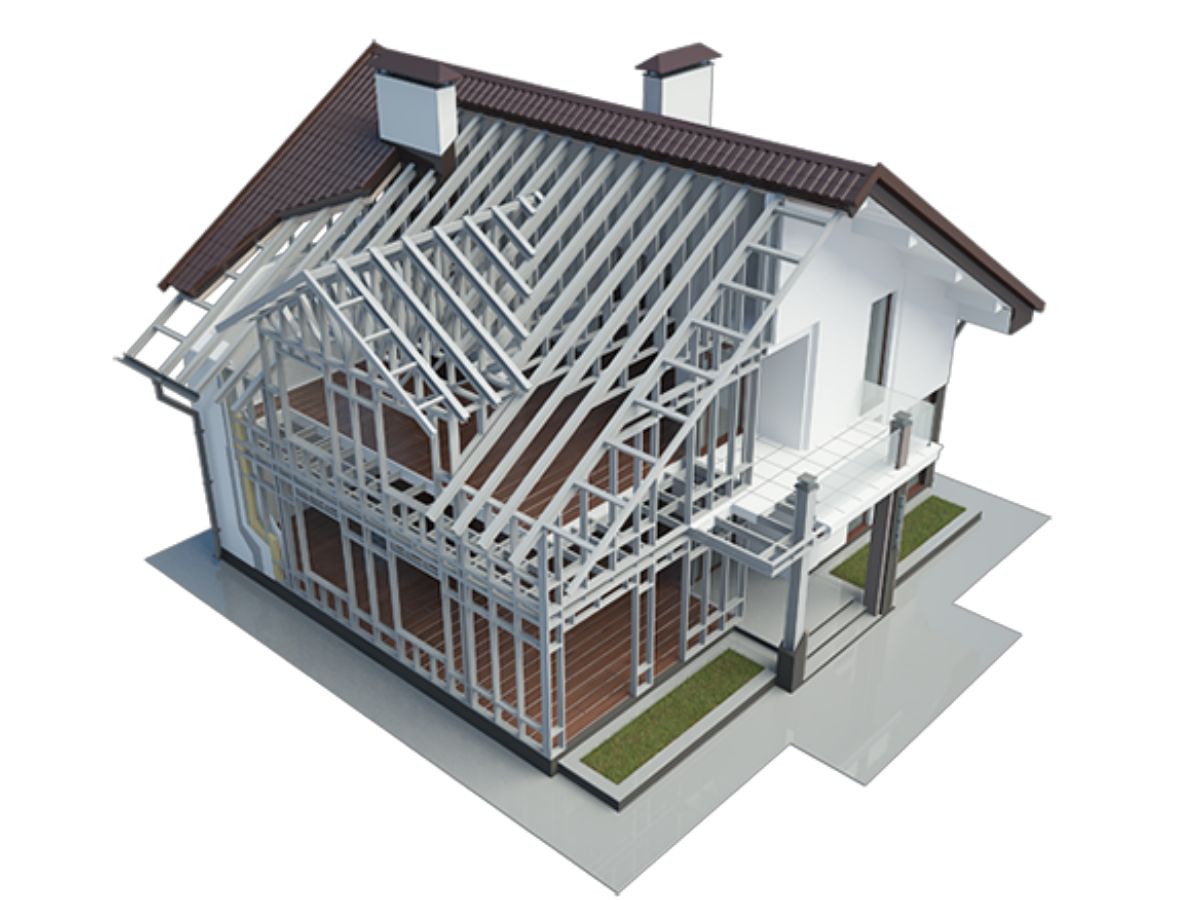

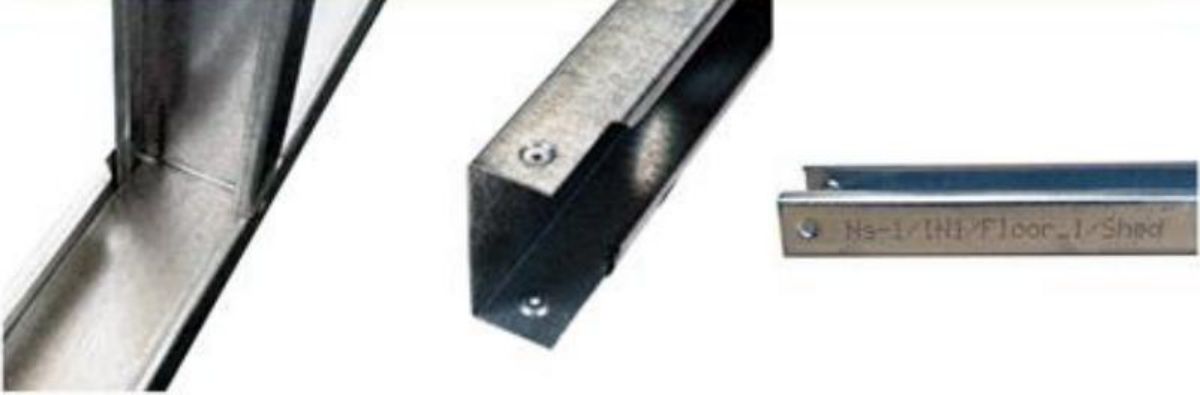

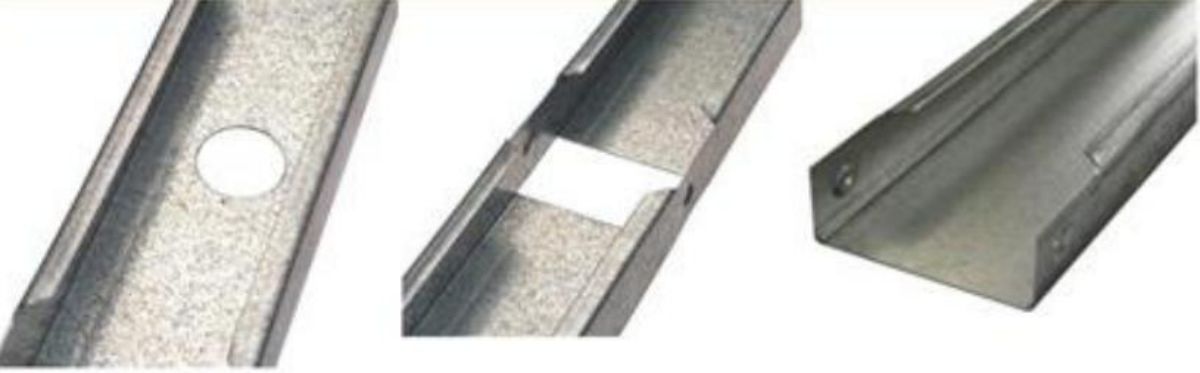

The application of finished products C89 chanel for your reference.
|
Technical parameters |
|

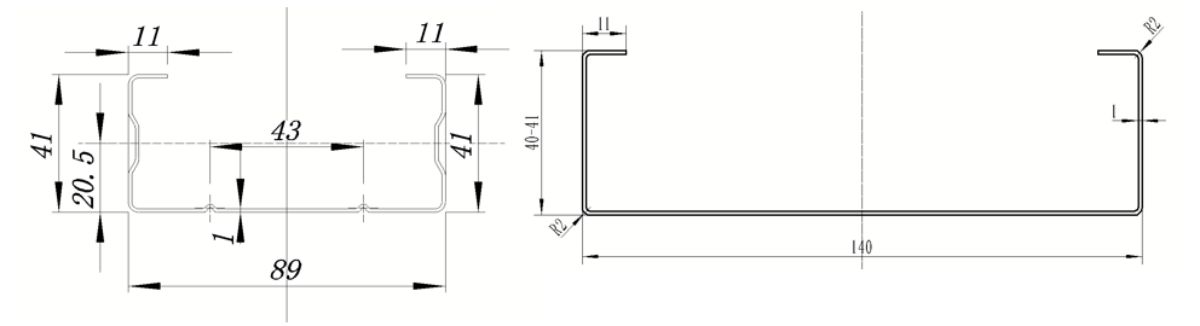

| Size | C89 |
| Dimension | 4200*800*1100mm |
| Main Servo Motor Power | 7.5KW |

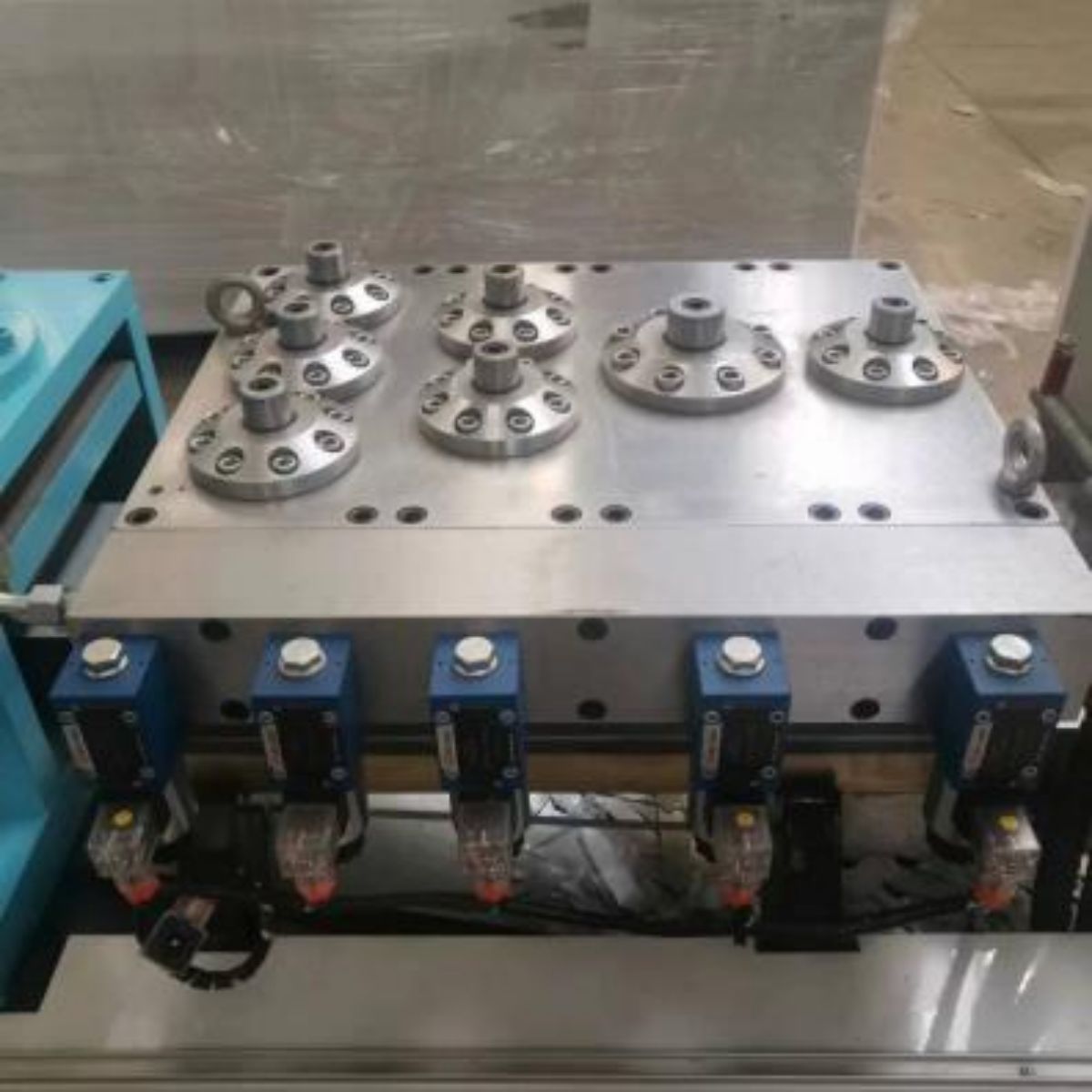

| Hydraulic Motor | 7.5kw |
| Forming Steps | 9Steps |
| Forming Speed | 4-5tons/8hours |
| Voltage | 380V/50HZ/3PH |
| Effective Width | 89mm |
| Material Width | 174mm |
| Flange Height | 38mm |
| Lip | 9mm |
| Material Thickness | 0.6-1.2mm |
| Tolerance for cutting and punching | ±0.5mm |
| Tolerance for forming | ±0.75mm |

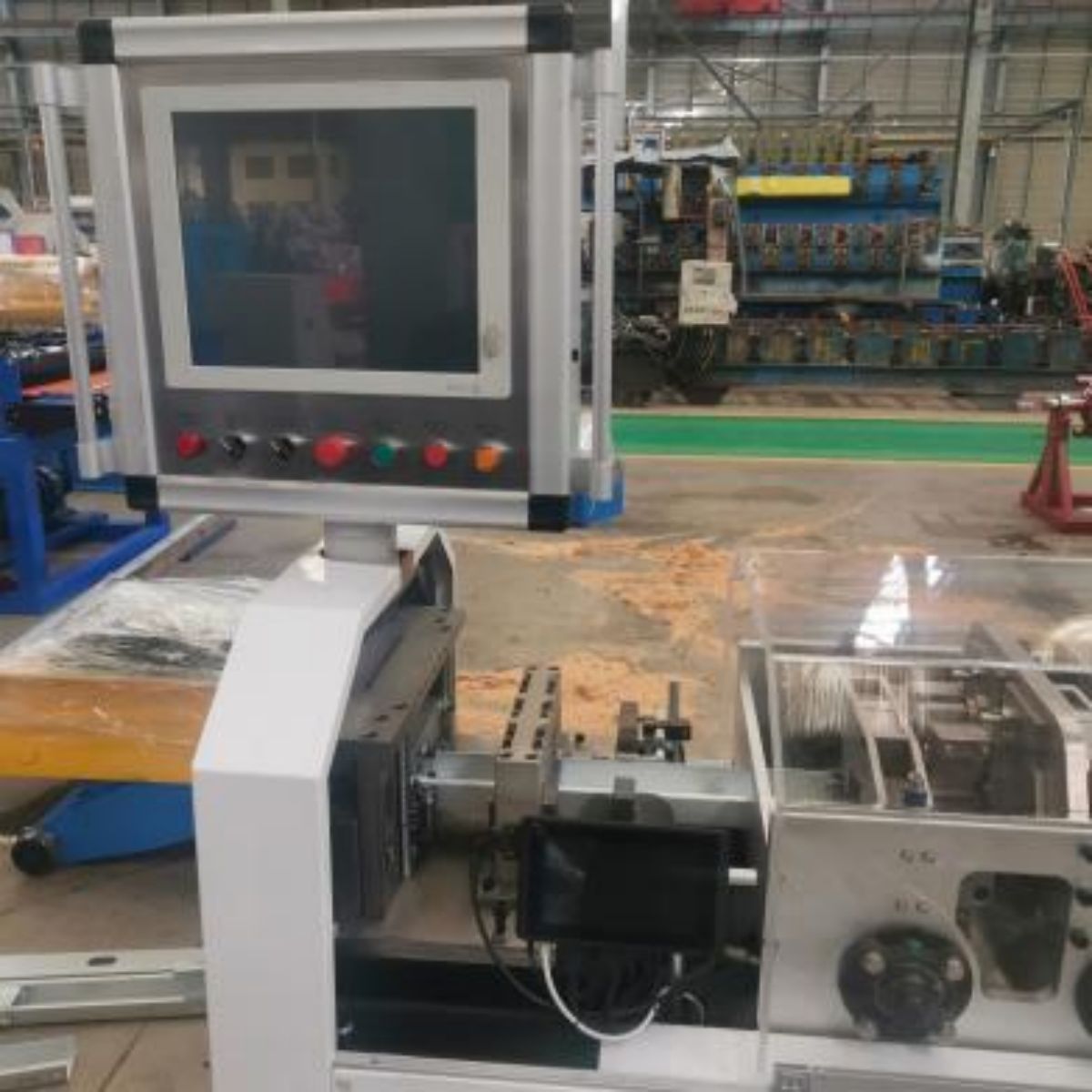

| Control System | IPC Computer Controlling System |
| Design Software | Vertex Software |

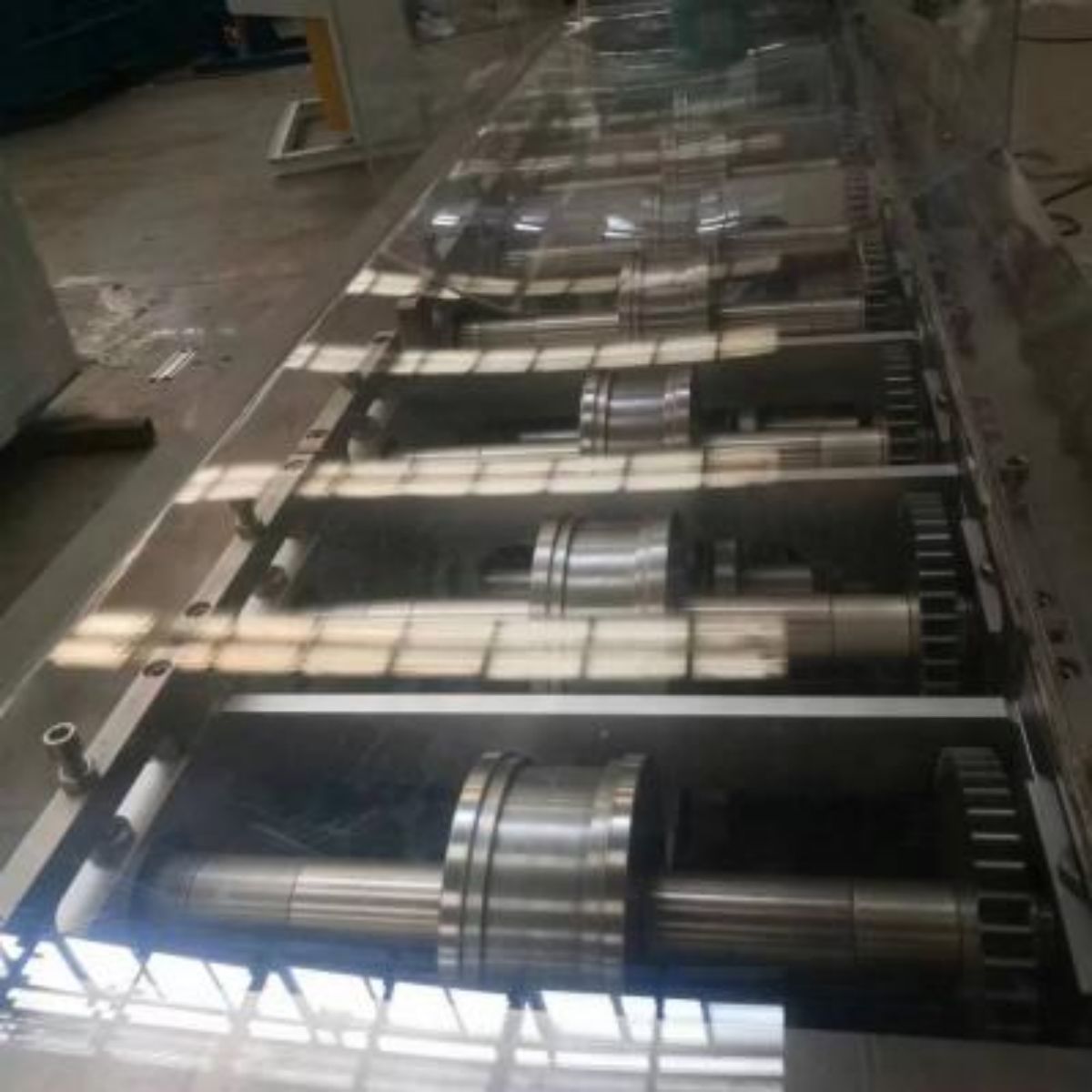

| Material for All Roller | SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers |
| Material for Shaft | SKD-11 |
| Material for Cutter | SKD-11 |
Why choose Steel Framing
There are many reasons why steel framing has come to the forefront as one of the best and most feasible alternative building
materials for residential and commercial construction. Steel is a Superior Construction Material.
1. Highest strength-to-weight ratio of any building material.
2. 100% recyclable.
3. 68% industry recycling rate.
4. Non-combustible - does not burn nor contribute fuel to the spread of a fire.
5. Inorganic - will not rot, warp, split, crack or creep.
6. Dimensionally stable - does not expand or contract with moisture content.
7. Consistent material quality - produced in strict accordance with national standards, no regional variations.
