0.5-3mm Slitting Machine for GI and PPGI stainless steel

Short Description:

0.5-3mm Steel Coil Cut to Length & Slitting Machine for GI and PPGI stainless steel is used to slit the wide coil into strips as request,and slitting width is adjustable according to different request.It can be used as the Cut to length line too,the length is adjustable too.
1. Raw material coil width: 1000-1500mm or as request
2. Raw material thickness: 0.5-3mm or as request
3. Slitting strip width: as per request
4. Cutting length: as per request


Product Detail

Product Tags

PRODUCT DESCRIPTION

0.5-3mm Steel Coil Cut to Length & Slitting Machine for GI and PPGI stainless steel is used to slit the wide coil into strips as request,and slitting width is adjustable according to different request.It can be used as the Cut to length line too,the length is adjustable too.
1. Raw material coil width: 1000-1500mm or as request
2. Raw material thickness: 0.5-3mm or as request
3. Slitting strip width: as per request
4. Cutting length: as per request

Formed Material PPGI,GI,AI
Material Thickness 0.5-3mm
Straightener type 4HI straigthening type
Straightener roller 13 rollers,6 up 7 down with one pair of feeding roller
Power 11kw
Drive method 350 H steel
Drive Gear and chain transmission
Slitting blade 4pcs or more as request
Blade material Cr12 mov with quenched treatment

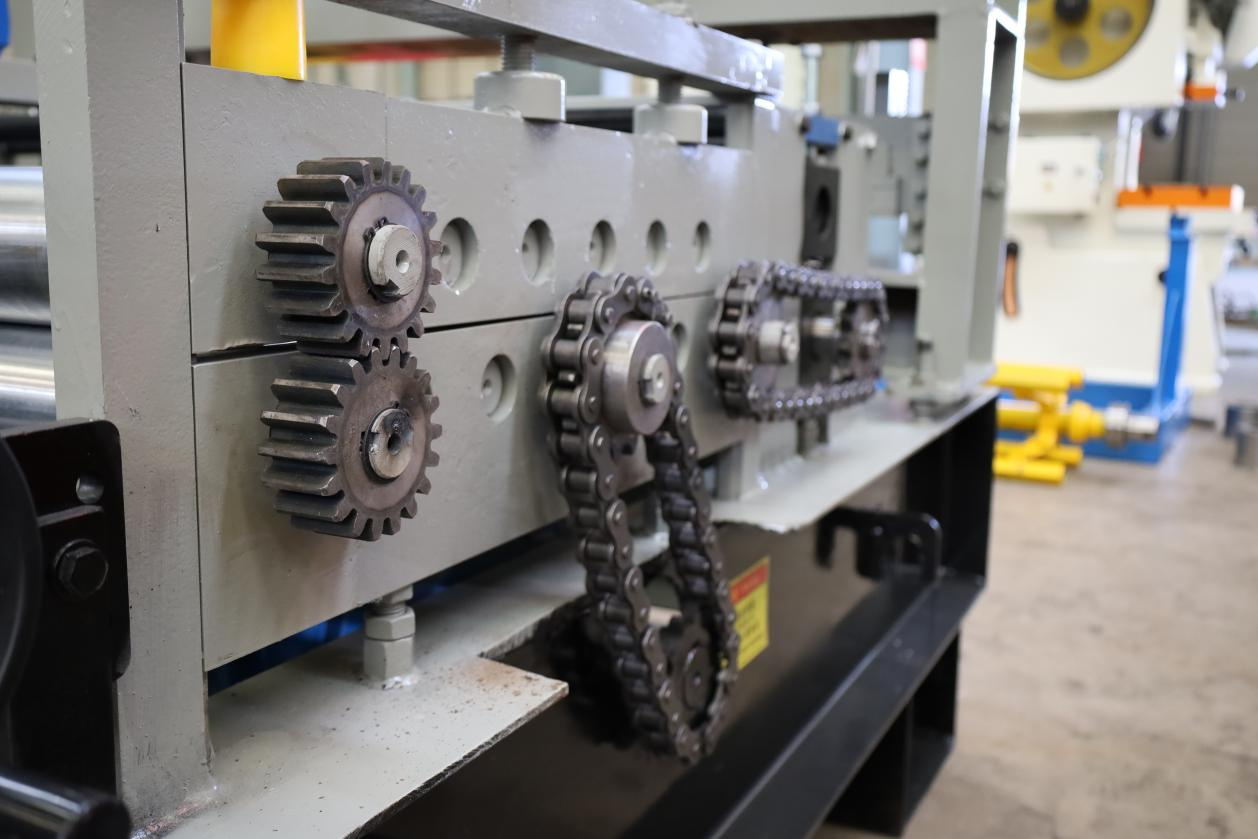

asd (1)

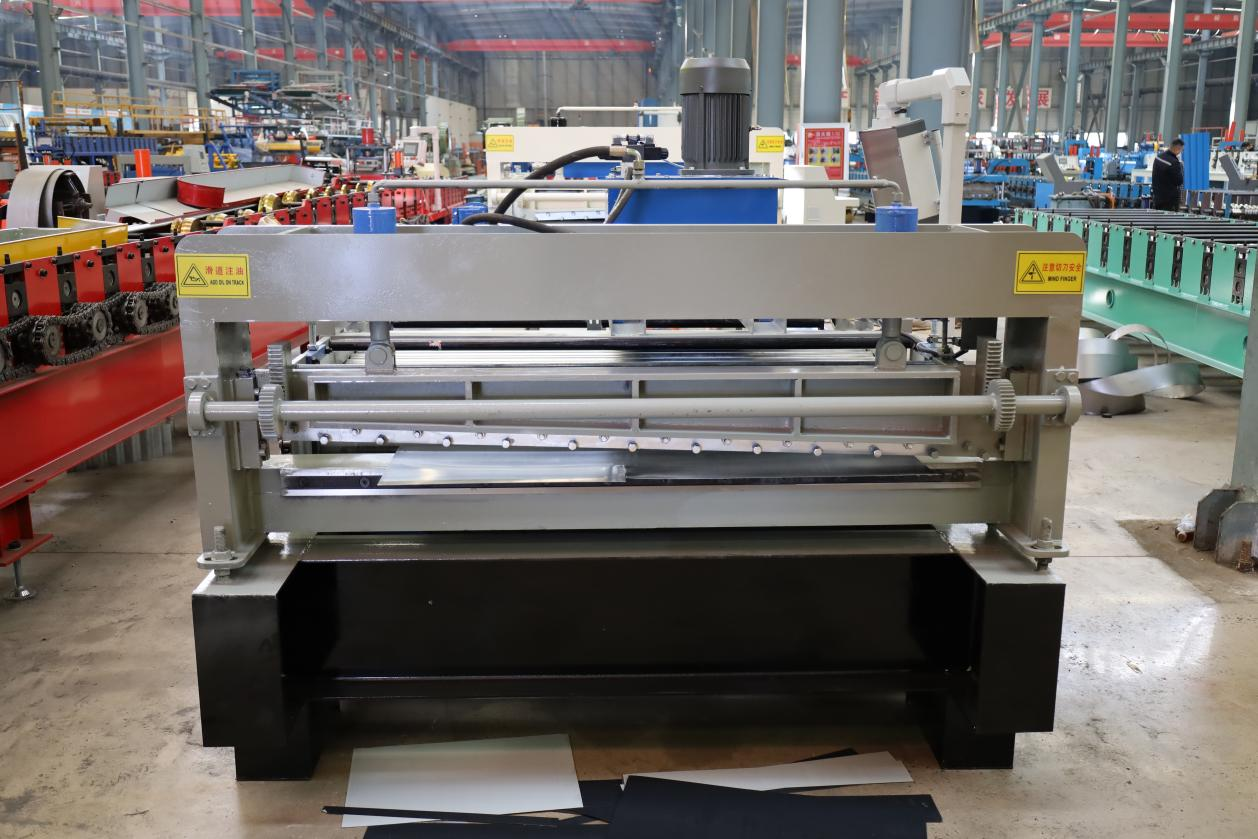

asd (2)

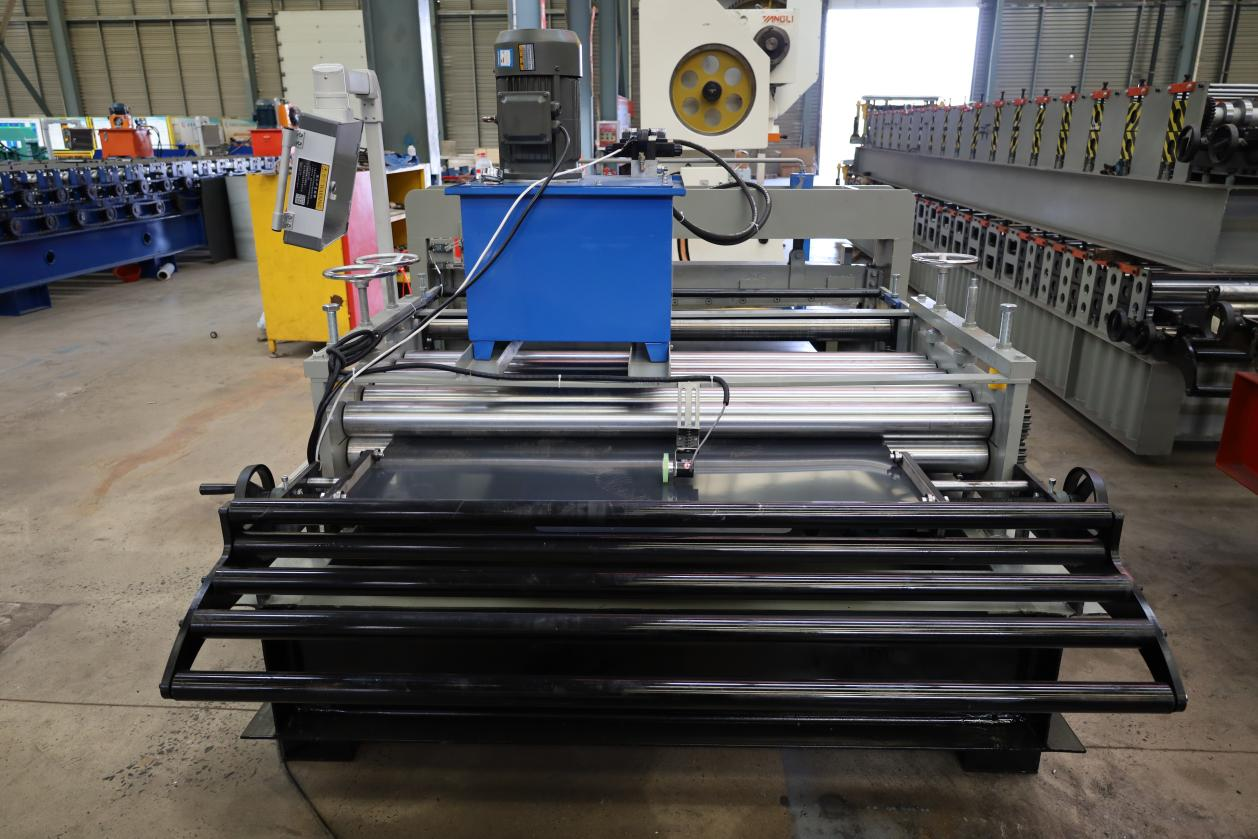

asd (3)

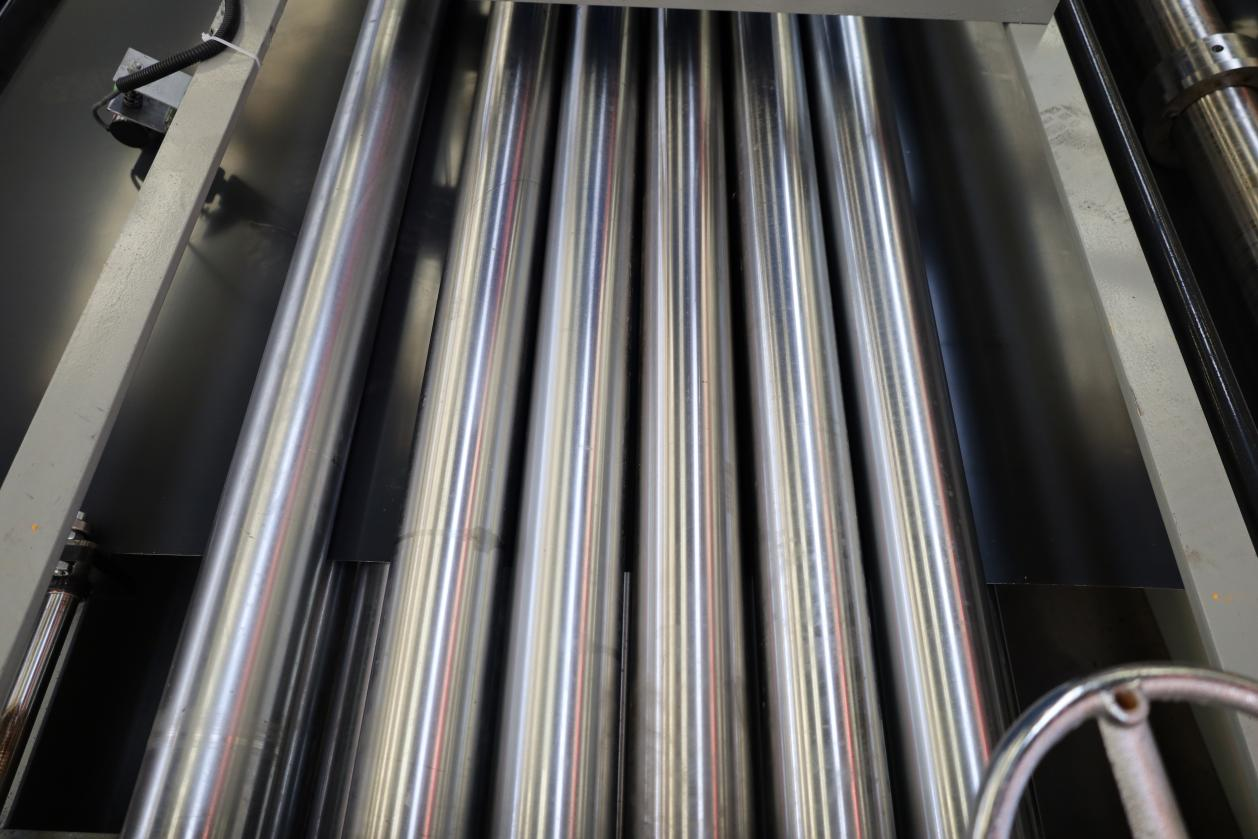

asd (4)
